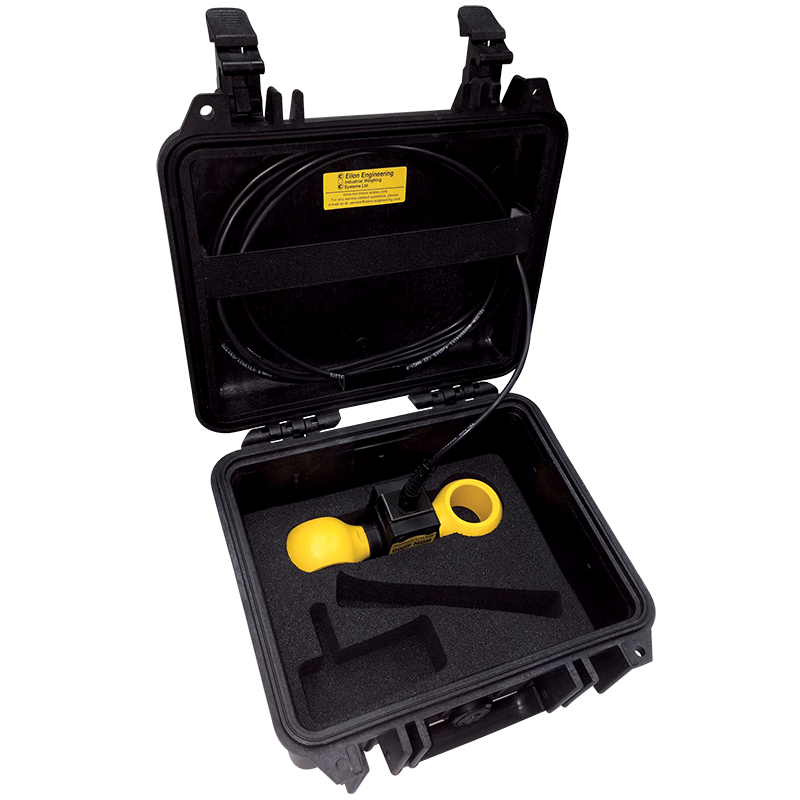

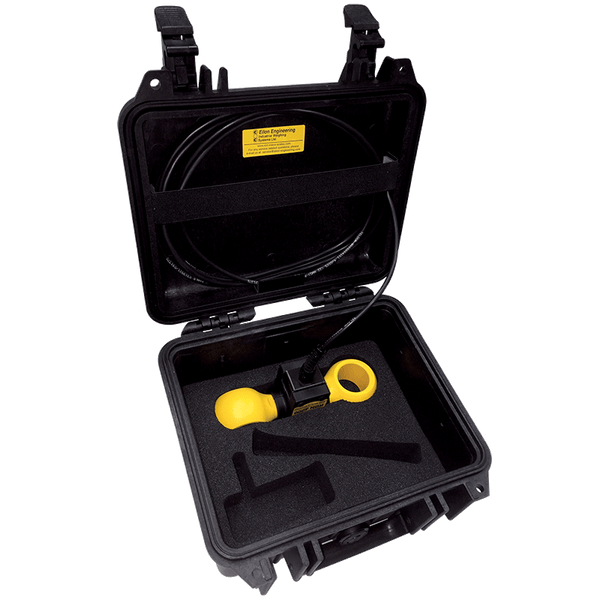

Eilon Engineering Ron Crane Scales™ Load Cell with Built-in Amplifier (4-20mA Output)

Product No. Ron4000CS005


🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.

Regular price $1,776.00 USD
CAPACITY
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

SPECIFICATIONS

  • Safety Factor: 5:1
  • Proof Load: 200% of capacity, certified (Up to a test force of 400t)
  • Cable Length: 3m/9.5'

FEATURES

  • Single Analog Output: 4-20mA
  • Designed for use with PLCs
  • Small and Lightweight
  • Minimum Headroom Loss
  • Fatigue rated for longevity and safety
  • 90° between shackle holes eliminates bending of the load cell, increasing accuracy and safety
  • Made from high quality aerospace steel
  • Linearity: 0.1% of full scale
  • IP65/NEMA4 environmental protection
  • Temperature Range: -15°F to +175°F (-25°C to +80°C)
  • Calibration: Supplied with approximate calibration (final calibration is performed by customer after connecting load cell to measuring/control system)
  • Zero Load: 4 mA ± 0.2mA
  • Full Load: 20mA ± 1mA
  • Maximum Input Voltage: 36V
  • Maximum Input Current: 100mA
