Hubbell Control Station (Pickle) - Assembly
Product No. HBL CS - L14-20 (BLK) SKJ
Shipping calculator
Payment methods
Product details
PINOUTS FOR CONTROL STATIONS
|
|||
PINOUT NAME | X | Y | W |
Skjonberg / Motion Labs | COMMON | DOWN | UP |
Mountain Productions | UP | DOWN | COMMON |
Custom | COMMON | UP | DOWN |
When selecting an assembly and pinout for your control station, please reference the chart above. If you are unsure of what type of pinout you require, select "I Don't Know" and we will contact you to make sure you receive exactly what you need.

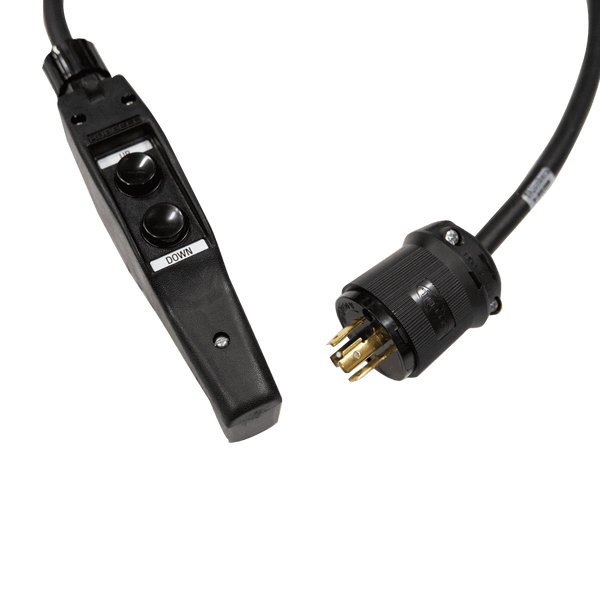

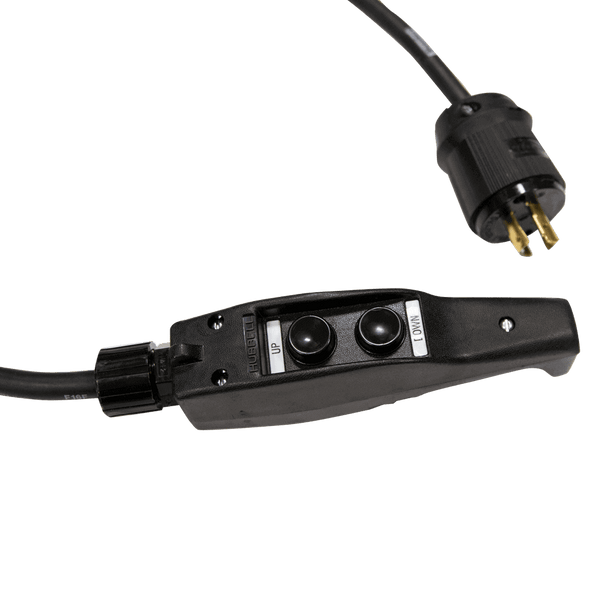

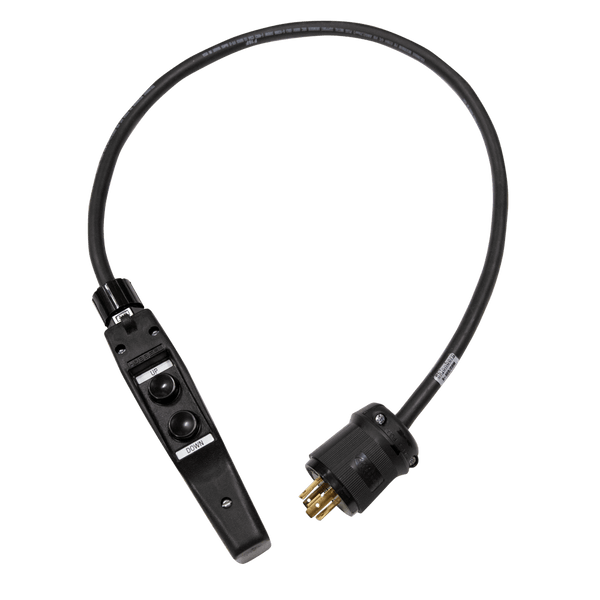

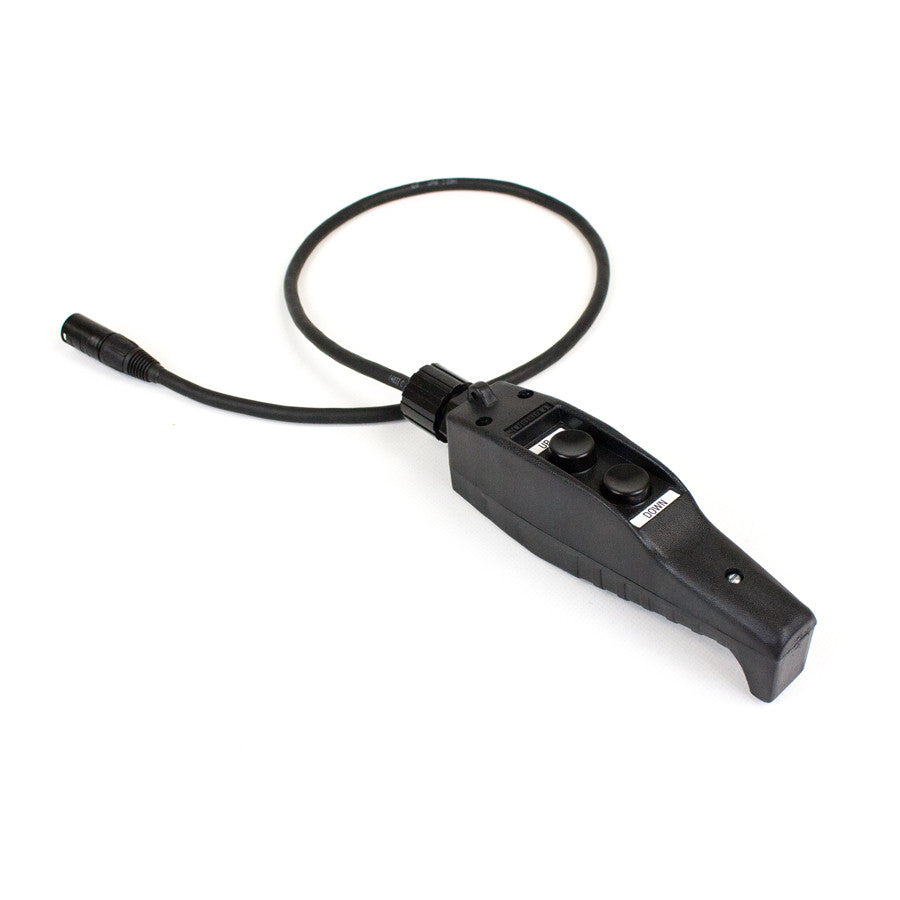

Hubbell’s Compact Control Stations provide hoist operators with a simple, ergonomic pushbutton controller. Fitted with an L14-20 connector, the Hubbell Control Station features a mechanical interlock on reversing stations that prevents actuating both pushbuttons simultaneously. Hubbell’s design is engineered for ultimate comfort and is manufactured with a durable, high impact molded polymer. These control stations are built by Hubbell Incorporated, an international manufacturer of industrial electrical products, and have proven themselves as a popular control station for operating hoists.
