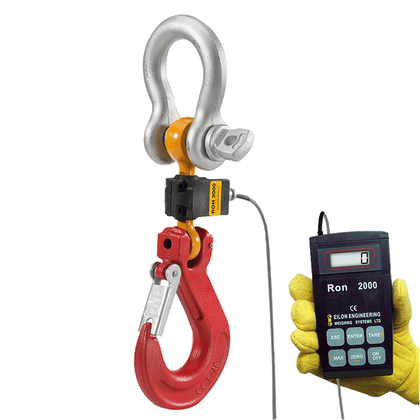

Eilon Engineering Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output)

SPECIFICATIONS

• Safety Factor: 5:1
• Proof Load: 200% of capacity, certified (Up to a test force of 400t)
• Designed for use with PLCs
• Cable Length: 3m/9.5'

FEATURES

• Single Analog Output: 0-2V
• Small and Lightweight
• Minimum Headroom Loss
• Fatigue rated for longevity and safety
• 90° between shackle holes eliminates bending of the load cell, increasing accuracy and safety
• Made from high quality aerospace steel
• Linearity: 0.1% of full scale
• IP65/NEMA4 environmental protection
• Temperature Range: -15°F to +175°F (-25°C to +80°C)
• Calibration: Supplied with approximate calibration (final calibration is performed by customer after connecting load cell to measuring/control system)
• Zero Load: 0V +0.05V
• Full Load: 2V ± 0.1V
• Maximum Input Voltage: 48V
• Maximum Input Current: 100mA"
