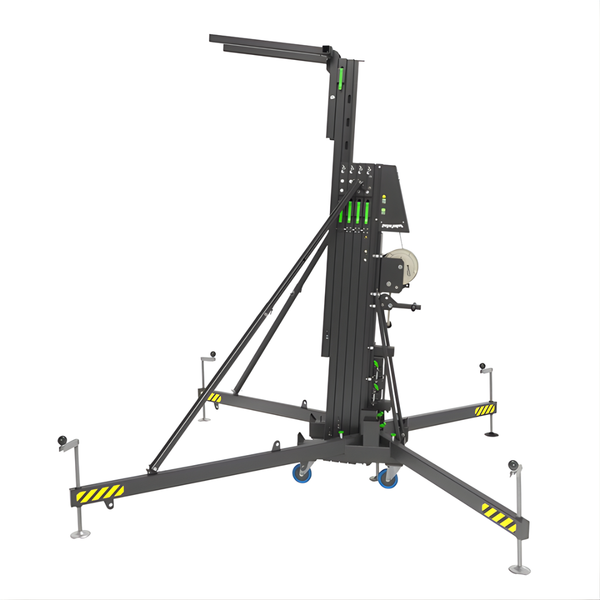

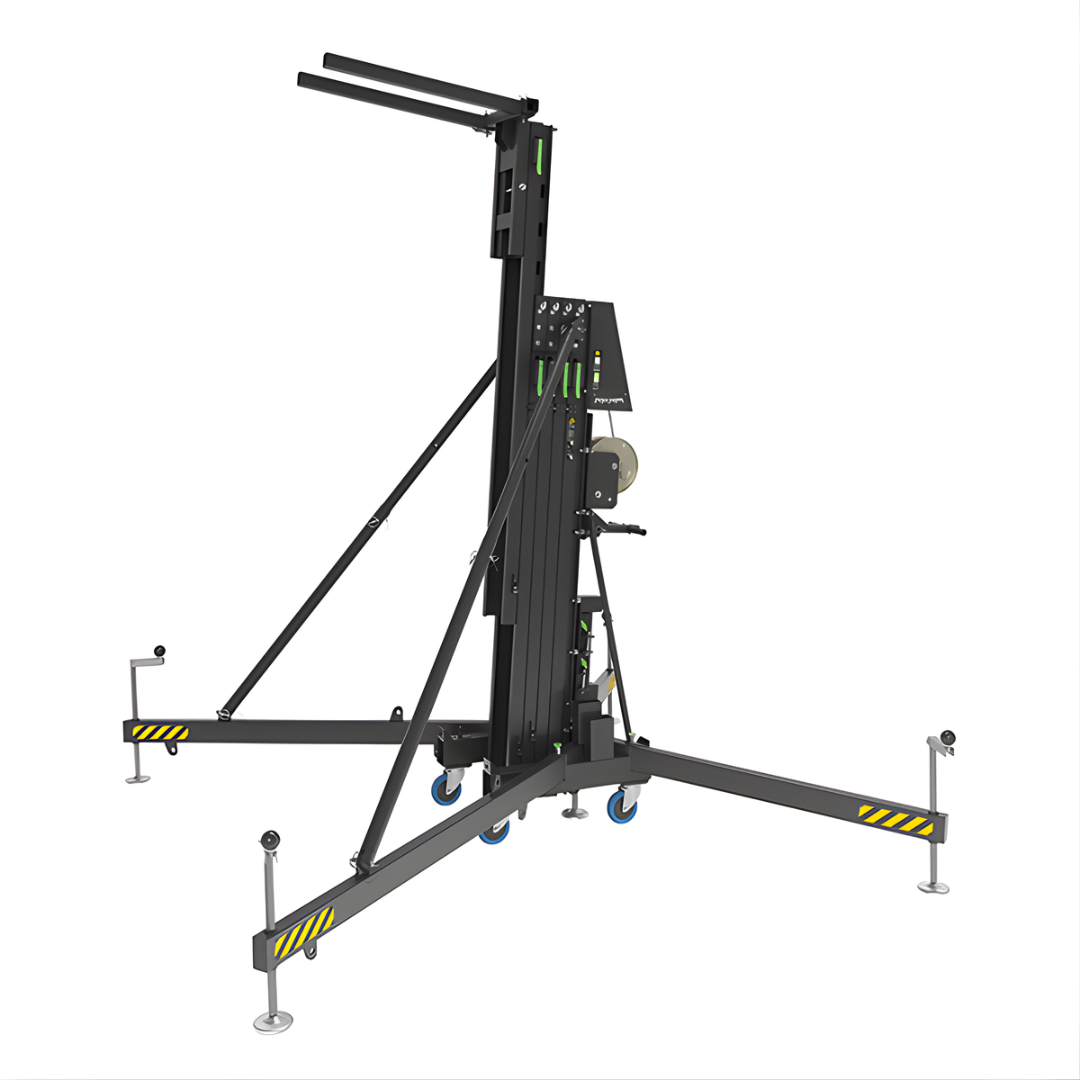

  • Kuzar K-60 line array lift fully assembled with loading forks extended and outrigger legs deployed

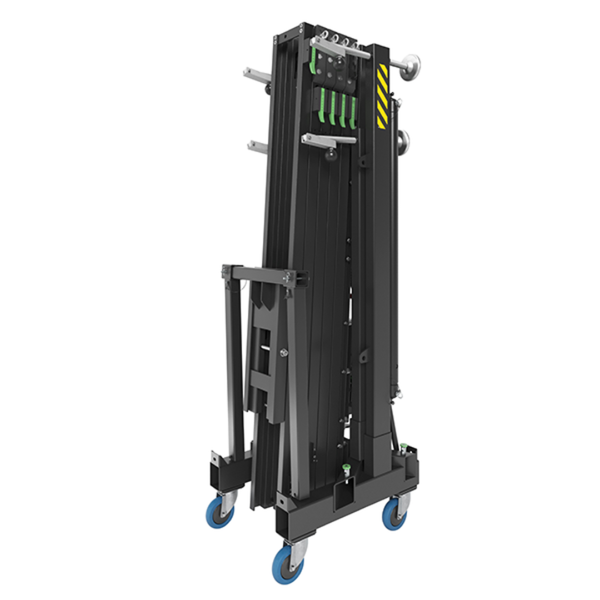

  • Kuzar K-60 line array lift folded for transport on its swivel castors - imagen 2

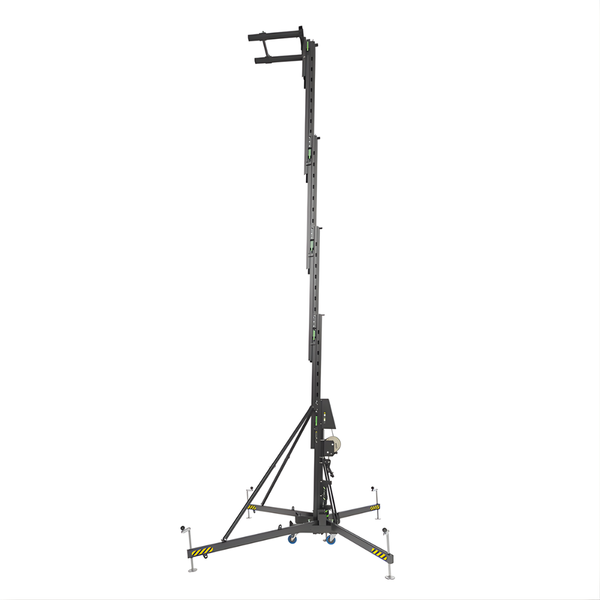

  • Kuzar K-60 line array lift fully extended at its maximum 7.2 m working height - imagen 3

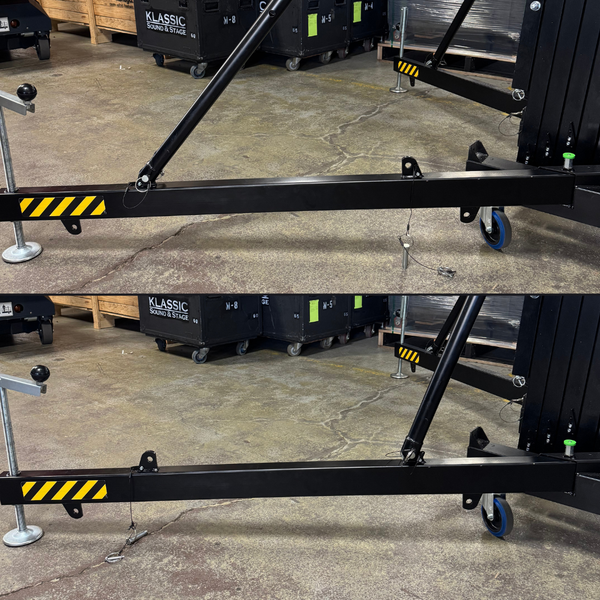

  • Kuzar K-60 outrigger legs and steel base detail with hazard marked stabilizers - imagen 4
  • Kuzar K-60 SLS Safe Lock System trigger detail on each aluminium section - imagen 5

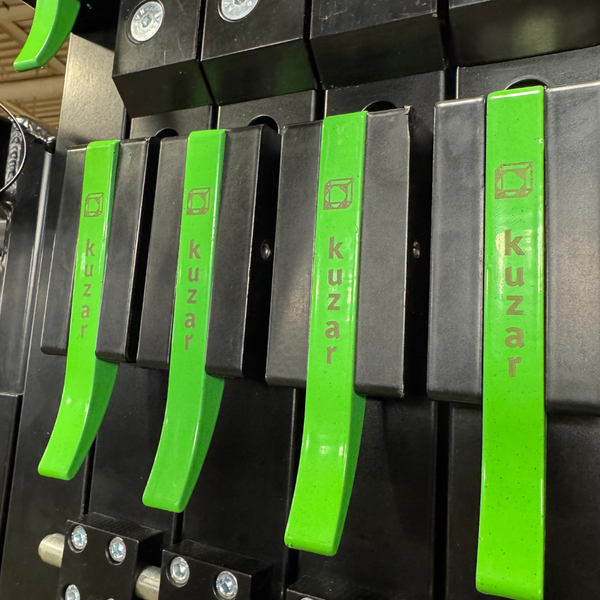

  • KAT Lock System - Kuzar K-60 - imagen 6

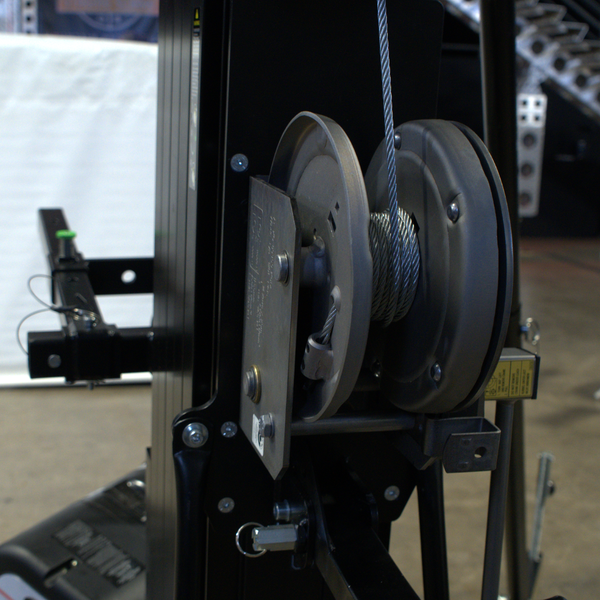

  • Kuzar K-60 winch and pulley mechanism detail with steel cable - imagen 7

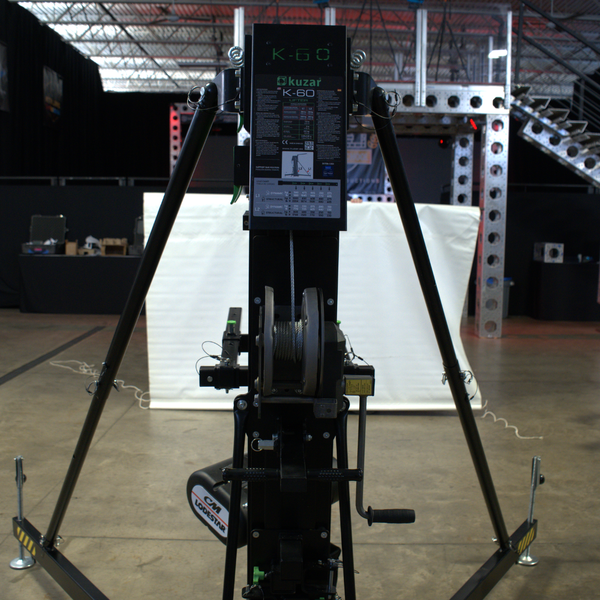

  • Kuzar K-60 line array lift set up in a workshop showing full tripod base and control panel - imagen 8

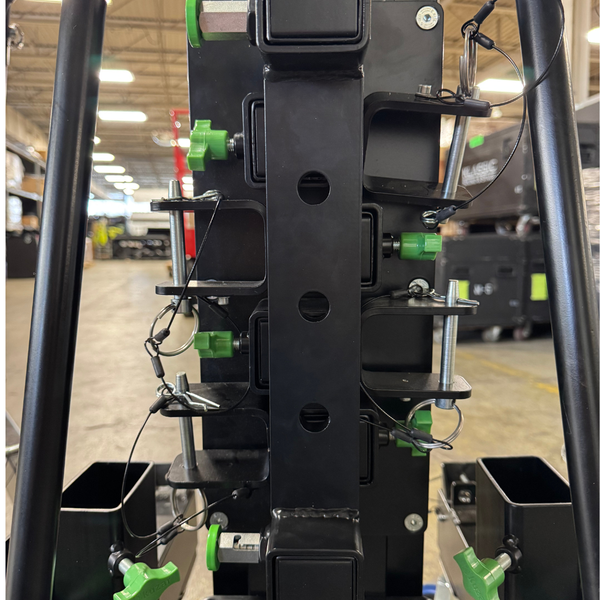

  • Rigging attachment storage - Kuzar K-60 - imagen 9

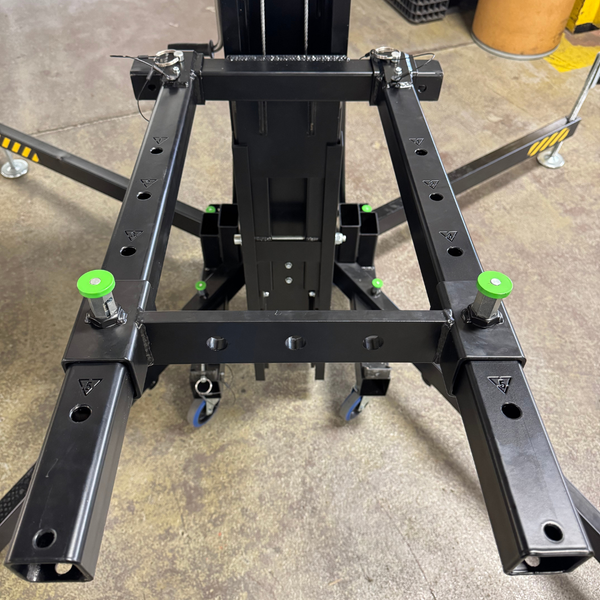

  • Forks with laser-cut position location - Kuzar K-60 - imagen 10

Kuzar Tower Lift K-60

Kuzar |
SKU: K-60
$8,875.29
2 years warranty
  • Dual Lifting Modes: Raises 500 kg (1,102 lb) to 7.2 m (23.6 ft) in dynamic mode, or up to 1,000 kg (2,204 lb) in structural mode with a hoist.
  • SLS Safety System: Automatically locks each aluminium section during elevation, backed by an internal pendulum brake.
  • TÜV Certified: Certified to EN 17206-2:2023, the only certification of its kind for this type of line array lift.
  • Made in Spain: 259 kg (571 lb) net weight, 2-year warranty, ships with AGR-1 and four TA-2 accessories.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
Kuzar Tower Lift K-60
Incl. VAT
+
Kuzar Line Array System Support
Incl. VAT
+
Kuzar TA-2 U Piece for Transverse Load Black
Incl. VAT
Please select country
Please enter correct zip code
Test heading

Kuzar K-60 Line Array Lift

The Kuzar K-60 line array lift is the most powerful and lightweight tower lift in the Kuzar range. It is TÜV certified according to EN 17206-2:2023, the only certification of its kind on the market for this type of lifter.

Depending on the application, the K-60 can be used in two working modes:

  • Dynamic mode: lifts up to 500 kg (1,102 lb) to a height of 7.2 m (23.6 ft)
  • Structural mode: supports up to 1,000 kg (2,204 lb), with the tower locked at height while a manual or electric hoist performs the lifting

Key Features

  • TÜV certified to EN 17206-2:2023, the only certification of its kind for this type of lifter
  • 500 kg (1,102 lb) lifting capacity to 7.2 m (23.6 ft) in dynamic mode
  • 1,000 kg (2,204 lb) capacity in structural mode
  • SLS Safe Lock System automatically secures each section during elevation
  • Internal pendulum brake provides a second safety layer in case of a sudden drop
  • Two telescopic lateral braces provide extra stability and allow closer positioning to the stage
  • Includes one AGR-1 and four TA-2 accessories for line array systems and trussing
  • Steel base with four 360 degree swivel castors and a central steering handle
  • 2-year warranty
  • Made in Spain

Construction & Accessories

The K-60 is built from five premium grade 6082-T6 black epoxy powder coated aluminium sections, raised using a manual AL-KO winch with galvanized steel cable.

It ships with:

These accessories provide everything needed to lift both line array systems and trussing.

For easier transport and positioning, the steel base includes:

  • A central steering handle
  • Four 360 degree swivel castors
  • Mounting points for an optional pallet truck accessory

Two 75 cm steel loading forks rotate 180 degrees to provide two working positions. They are attached to a reinforced steel lifting carriage, with all pins and clips secured by nylon coated steel lanyards.

Why Kuzar K-60

The Kuzar K-60 offers an affordable alternative to many line array lifts without compromising on lifting capacity, safety or practical handling.

  • Its black anodized finish helps the lift remain virtually invisible to audiences and blend seamlessly backstage
  • Built-in safety systems support safer setup and operation
  • Its design makes transport and positioning easier for theatrical productions and live events
  • Combines high lifting capacity with an economical price point

If you need a powerful yet economical line array lift, the K-60 is hard to beat.

Browse the full range of Kuzar tower lifts at MTN Shop.

COMPLETE YOUR SETUP

RELATED PRODUCTS

Explore compatible accessories and related products.

Frequently Asked Questions

What is the Kuzar K-60 line array lift used for?
The Kuzar K-60 line array lift raises line array speaker systems, lighting rigs and truss structures in professional sound and live event applications. It works in dynamic mode for direct lifting or structural mode alongside a hoist, and is TÜV certified to EN 17206-2:2023.
What is the difference between dynamic and structural mode on the K-60?
Dynamic mode lifts loads directly with the tower up to 500 kg. Structural mode locks the K-60 at the desired height and uses a separate manual or electric hoist to raise loads up to 1000 kg, with the tower acting purely as a support structure.
How much weight can the Kuzar K-60 line array lift hold?
The K-60 holds up to 500 kg in dynamic mode and up to 1000 kg in structural mode, with a minimum load of 25 kg required for the brake to engage correctly.
What accessories come included with the K-60?
The Kuzar K-60 ships with one AGR-1 and four TA-2 accessories fitted to the body, giving operators everything needed to mount line array systems or trussing without ordering extra parts separately.
Is the Kuzar K-60 suitable for outdoor events?
The K-60 is built with a rugged steel base, swivel castors and telescopic lateral braces for added stability, and should be secured against wind when used outdoors, following the guidelines in the official Kuzar manual.
