CMC Triskelion Confined Space Tripod
$3,199.00
CMC Triskelion Confined Space Tripod
$3,199.00
Model:
Tripod
- Adjustable Working Height: Ranges from a 5.5 ft (1.7 m) min to a 10 ft (3 m) max working height for confined space or low-clearance access.
- Dual Head-Mounted Pulleys: Two stainless steel pulleys handle cable and rope up to 13 mm (1/2 in).
- Rigging Versatility: Three side-plate anchor points support 4:1 systems like the CSR2, plus three additional tie-off points.
- NFPA and EN Certified: Classified NFPA General Use and certified to EN 795:2012 Type B, weighing 70 lb (31.8 kg) tripod only.
Often Bought Together
Select items you want to add together
Please enter correct zip code
CMC Triskelion
The CMC Triskelion is a fully featured industrial rescue tripod — rapidly deployed, easy to use, highly adjustable, certified to NFPA General Use and EN standards, and designed for multiple rigging options.
Key Features and Highlights
- Adjustable Height: 10 ft max working height allows rescuers to haul patients from a confined space using a harness or litter; 5.5 ft min working height facilitates access to low-clearance areas.

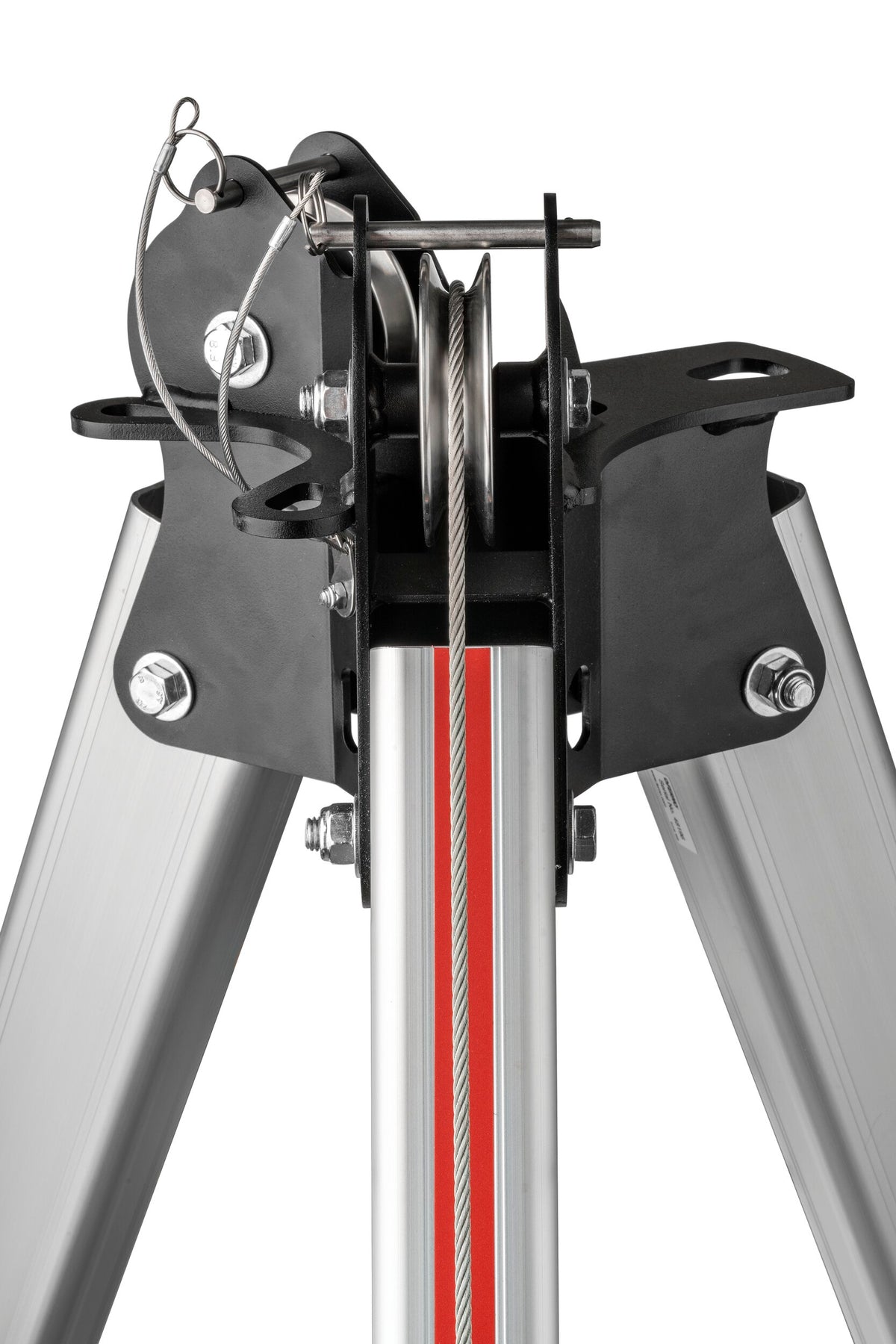

- Rigging Options: Two head-mounted stainless steel pulleys compatible with cable and rope up to 13 mm (1/2 in), three side-plate anchor points ideal for 4:1s like the CSR2 pulley system, three tie-off points for additional rigging or stabilization, and several mounting options for the Harken LokHead Winch and DBI-Sala Salalift II Winch.
- Rectangular Legs: Prevents spinning and properly aligns adjustment holes and tripod feet; built-in stoppers keep the inner legs from pulling out all the way, allowing full extension without risk of separation; 4 in leg height increments enable maximum tripod extension in height-constricted areas.
- Quick-Action Pins: Large, ball-lock push pins that are easily handled with gloves, snap into place, with robust lanyards to prevent loss.

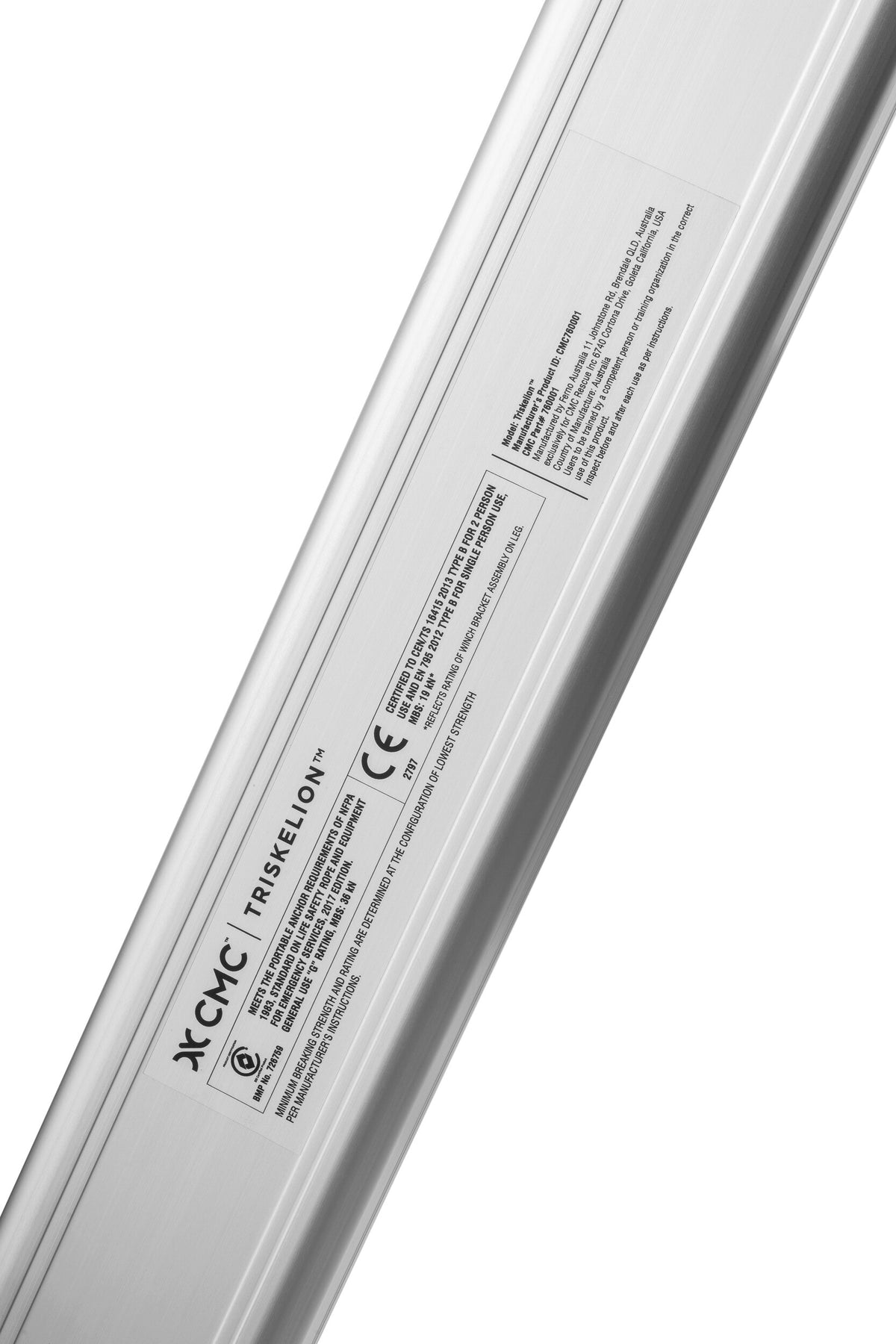

- High Contrast Graphics: Easy to see in low light, with clear leg height numbering and icons that guide winch installation.

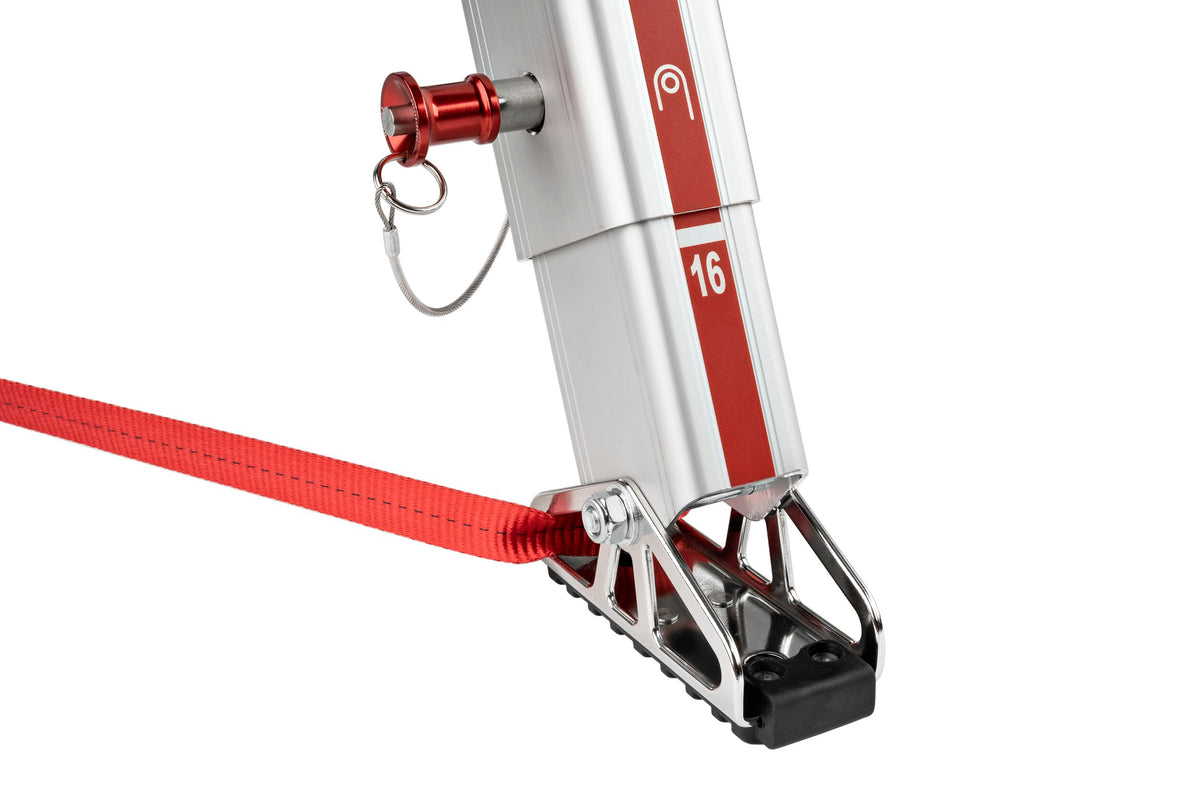

- Pivoting Feet: Adapt to a variety of surfaces and angles, with non-slip tread for hard floors and spiked tips for soft earth.

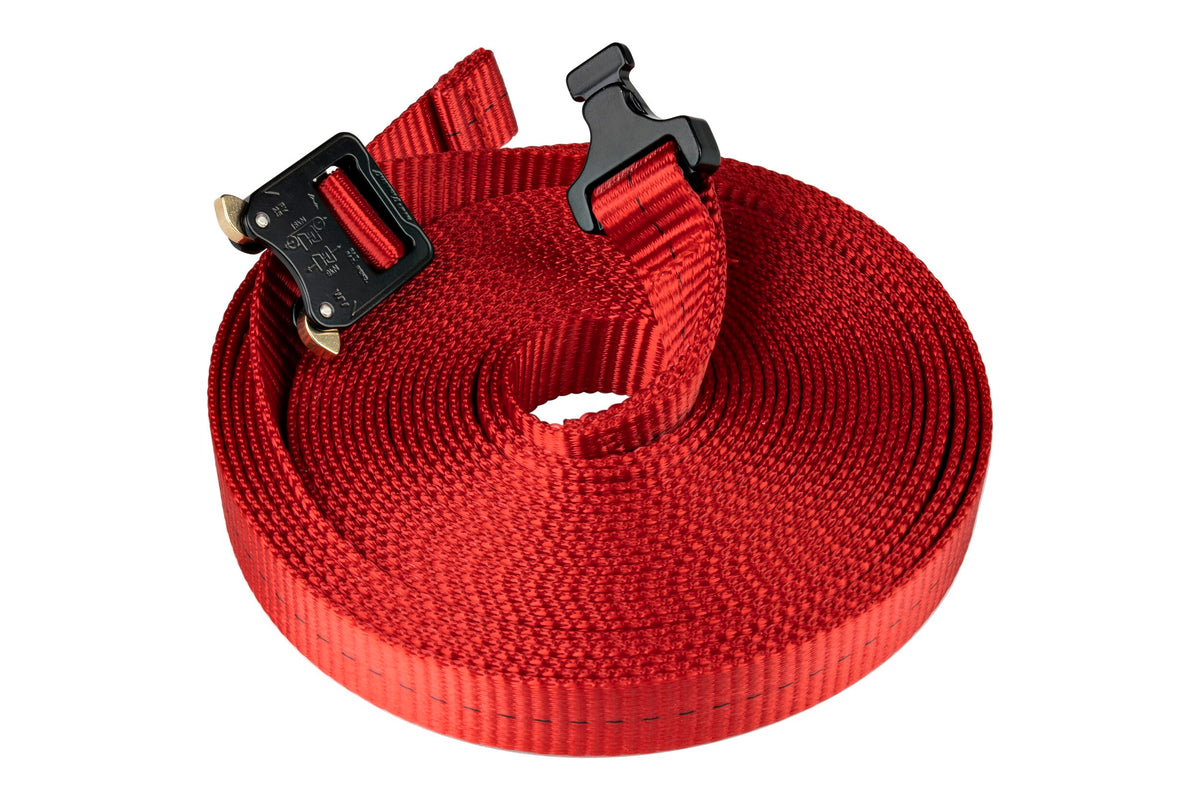

- Quick-Connect Hobble: Red webbing hobble strap secures all three legs at the base with a single quick-connect Cobra Buckle — lighter than chain, faster than multiple lengths of material, and highly visible.
- Carry Bag: Reinforced carry bag with a diagram indicating proper orientation for balanced single-person transport; carried by two people using the end handles, or one person using the padded center shoulder strap.
Components
Includes the Triskelion Tripod, Hobble Strap, Carry Bag, Leg Strap, and User Manual.
Specifications
Min Working Height: 1.7 m (5.5 ft). Max Working Height: 3 m (10 ft). Tripod Weight: 32 kg (70 lb). Packed Length in Bag: 2.1 m (7 ft). Packed Width x Height: 0.3 m x 0.3 m (1 ft x 1 ft). Tripod Footprint (Inside Diameter of Feet): 158 cm (62.2 in) min to 282 cm (111 in) max. Tripod Footprint (Outside Diameter of Feet): 193 cm (76 in) min to 317 cm (124.8 in) max. MBS: 36 kN (8,093 lbf) attached directly to head; 22 kN (4,946 lbf) attached to leg over pulley. Certification: NFPA General Use; EN 795:2012 Type B for Single Person Use; CEN/TS 16415:2013 Type B for 2 Person Use.
Accessories (Sold Separately)
The Equipment Bracket provides an additional anchor/tie-off point when attached to the leg, installing on the inside or outside of the tripod leg with two push-pins equipped with wire lanyards, and supports M/A systems, rope devices, and pulley use at the Triskelion head (MBS 22 kN, working load limit of 220 kg / 484 lb based on a 10:1 safety factor). The LokHead Winch Adapter enables the Harken LokHead Winch to be mounted, and the Salalift II Winch Adapter enables the 3M DBI/SALA Salalift II Winch to be mounted, both using large, quick-action, ball-lock push pins. The Foot Step Kit (2 steps) mounts to the lower section of the leg, allowing the operator to reach the head after setup, and the Ground Stake Kit (3 stakes) integrates with the Triskelion feet to provide additional security on soft ground.
Who Is This Product For?
Ideal for: confined space and industrial rescue teams needing a rapidly deployed, highly adjustable rescue tripod with multiple rigging options.
