CM Chain Plate Kit V2 Classic
CM Chain Plate Kit V2 Classic $102.85

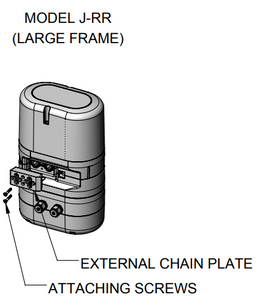

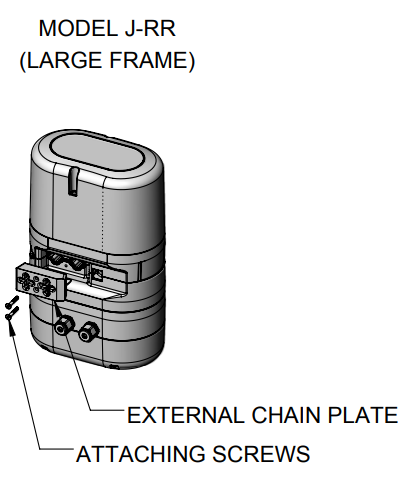

  • CM Lodestar External Chain Plate diagram showing Loose End Side, Load Side, Orientation Arrow, and Attaching Screws for Large Frame (Model J-RR) and Small Frame (Model B-F) hoists.

CM Chain Plate Kit V2 Classic

CM |
SKU: 10001439
$102.85
  • Compatible with Large Frame Lodestar models. Fits J, JJ, L, LL, R, and RR hoists.
  • Guides load chain into the motor housing. Helps prevent chain twisting or jamming as it feeds over the liftwheel.
  • Genuine CM replacement part. Made in the USA, includes attaching screws.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
CM Chain Plate Kit V2 Classic
Incl. VAT
+
CM Genuine Load Chain (1/4")
Incl. VAT
+
CM Genuine Load Chain (5/16")
Incl. VAT
+
CM Upper Hook, Latch Type (V1)
Incl. VAT
Please select country
Please enter correct zip code
Test heading

CM External Chain Plate Kit, Large Frame

The External Chain Plate Kit (part number 10001439) is a genuine Columbus McKinnon replacement component for Large Frame CM Classic Lodestar hoists, models J, JJ, L, LL, R, and RR. Manufactured in the United States, this kit weighs approximately 0.45kg.

The external chain plate guides the load chain into the motor housing as it feeds through the chain guides and over the liftwheel, helping keep the chain properly oriented and reducing the chance of the chain twisting or jamming as it enters the hoist.

Key Features:

  • Genuine CM replacement part
  • Compatible with Large Frame Classic Lodestar models: J, JJ, L, LL, R, RR
  • Guides load chain into the motor housing, through the chain guides and over the liftwheel
  • Includes attaching screws
  • Made in the USA
  • Weight: approximately 0.45kg

Explore the full range of genuine CM replacement parts at MTN Shop.

COMPLETE YOUR SETUP

RELATED PRODUCTS

Explore compatible accessories and related products.

Frequently Asked Questions

Which CM Lodestar models is the External Chain Plate Kit 10001439 compatible with?
It's designed specifically for Large Frame Classic Lodestar hoists: models J, JJ, L, LL, R, and RR. Small Frame models (B, C, F) use a different kit, part number 10001438, since the two frame sizes have different chain plate shapes.
What does the external chain plate actually do on a CM Lodestar hoist?
It guides the load chain as it feeds through the chain guides and over the liftwheel into the motor housing, helping keep the chain properly aligned and reducing the risk of it twisting or jamming as it enters the hoist.
Does the External Chain Plate Kit include the screws needed to install it?
Yes, the kit includes the attaching screws along with the chain plate itself.
Can I install this chain plate myself, or does it require a qualified technician?
Per CM's official documentation, only qualified personnel should adjust or repair the hoist. Since the chain plate sits in the load chain path, install it according to the orientation shown in the official manual (loose end side, load side, and orientation arrow marked on the part) to avoid introducing a chain twist or jam.
