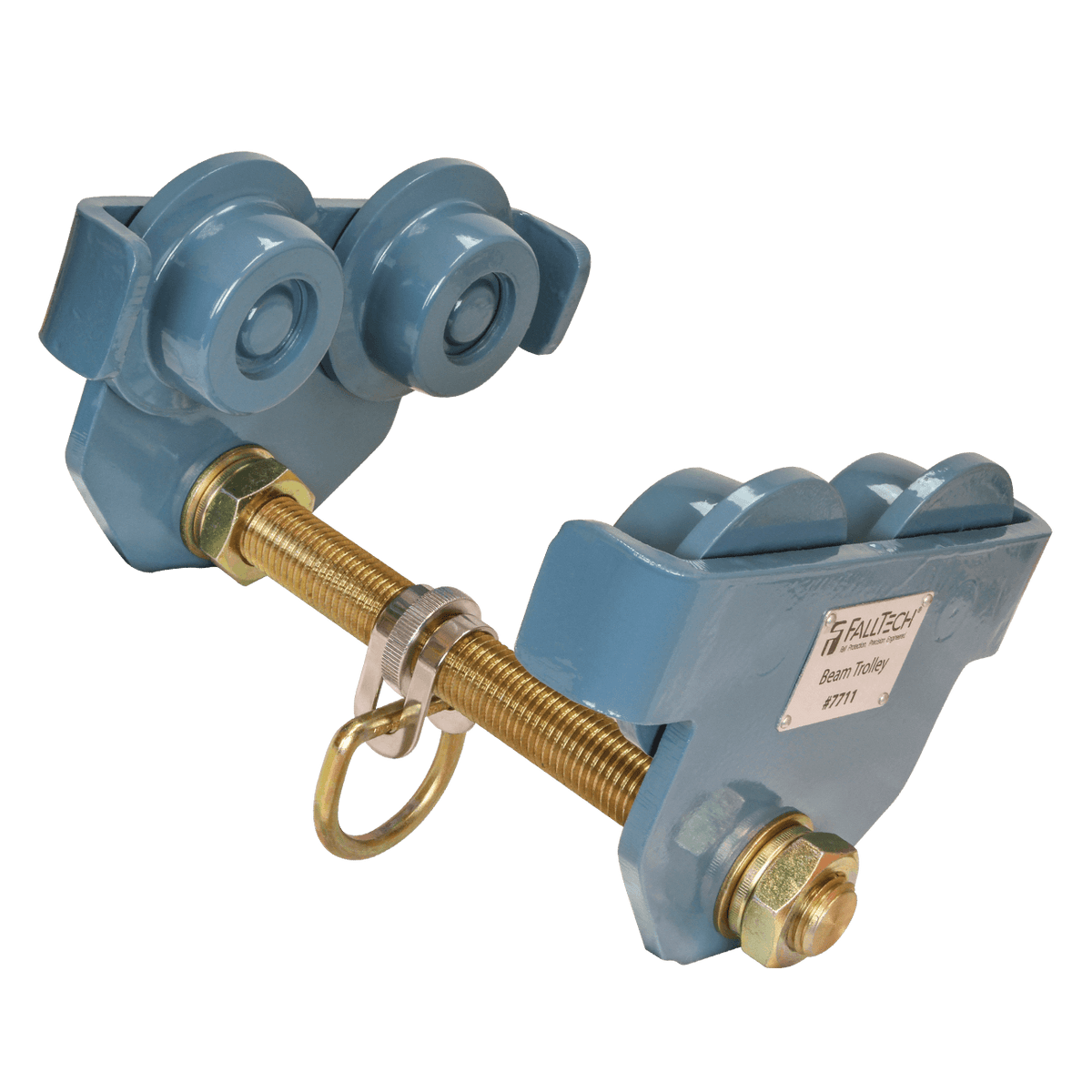

8" All-steel Beam Trolley Anchor
Product No. 7711
Regular price
$491.00
$491.00
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details
8" All-steel Beam Trolley Anchor
FEATURES
- Features single trolley adjustment and threaded steel crossbar
- Includes steel wheels, side plates and adjustment rings.
- Fits beam flanges from 3" to 8" wide and up to 2-1/4" thick
- For temporary or permanent installation on overhead horizontal I-beams
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
D-ring: Plated alloy steel; 5,000 lb min. static strength
Crossbar: Plated carbon steel
Wheel Plates: Powder coated carbon steel
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
