3M™ DBI-SALA® D-ring with Anchorage Plate
3M™ DBI-SALA® D-ring with Anchorage Plate $64.62 $59.30

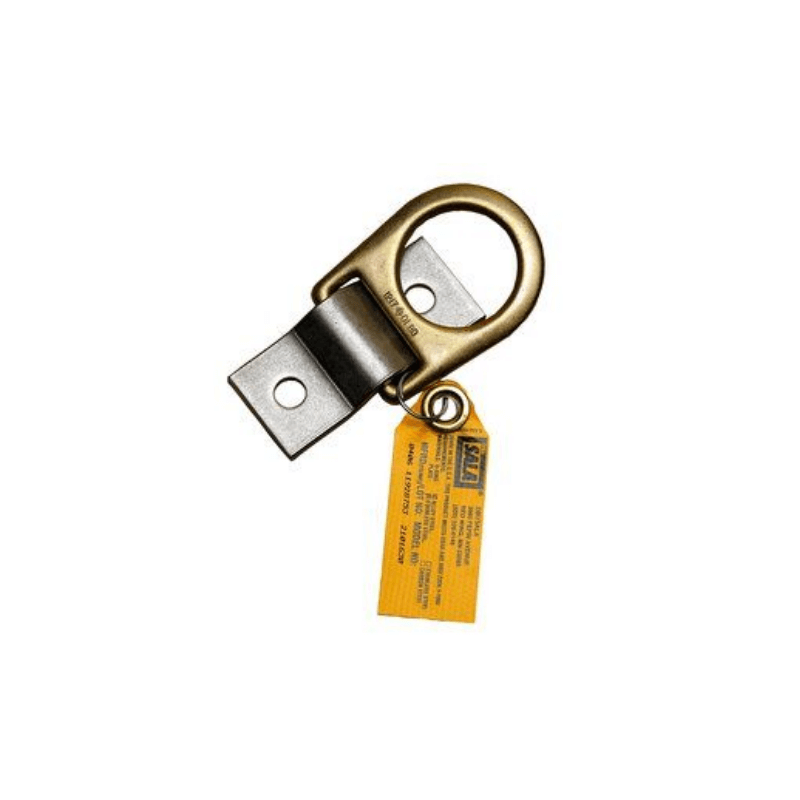

  • 3M™ DBI-SALA® D-ring with Anchorage Plate - 304 Stainless Steel Plate with Zinc Plated Steel D-ring

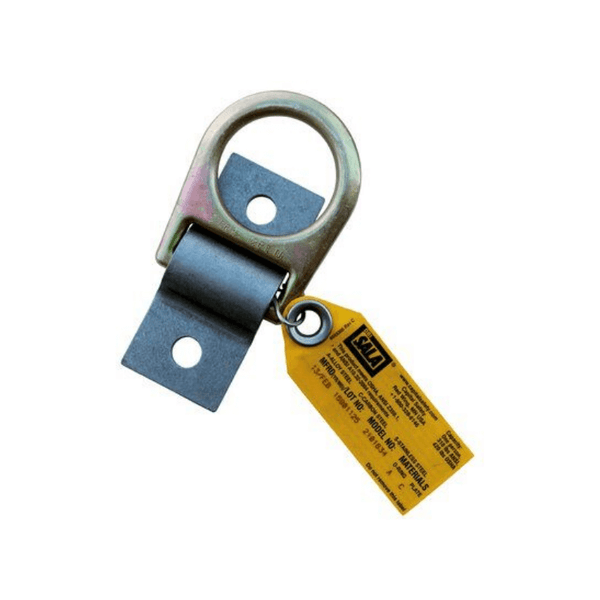

  • 3M™ DBI-SALA® D-ring with Anchorage Plate - Raw Steel Plate with Zinc Plated Steel D-ring - imagen 2

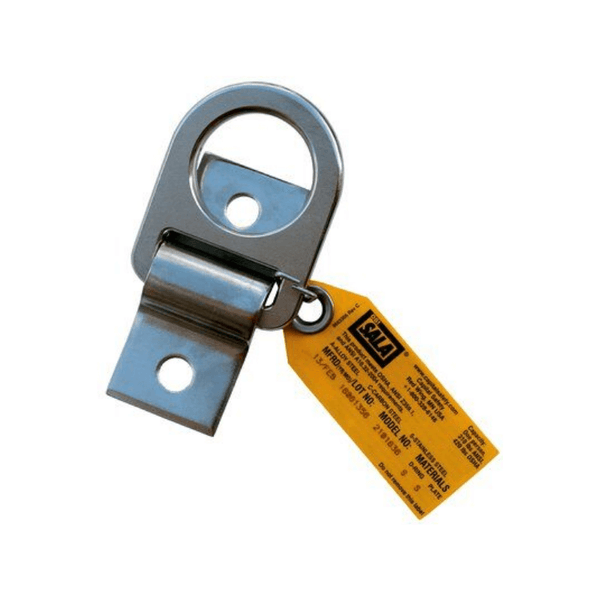

  • 3M™ DBI-SALA® D-ring with Anchorage Plate - Stainless Steel Plate with Stainless Steel D-ring - imagen 3

3M™ DBI-SALA® D-ring with Anchorage Plate

3M |
SKU: 2101630
$59.30 $64.62Sale
In Stock
Plate & D-ring Material: 304 Stainless Steel Plate & Zinc Plated Steel D-ring
  • Bolt or weld to structure for a permanent anchor point. Compact 1/4" x 2" x 4.5" steel plate with 9/16" pre-drilled holes.
  • 4 material combinations available. From economical raw steel to fully 316 stainless steel for harsh corrosive environments.
  • Capacity 310 lbs ANSI / 420 lbs OSHA. High strength steel construction, rugged and corrosion resistant.
  • ANSI Z359.1, OSHA 1910.66/1926.502 compliant. Certificates of Compliance available for all 4 variants.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Please select country
Please enter correct zip code

You may also like

Test heading

3M™ DBI-SALA® D-ring with Anchorage Plate

The 3M™ DBI-SALA® D-ring with Anchorage Plate is a critical component in most fall protection systems, as it securely attaches your system to the anchorage. This compact steel plate, through 9/16'' pre-drilled holes, can either be bolted or welded to a structure in order to provide a fall arrest anchor point.

With a high strength steel construction, this anchorage plate also includes a zinc plated steel / 304 stainless steel / 316 stainless steel D-ring for a compatible tie-off point. The 3M™ DBI-SALA® D-ring with Anchorage Plate is built from top quality, rugged and corrosion resistant materials that guarantee high strength and durability to stand up to the toughest of environments.

Key Features

  • Bolt or weld to structure for a fall arrest anchor point
  • Compact 1/4'' x 2'' x 4.5'' steel plate
  • Pre-drilled 9/16'' holes
  • 2101630: 304 stainless steel plate with zinc plated steel D-ring for a compatible tie-off point
  • 2101634: Raw steel plate with zinc plated steel D-ring for a compatible tie-off point
  • 2101636: 304 stainless steel plate with 304 stainless steel D-ring for a compatible tie-off point
  • 2101638: 316 stainless steel plate with 316 stainless steel D-ring for a compatible tie-off point
  • High strength steel construction
  • Extremely rugged and corrosion resistant

Technical Data

  • Capacity: 310 lbs (141 kg) ANSI / 420 lbs (190 kg) OSHA
  • Weight: 1.2 lbs
  • Dimensions: 1/4'' x 2'' x 4.5''
  • Hole Diameter: 9/16''
  • Attachment Type: Bolt / Weld
  • Plate Material: 2101630: 304 Stainless Steel / 2101634: Raw Steel / 2101636: 304 Stainless Steel / 2101638: 316 Stainless Steel
  • D-ring Material: 2101630: Zinc Plated Steel / 2101634: Zinc Plated Steel / 2101636: 304 Stainless Steel / 2101638: 316 Stainless Steel
  • Color: Silver, Yellow Zinc
  • Install Type: Permanent
  • iSafe Equipped: No
  • Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
  • Standards: ANSI Z359.1, OSHA 1910.66, OSHA 1926.502

Explore the full range of DBI-SALA fall protection at 3M at MTN Shop.

Frequently Asked Questions

Which material option of the 3M DBI-SALA D-ring with Anchorage Plate should I choose for my environment?
The 2101634 (raw steel) is the most economical option for indoor or low-corrosion environments. The 2101630 (304 stainless plate, zinc D-ring) offers a step up in corrosion resistance. The 2101636 (all 304 stainless) and 2101638 (all 316 stainless) are built for harsher, more corrosive outdoor or marine-adjacent environments, with 316 stainless offering the highest resistance of the four.
Can the 3M DBI-SALA D-ring with Anchorage Plate be removed and reinstalled elsewhere?
No. It's classified as a permanent install type, designed to be bolted or welded into a fixed structural location rather than moved between anchor points like a portable anchorage device.
What size bolts do I need for the pre-drilled holes on this anchorage plate?
The plate has 9/16'' pre-drilled holes, so select bolts sized appropriately for that hole diameter and rated for the structural load your installation requires.
Why does the rated capacity differ between ANSI (310 lbs) and OSHA (420 lbs) for this anchorage plate?
ANSI and OSHA apply different testing and safety factor methodologies to fall protection anchor points, which can result in different maximum rated capacities for the same physical hardware. Always design your fall protection system around the more conservative of the two figures relevant to your jurisdiction and application.
