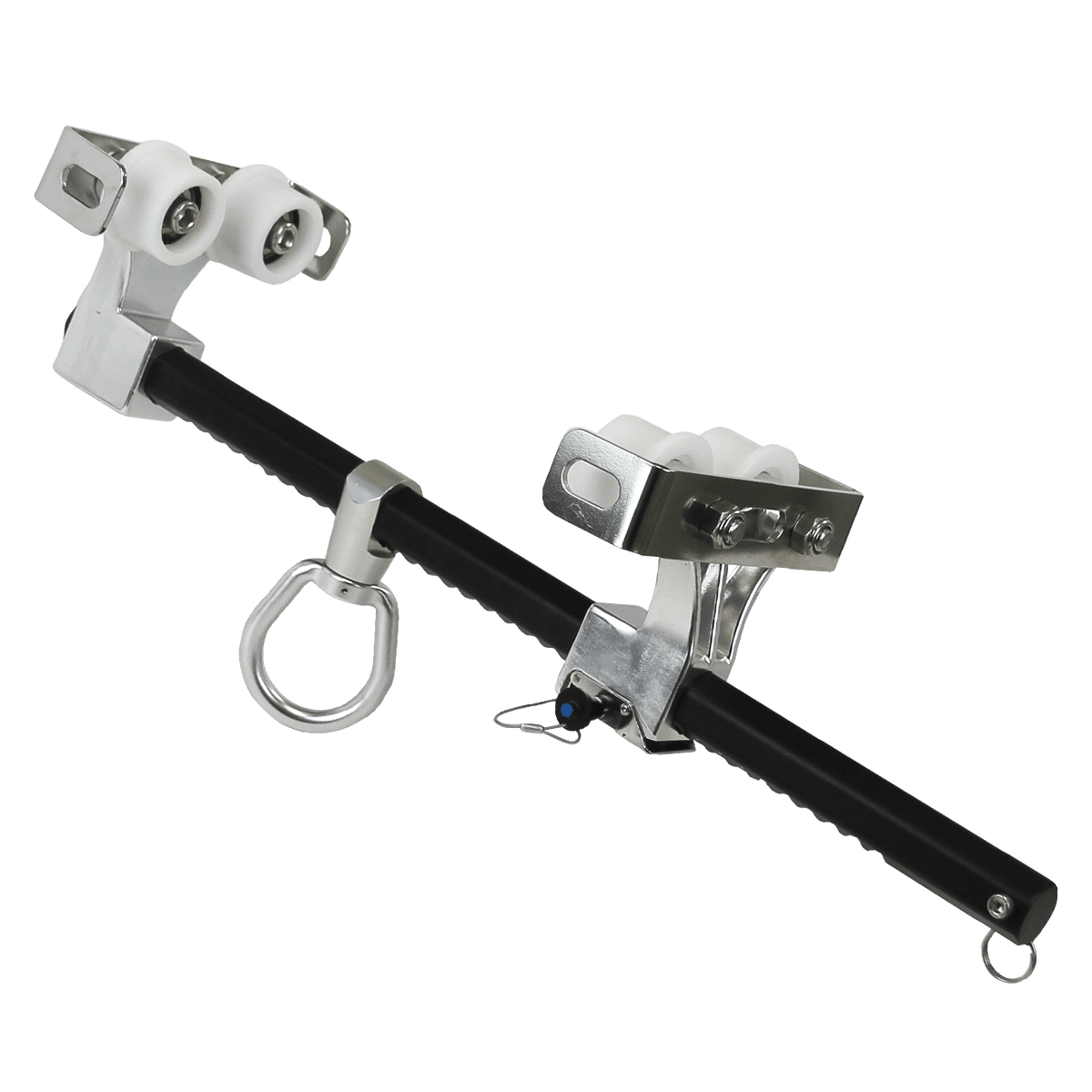

18" Aluminum Beam Trolley Anchor
FEATURES
- Features single trolley adjustment with aluminum crossbar, swiveling D-ring and wheel plates
- Includes high-density Nylacast wheels suitable for some food-rated installations.
- Fits beam flanges from 4" to 18" wide and up to 1-3/4" thick
- For temporary or permanent installation on overhead horizontal I-beams
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
D-ring: Aluminum alloy; 5,000 lb min. static strength
Crossbar: Aluminum alloy
Wheel Plates: Aluminum alloy
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
