10' Bolt-on Ladder Stanchion Anchor with 5" Overhead Offset
Product No. 6161005
Regular price
$918.00
$918.00
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details

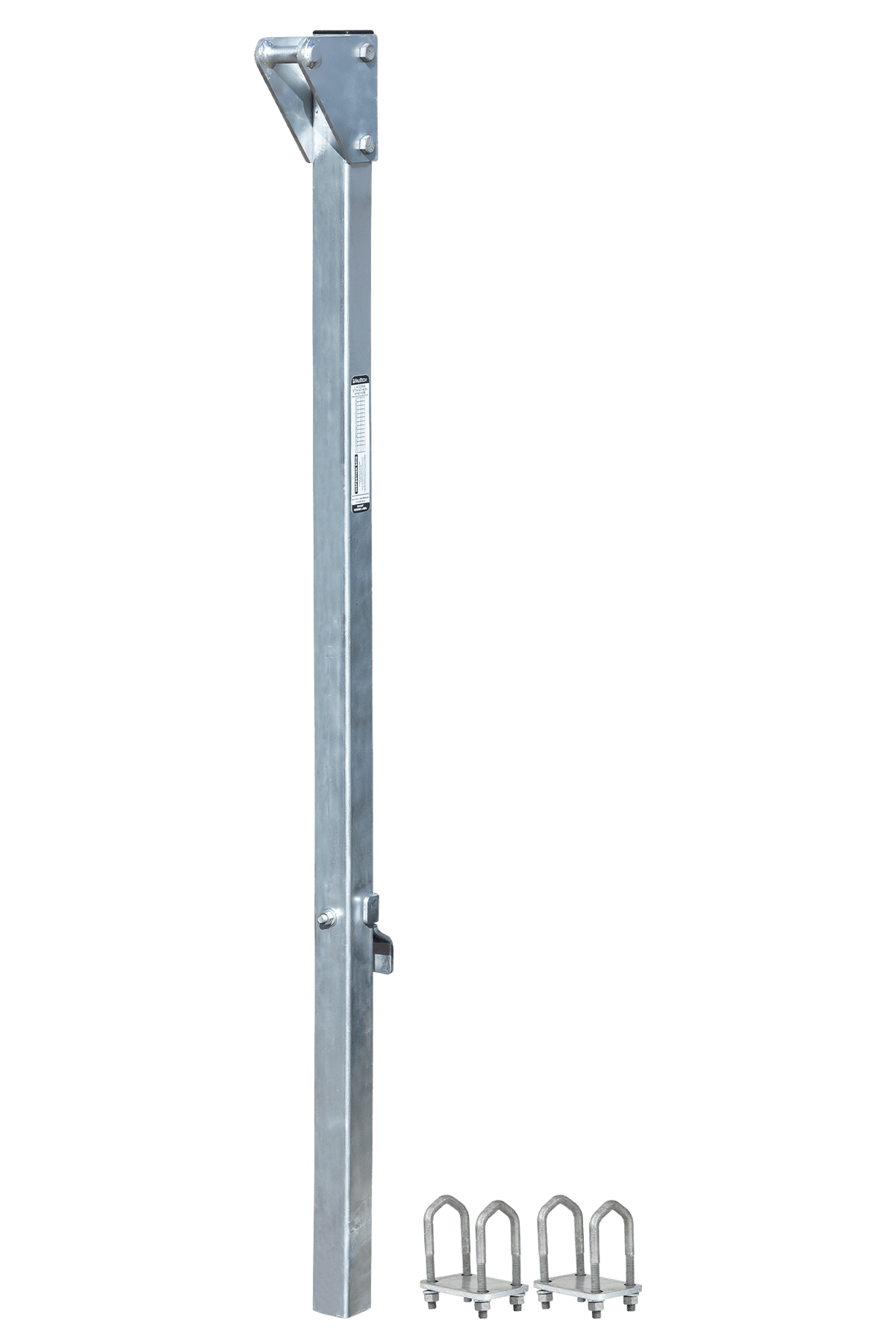

10' Bolt-on Ladder Stanchion Anchor with 5" Overhead Offset
FEATURES
- Fully galvanized structural steel post, hardware, and fasteners for durable performance
- Included hardware and fasteners allow for quick and easy install to a wide variety of fixed ladders.
- Can be installed in the middle of ladder or off to one side for maximum access at top of ladder
- 5' and 10' post heights maintain overhead anchorage for ladders that lead up to or extend past the walking-working surface
- 5" offset optimal for harness front D-ring attachment or ladders located in close quarters, cages, or confined spaces
- For permanent installation onto fixed ladders of various types and sizes.
- For use in personal fall arrest applications
- Optional rung reinforcements available for attachment to hollow rung ladders
- Meets OSHA 1926.502 and 1910.140 regulations
MATERIAL SPECIFICATIONS
Post: Galvanized and powder coated steel
Anchor Bracket: Galvanized and powder coated steel
Mounting Hardware: Galvanized and powder coated steel
PERFORMANCE SPECIFICATIONS
Static Strength: 3,600 lbs min.
ANSI User Capacity: One user up to 310 lb max.
OSHA User Capacity: Allowable up to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
OSHA 1926.502 and 1910.140
