Motion Labs Hand Held Chain Hoist Remote Control, Yellow
- 4, 8, 16 or 32 Channels: Operator interface for Motion Labs chain hoist control systems via a 26-conductor cable.

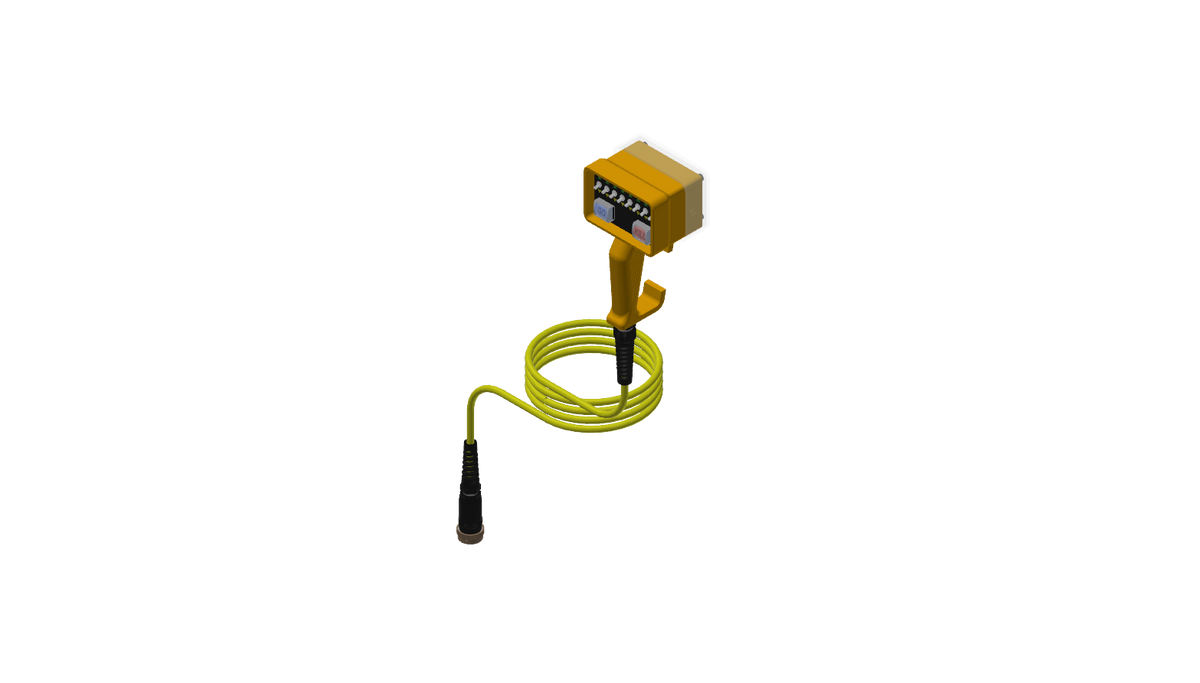

- Small Frame, 4 and 8 CH: Ergonomic yellow polyamide with integrated handle, 10 ft tail and cover.
- Large Frame, Up to 32 Hoists: Runs multiple 4, 6 or 8 channel controllers, with 2 or 4 x 5 ft tails.
- Aluminum Face Plate: Color-coordinated direction LEDs laid out next to each direction switch.
Motion Labs Hand Held Chain Hoist Remote Control, Yellow
The Motion Labs Hand Held Chain Hoist Remote Control is the operator interface for Motion Labs chain hoist control systems, connecting through a 26-conductor cable. It is available in 4, 8, 16 and 32 channel versions, with a small frame for single controllers and a large frame that can run several controllers at once.
Key Features and Highlights
- Small Frame, 4 and 8 CH: Injection-molded yellow polyamide with an ergonomic design and integrated handle, a 10 ft tail and a cover.

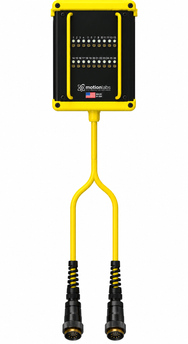

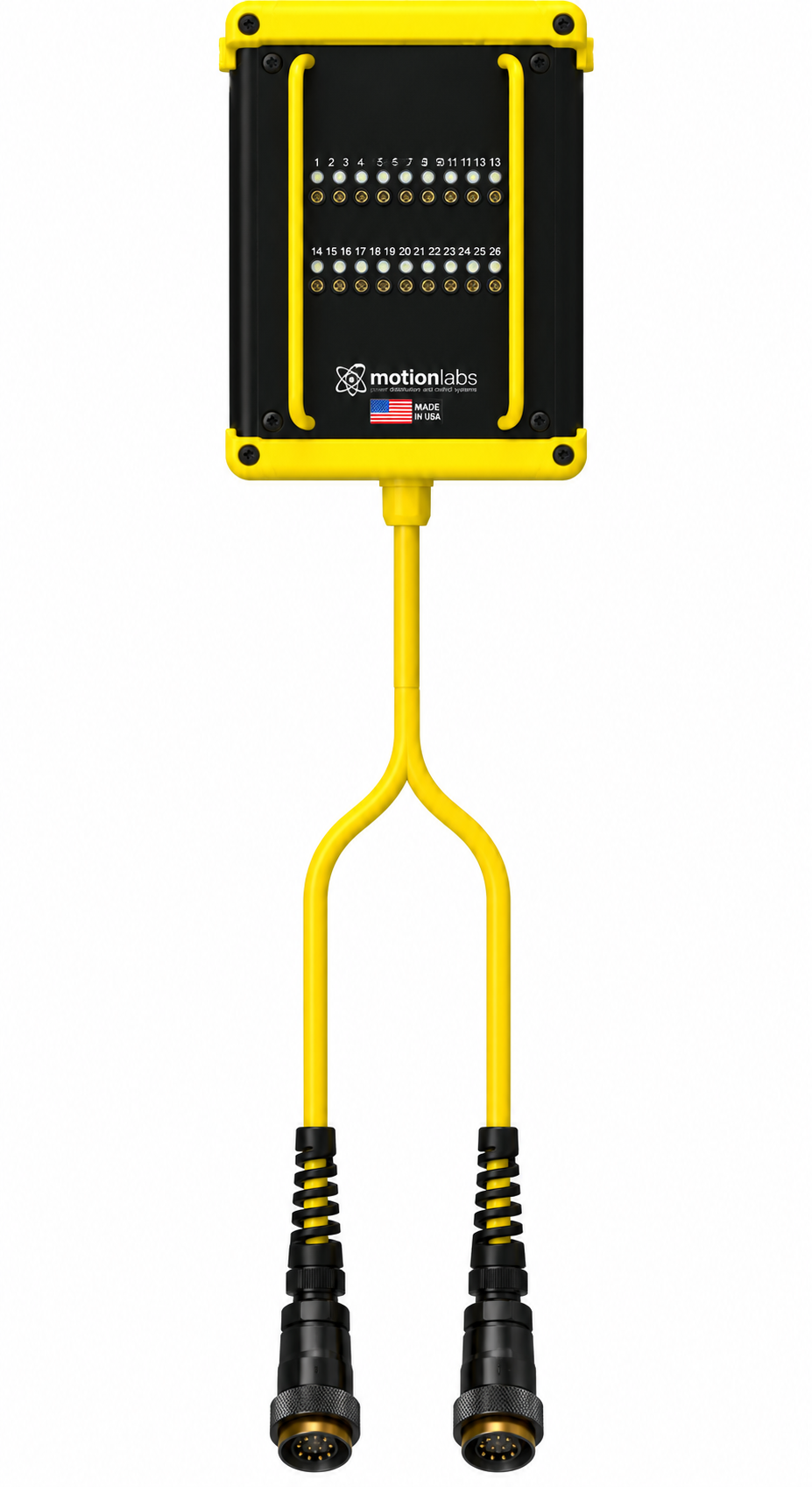

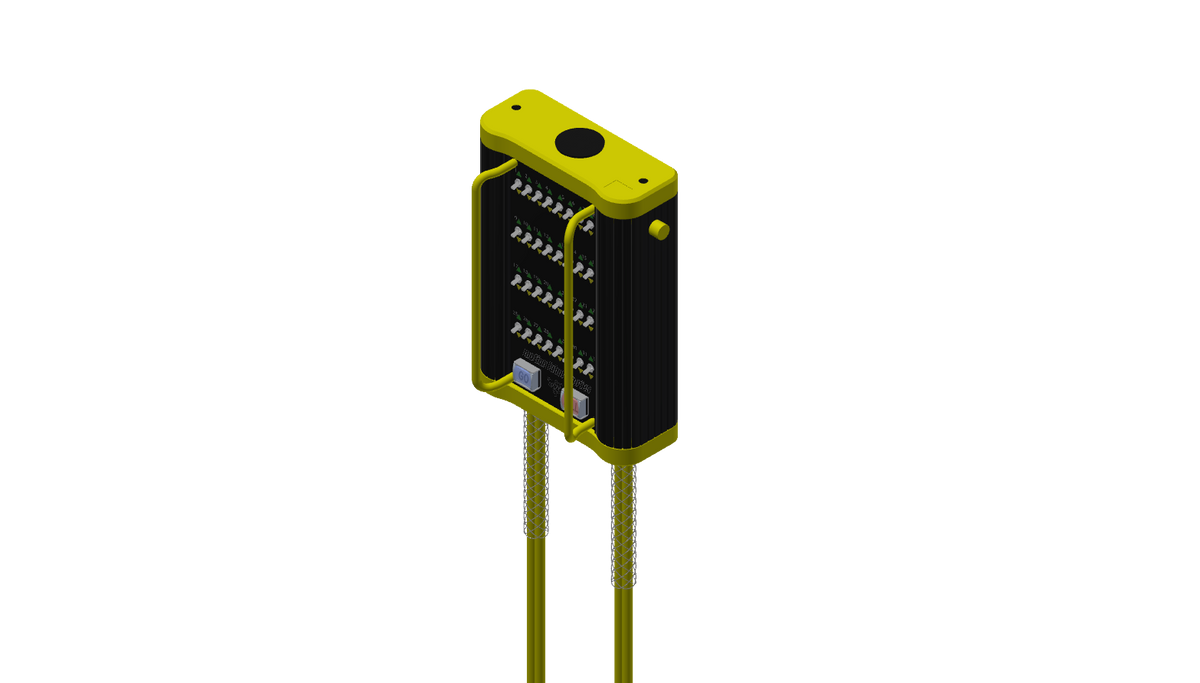

- Large Frame, 16 and 32 CH: Connects to multiple 4, 6 or 8 channel controllers to control up to 32 hoists at once. The 16 channel version has 2 x 5 ft tails and yellow offset handles, and the 32 channel version has 4 x 5 ft tails.
- Clear Operator Layout: Rugged aluminum face plates with color-coordinated direction LEDs laid out next to the direction switches.
- High-Visibility Controls: LED operator controls that are easy to read during a show.
- Durable Enclosures: Robust polyamide and polyester housings built for touring use.
Why Choose This Product?
Each direction LED sits next to its switch, so the operator can see at a glance which hoists are set to move and in which direction. A small frame remote suits a single 4 or 8 channel controller, while a large frame remote lets one operator run up to 32 hoists across several controllers from a single position.
Who Is This Product For?
Ideal for: riggers, hoist operators and rental houses running Motion Labs chain hoist control systems.
Important: Match the channel count to your controller setup. Large frame remotes are designed for systems with several 4, 6 or 8 channel controllers.
Explore Motion Labs Equipment
Explore the complete Motion Labs collection for professional power distribution, chain hoist control and cable assembly equipment. Need more reach? Add a 26 pin hoist remote extension cable in yellow or black.
For bulk orders, project requirements or pricing, Request a Quote.
