Motion Labs 4 Channel Chain Hoist Controller, Local Control
Motion Labs 4 Channel Chain Hoist Controller, Local Control $2,974.00

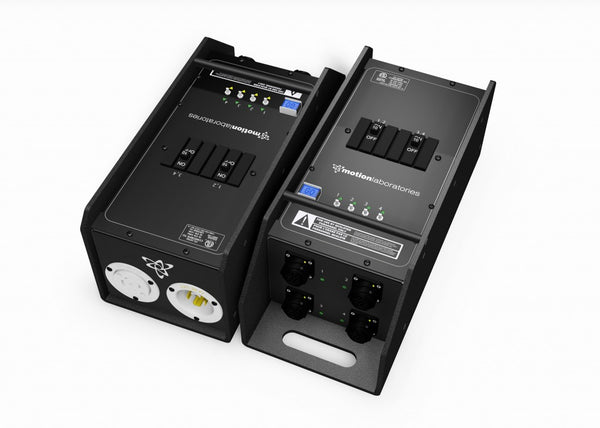

  • Motion Labs 4 channel chain hoist controller with local control, shown from both ends: L21-30 input and thru connectors and four hoist outputs

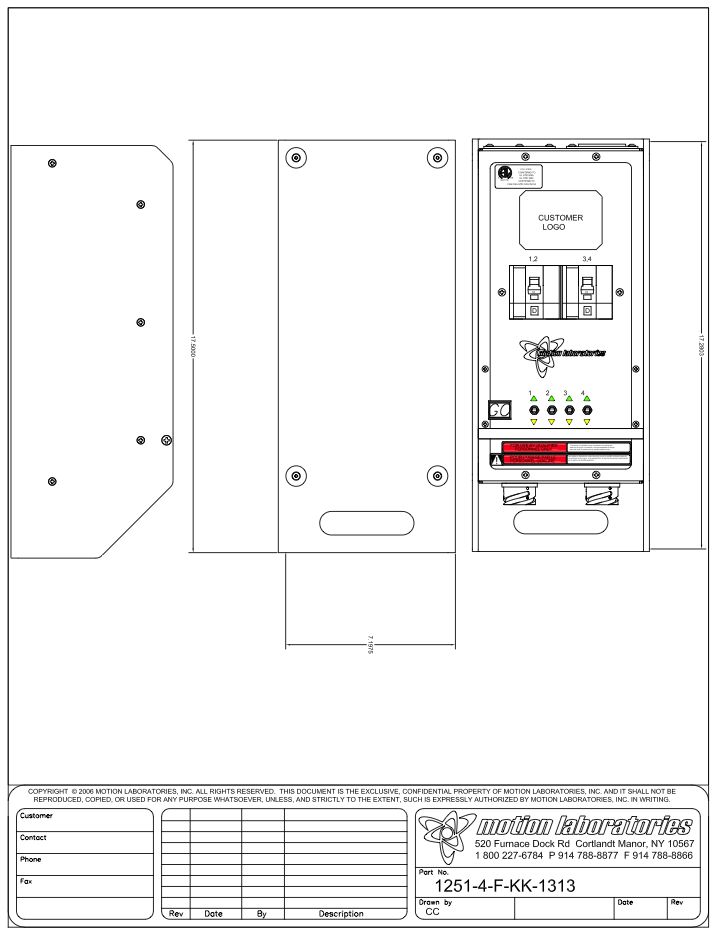

  • Motion Labs 4 channel chain hoist controller technical drawing with front and side dimension views of the low profile enclosure - imagen 2

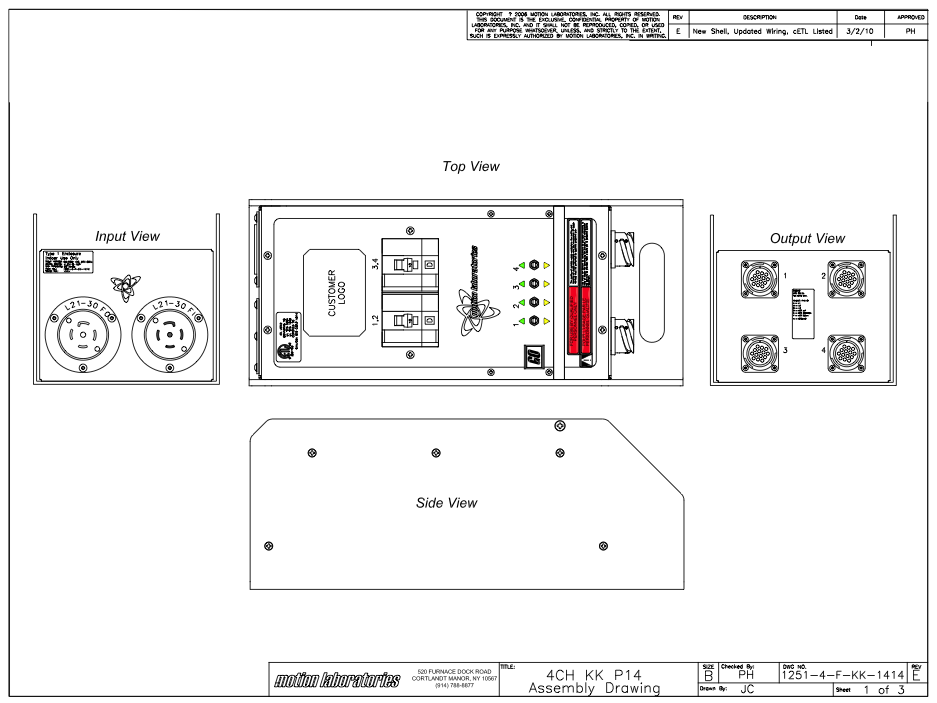

  • Motion Labs 4 channel chain hoist controller technical drawing showing input, top, side and output views with connector layout - imagen 3

Motion Labs 4 Channel Chain Hoist Controller, Local Control

Motion Labs |
SKU: 1251-4-F-KK-1313
$2,974.00
Output: C7
  • 4 Channel Local Control: Self-contained, free standing hoist controller operated at the unit, no rack needed.
  • 208V/3/60Hz, Up to 1 HP: Runs chain hoists on three-phase power, ETL listed.
  • L21-30 In/Thru: Power input with a thru connection to pass power on to another unit.
  • C7 or 4 x P14 Outputs: Choose the output version that matches your hoist cables.
Ver descripción completa Datos técnicos
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Seleccione el país
Ingrese el código postal correcto

También te puede gustar

Test heading

Motion Labs 4 Channel Chain Hoist Controller, Local Control

The Motion Labs 4 Channel Chain Hoist Controller is a self-contained, free standing hoist control with local control on the unit. Designed for locations where a full rack system is not necessary or practical, it runs four hoists of up to 1 HP on 208V three-phase 60Hz power, with an L21-30 in/thru input and an ETL listing.

Key Features and Highlights

  • Self-Contained, Free Standing: Compact low profile unit that works without a rack.
  • Local Control: Operate all four hoist channels directly from the unit.
  • 208V/3/60Hz, Up to 1 HP: Runs four chain hoists of up to 1 HP each.
  • L21-30 In/Thru: L21-30 input with a thru connection to feed the next unit.
  • C7 or P14 Outputs: Choose a C7 output (pinout C7-30) or four P14 outputs to match your hoist cables.
  • ETL Listed: Both versions are ETL listed.

Why Choose This Product?

Not every job needs a full rack of hoist control. This free standing unit gives you four channels of local control in a compact enclosure, and the L21-30 thru connection lets you pass power on to another unit.

Who Is This Product For?

Ideal for: riggers and production crews running small hoist setups, where a compact controller operated at the unit is more practical than a rack system.

Important: The output connector depends on the version, C7 or P14. Make sure it matches your hoist cables before ordering.

Explore Motion Labs Equipment

Explore the complete Motion Labs collection for professional power distribution, chain hoist control and cable assembly equipment.

For bulk orders, project requirements or pricing, Request a Quote.

Preguntas frecuentes

What is the difference between the two versions of the Motion Labs 4 Channel Chain Hoist Controller?
Both versions of the Motion Labs 4 Channel Chain Hoist Controller share the same 4 channel local control, L21-30 in/thru input and 208V three phase rating. The 1251-4-F-KK-1313 has a C7 output, while the 1251-4-F-KK-1414 has four P14 outputs.
Does the Motion Labs 4 Channel Chain Hoist Controller need a rack?
No. The Motion Labs 4 Channel Chain Hoist Controller is a self-contained, free standing unit in a low profile enclosure. Motion Labs designed it for locations where a full rack system is not necessary or practical.
What power does the Motion Labs 4 Channel Chain Hoist Controller require?
The Motion Labs 4 Channel Chain Hoist Controller runs on 208V three phase 60Hz power through an L21-30 input. It has a thru connection on the same connector type and controls chain hoists of up to 1 HP.
Is the Motion Labs 4 Channel Chain Hoist Controller certified?
Yes. Both versions of the Motion Labs 4 Channel Chain Hoist Controller are ETL listed. Each unit offers local control, so the operator can run all four hoist channels directly from the controller.
