Motion Labs Dual Twist Hoist Motor Cable, Overmold Y 16/7 $284.00

Motion Labs Dual Twist Hoist Motor Cable, Overmold Y 16/7

Name: Motion Labs Dual Twist Hoist Motor Cable, Overmold Y 16/7
Brand: Motion Labs
SKU: 1410-04-30-04-001
Price: 284.0 USD
Availability: InStock

Motion Labs |

SKU: 1410-04-30-04-001

$284.00

Connector: L16-20/L14-20 (P/O 0900-01)

Length: 25 ft

Overmolded Y: Splits one cable into separate twistlock power and control connectors at each end.
L16-20 or L5-20 Power: Both versions use L14-20 control, with pinout P/O 0900-01 or 1100-01.
16/7 SEOOW Cable: 16 AWG, 7 conductors, with a strain relief dog clip on the hoist end.
25 ft to 150 ft: Six lengths in both versions, with clear heat shrink on each end for labels.

Ver descripción completa Datos técnicos

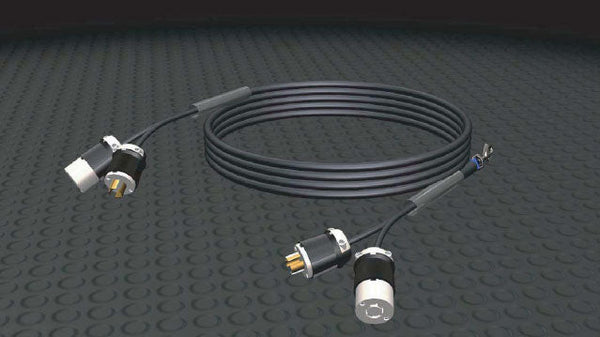

Motion Labs Overmold Y Dual Twist Hoist Cable 16/7 SEOOW

The Motion Labs Overmold Y Dual Twist Hoist Cable is a 16/7 SEOOW hoist cable that splits power and control into two twist connectors, with a dog clip. It is offered with L16-20/L14-20 or L5-20/L14-20 connectors and in lengths from 25 ft to 150 ft.

Key Features and Highlights

Overmold Y Design: Overmolded Y cable with a Dual Twist power and control connection.
Connector Versions: L16-20 power with L14-20 control, or L5-20 power with L14-20 control.
16/7 SEOOW Cable: 16 AWG, 7-conductor SEOOW cable.
Dog Clip: Supplied with a dog clip. The 125 ft and 150 ft versions list the dog clip on the motor end.
Length Options: 25 ft, 50 ft, 75 ft, 100 ft, 125 ft or 150 ft.

Why Choose This Product?

Overmolded connectors replace metal backshells, and the manufacturer states overmolding improves shock absorption, pull strength and strain and flex relief. Both connector versions come in the same six lengths.

Who Is This Product For?

Ideal for: riggers and production crews connecting hoists with Dual Twist power and control connectors.

Important: Confirm the connector pairing and pinout with your hoist control before ordering.

Compatibility and Applications

The manufacturer lists the L16-20 power and L14-20 control version as a Dual Twist hoist power and control cable. The L5-20 and L14-20 version is listed separately.

Materials and Construction

The manufacturer describes overmolding as a two-step process. An injected polymer encapsulates the conductors and pins or sockets, and a rubberized outer layer replaces the metal backshell.

Explore Motion Labs Equipment

Explore the complete Motion Labs collection for professional power distribution, chain hoist control and cable assembly equipment.

For bulk orders, project requirements or pricing, Request a Quote.

Preguntas frecuentes

What is the difference between the two versions of the Motion Labs Dual Twist Hoist Motor Cable?

Both versions of the Motion Labs Dual Twist Hoist Motor Cable use an L14-20 control connector. The L16-20 version uses a 480V three phase power connector, while the L5-20 version uses a 125V single phase power connector. Match the version to your hoist motors.

What does the overmolded Y do on the Motion Labs Dual Twist Hoist Motor Cable?

The overmolded Y on the Motion Labs Dual Twist Hoist Motor Cable splits one 16/7 cable into separate power and control twistlock connectors at each end. The overmold replaces mechanical backshells, giving a sealed, durable joint between the cable and connectors.

What is the current rating of the Motion Labs Dual Twist Hoist Motor Cable?

The connectors on the L16-20 version of the Motion Labs Dual Twist Hoist Motor Cable are rated 20A, but the 16/7 SEOOW cable is rated 13A at 600V and 105°C. Always size your load to the cable rating, not the connector rating.

What lengths are available for the Motion Labs Dual Twist Hoist Motor Cable?

The Motion Labs Dual Twist Hoist Motor Cable comes in 25, 50, 75, 100, 125 and 150 ft lengths in both versions. The L16-20 version weighs from 10 lb at 25 ft to 35 lb at 150 ft, with a strain relief clip on the hoist end.
