Adaptive Technologies Group Beam Clamp – BC3-8 Open Hang Point For 5/8-11 Threaded Rod $368.00

Adaptive Technologies Group Beam Clamp – BC3-8 Open Hang Point For 5/8-11 Threaded Rod

Name: Adaptive Technologies Group Beam Clamp – BC3-8 Open Hang Point For 5/8-11 Threaded Rod
Brand: Adaptive Technologies Group
SKU: BC3-8
Price: 368.0 USD
Availability: InStock

Adaptive Technologies Group |

SKU: BC3-8

$368.00

2,100 lb (953 kg) vertical: Carries heavy overhead loads, with 1,680 lb (762 kg) still rated at 45 degrees.
3 to 8 in steel flanges: Mounts flush under common I-beam sizes with no drilling or welding.
5/8-11 threaded rod hang point: Connect eyebolts, yokes, U-brackets, truss clamps or strut.
300 lb on wood with BC-LAM-KIT: The same clamp also works on wooden and laminated beams.

Ver descripción completa Datos técnicos

Incluido

Adaptive Technologies Group Beam Clamp – BC3-8 Open Hang Point For 5/8-11 Threaded Rod

Adaptive Technologies Group Beam Clamp – BC-LAM-KIT Wood Beam Clamp Adapter

Adaptive Technologies Group Eyebolts & Eyenuts

Adaptive Technologies Group SBC-CA Swivel Arm for Beam Clamps

Adaptive Technologies Group BC3-8 Threaded Rod Beam Clamp, Open Hang Point for 5/8-11 Rod

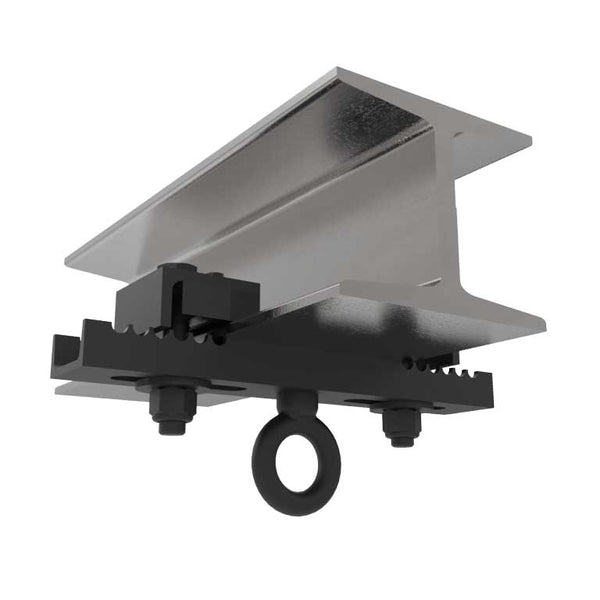

The Adaptive Technologies Group BC3-8 is a threaded rod beam clamp that mounts flush under steel beam flanges from 3 to 8 in wide. This channel-style steel beam clamp provides a single center hang point for 5/8-11 threaded rod, yokes, U-brackets, truss clamps or strut.

It is rated 2,100 lb (953 kg) on metal beams, 1,680 lb (762 kg) at 45 degrees, and 300 lb (136 kg) on wooden beams with the BC-LAM-KIT.

Key Features and Highlights

Single center hang point: For 5/8-11 threaded rod and other connections.
3 to 8 in flanges: 76 to 203 mm.
2,100 lb (953 kg) vertical: 1,680 lb (762 kg) at 45 degrees.
Wood beams: 300 lb (136 kg) with the BC-LAM-KIT.
Black powder coat: Structural C-channel.

What's in the Box

1 beam clamp channel, 3 to 8 in
2 locking angle plates
2 flat washers, 5/8 in
2 nyloc nuts, 5/8-11

Who Is This Product For?

Ideal for: Installers rigging speakers, displays and equipment from steel I-beams in venues, warehouses and commercial buildings, and from wood beams with the BC-LAM-KIT.

Important: The supplier lists both 4:1 and 5:1 design factors for this clamp. Always install safety cables.

Specifications

Part Number: BC3-8
Beam Flange Width: 3 to 8 in (76 to 203 mm)
Vertical WLL: 2,100 lb (953 kg) metal beams; 300 lb (136 kg) wood beams
45 Degree WLL: 1,680 lb (762 kg)
Rod Size: 5/8-11 threaded rod
Material: Structural C-channel
Finish: Black powder coat

Explore Adaptive Technologies Group Equipment

Explore the complete Adaptive Technologies Group collection for professional rigging and loudspeaker mounting equipment.

Shop more steel and I-beam clamps in our Beam Clamps collection and the full Rigging Hardware for Live Events range.

For bulk orders, project requirements or pricing, Request a Quote. Have questions about compatibility or product selection? Contact Us.

Preguntas frecuentes

What beam sizes does the BC3-8 beam clamp fit?

The BC3-8 fits steel beam flanges from 3 to 8 in (76 to 203 mm) wide. For wider beams, Adaptive Technologies Group offers larger clamps in the same channel style, such as the BC7-12 and BC12-17.

How much weight can the BC3-8 threaded rod beam clamp hold?

The BC3-8 is rated 2,100 lb (953 kg) vertical on metal beams and 1,680 lb (762 kg) at 45 degrees. On wooden beams with the BC-LAM-KIT adapter, the rating drops to 300 lb (136 kg). Always add a safety cable.

What can I hang from the BC3-8 beam clamp?

The BC3-8 center hang point accepts 5/8-11 threaded rod, so you can connect a 5/8-11 eyebolt, yokes, U-brackets, truss clamps or strut. This makes it a flexible attachment point for speakers, displays and overhead equipment.
