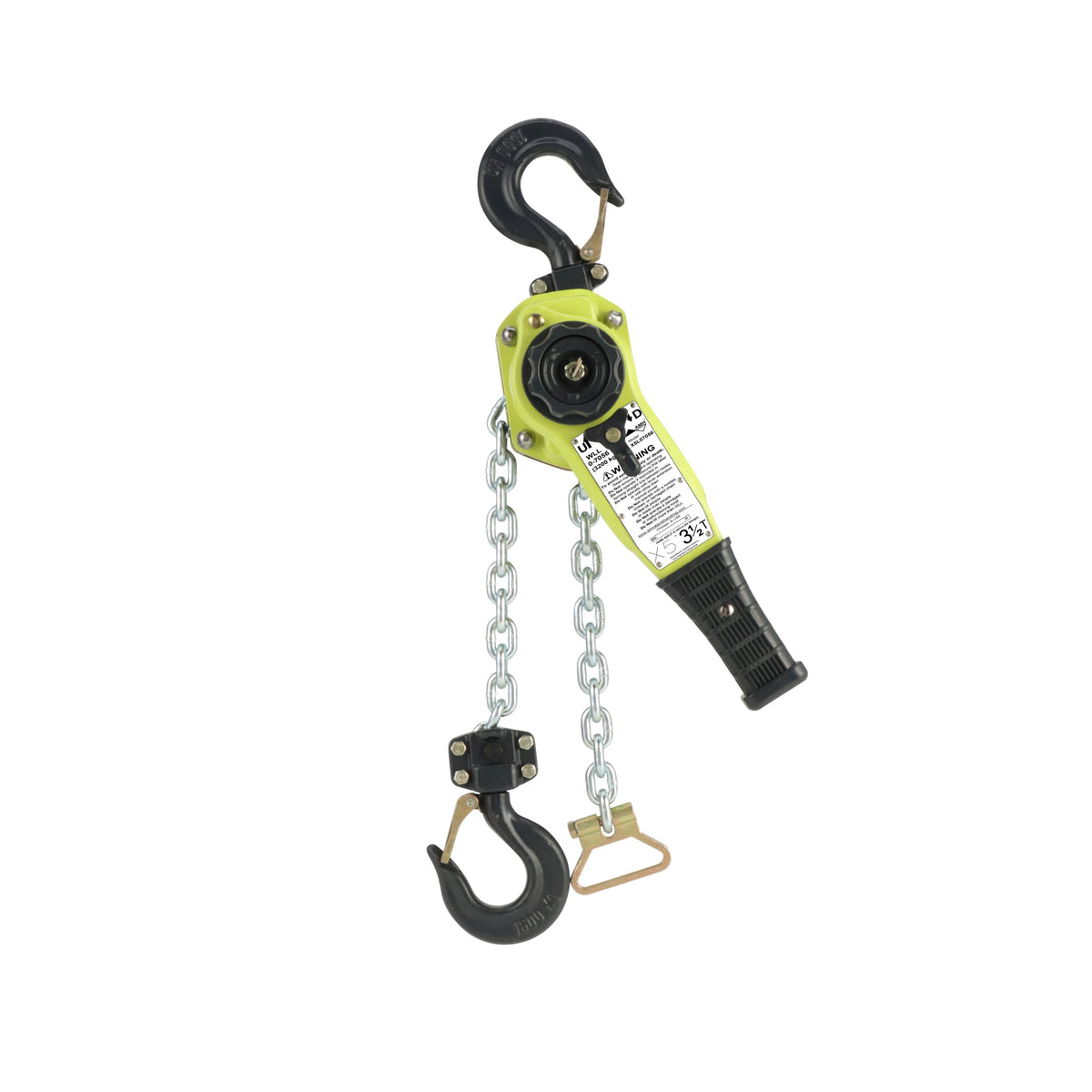

X5L Lever Hoist 3-1/2 US Ton x 05' Lift to 20' Lift

X5L Lever Hoist 3-1/2 US Ton x 05' Lift to 20' Lift

The X5L Lever Hoist 3-1/2 US Ton is a durable and powerful material handling tool with a lifting capacity of 3-1/2 US ton and a lift range of 05' to 20'. It has an exceptional brake system, all-steel body, and a Grade 100 zinc plated load chain. It comes with safety features like laser-etched stainless steel nameplates, long-life fused brake friction disc, and optional overload protection by a one-directional slip clutch. The X5L Lever Hoist meets various safety standards, has an APEX rating, and is ATEX certified for use in hazardous environments. It is easy to maintain and comes with a certificate by serial number.

• Reliable and Powerful Lifting and Positioning Tool: A powerful and reliable tool designed to cater to all your material handling needs. This lever hoist boasts a lifting capacity of 3-1/2 US ton and a lift range of 05' to 20', making it perfect for heavy-duty jobs.
• Standout Features for Easy and Safe Material Handling: Equipped with an exceptional brake system that sets and operates without minimum preload, ensuring easy and safe lifting and positioning of heavy loads. Moreover, bolted hook blocks permit easy hook replacement, and 100% inspection of hooks per ASME B30 guarantees safe operation.
• Durable and Corrosion-Resistant Construction: Built with an all-steel body, the X5L Lever Hoist 3-1/2 US Ton offers durable strength in a smaller size. The powder coat and plated external parts provide resistance against corrosion, making it last for years to come.
• High Safety Standards and Certifications: Safety is a top priority, and the X5L Lever Hoist 3-1/2 US Ton ensures it by including laser-etched stainless steel nameplates with all the necessary OSHA/ASME B30 warnings, model, and stamped serial number. The long-life fused brake friction disc cannot crack, shatter, or absorb moisture, guaranteeing reliable and safe operation. The Grade 100 zinc plated load chain, made in Japan or EU, provides exceptional strength and reliability.
• Optional Overload Protection for Added Safety: For additional safety, it comes with optional overload protection by a one-directional slip clutch that only slips in the lift direction.
• Wide Ambient Temperature Range for Versatile Use: It can withstand an ambient temperature range of -40° to +140°F (-40° to +60°C), making it ideal for use in various conditions. The X5L Lever Hoist 3-1/2 US Ton meets OSHA, ASME B30.21, and ASME HST-3 standards, and its ultimate strength is five times the Work Load Limit (WLL), meeting the structural requirements of ASME HST-3 Appendix A. It is suitable for marine and other applications as specified by the US Department of Defense DOD. Additionally, it has an APEX rating and is ATEX certified II 3GD c IIB 60ºC X for limited use in hazardous environments.
• Final Assembled and Load-Tested in the USA: Finally assembled and load-tested in the USA from imported components, ensuring the highest quality standards. It also comes with a certificate by serial number, guaranteeing that you are getting a reliable and safe product.
• Easy Maintenance with Open Chain Guard: Maintenance of the X5L Lever Hoist 3-1/2 US Ton is easy, thanks to the open chain guard that allows for easy visual inspection and doesn't trap any contaminants.

Overall, the X5L Lever Hoist 3-1/2 US Ton is a durable and reliable solution for all your material handling needs.

X5L Lever Hoist 3-1/2 US Ton x 05' Lift to 20' Lift Specifications:

• Brand: All Material Handling (AMH)
• Handle Length: 16.3"
• Hook Opening: 1.4"
• Load Capacity (in kg): 3,200
• Minimum Between Hooks: 15.6"
• Pull to Lift Rated Load (lbs): 84
