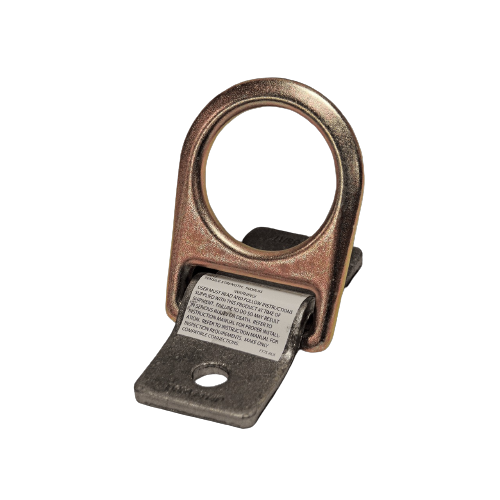

Weld-on D-ring Anchor with Unplated Installation Plate
$40.00
Weld-on D-ring Anchor with Unplated Installation Plate
$40.00
★ LABOR DAY SALE ★
SEPTEMBER 3–8
$15 OFF
$150+
Use code
LABOR15
$30 OFF
$300+
Use code
LABOR30
$50 OFF
$500+
Use code
LABOR50
Offer valid September 3–8. Discount code must be entered at checkout. Terms and exclusions may apply.
Please enter correct zip code
Weld-on D-ring Anchor with Unplated Installation Plate
FEATURES
- Features 2" x 4-1/2" unplated alloy steel anchoring plate and plated steel D-ring
- Plain steel anchoring plate is ideally suited for permanent weld-on installation.
- 1/2" holes also provided for bolt-on fixed position installation
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
Installation Plate: Unplated alloy steel
D-ring: Plated alloy; 5,000 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
