Vestil Manufacturing Corp Hand Winch Lift Trucks
Product No. A-LIFT-CB
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Product details

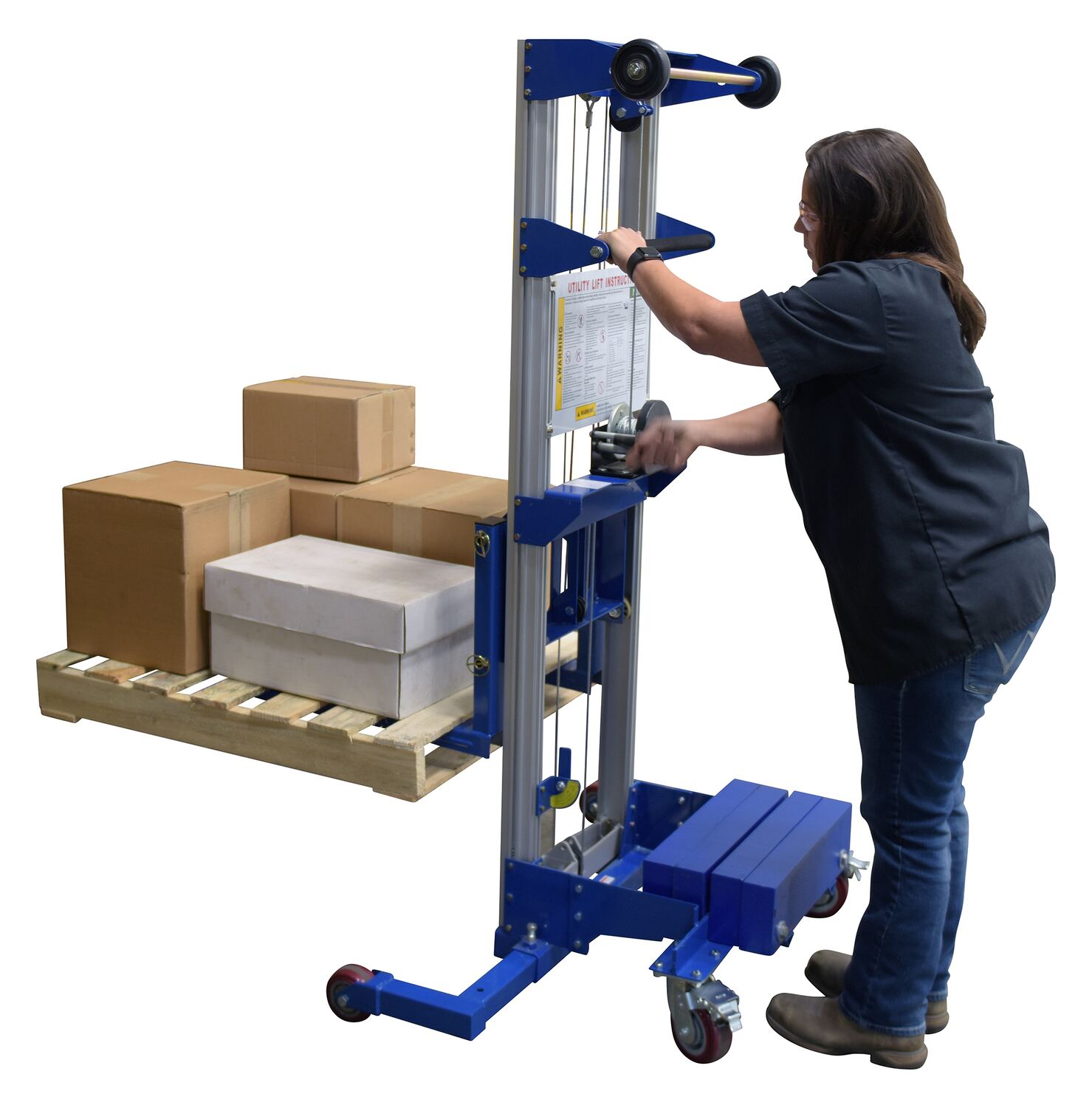

Vestil Manufacturing Corp Hand Winch Lift Trucks
Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.
Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.
- Lightweight portable lifts are great for hundreds of applications
- Manual cable winch easily raises and lowers forks
- Counterbalance weight design keeps unit from tipping with heavy loads
- Hold-down device secures carriage during transport
