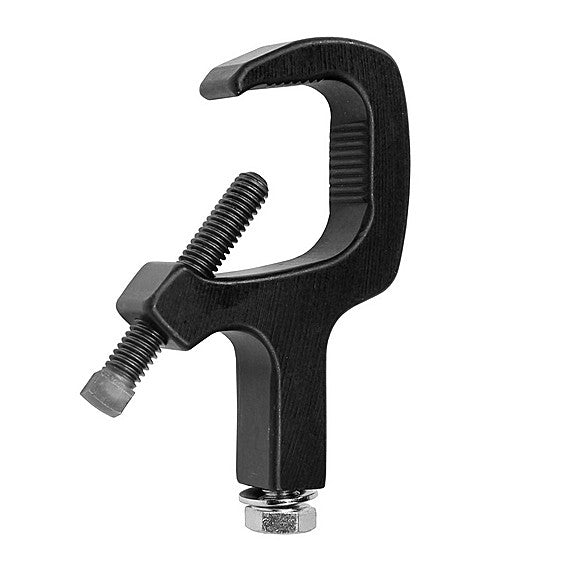

TLS Micro-Clamp

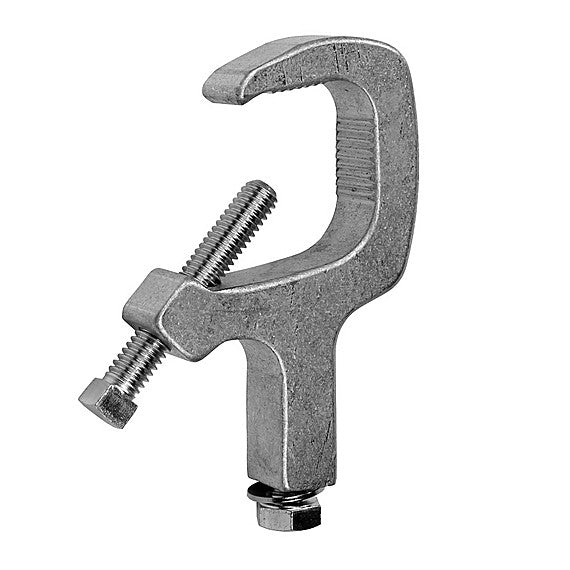

The Micro Clamp is ideal for hanging miniature fixtures like MR-16’s onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners. Available in black anodized, or polished aluminum finishes.

Please note that the old Polished Version MMC has been replaced by the MMM.

Minimum Size
3/8" pipe, .675" OD

Maximum Size
1" pipe, 1.315" OD

Working Load Limit
125 lb 55kg

Hardware
5/16″ × 3/4" long hex head Grade 5 Bolt
5/16″ × 2″ long square head case hardened set screw
Belleville spring washer.

Dimensions
3.85" Tall x 2.5" wide x .625" thick

Weight
3.2 oz

Case Quantities
48
