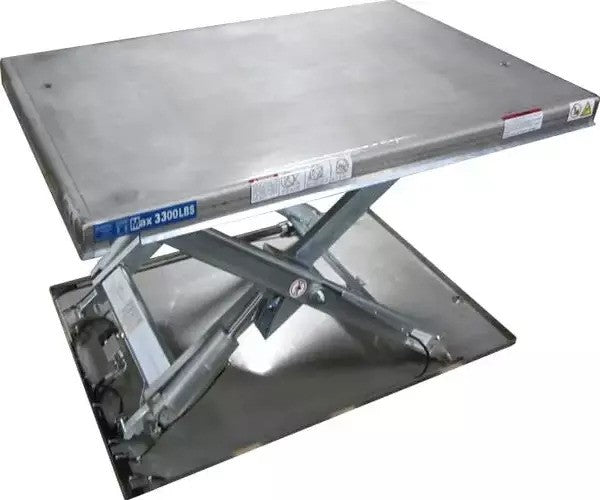

Stainless Steel LPBL-SG

The Guardian Series represents the ultimate in lift table safety with features that are optional or not available on other lift tables.

Guardian Series Low Profile models have a lowered height of only 3.25". The low profile feature provides greater flexability for tall pallet applications and operator height differences. Installation costs are reduced since the need for a floor pit is eliminated.

The Stainless / Galvanized Guardian Low Profile lift table is ideal for wet applications. The LPBL-SG series includes:

  • Stainless Steel Platform & Base
  • Cold Galvanized Scissor Frame Assembly
  • Stainless Steel Pins
  • Steel-It Epoxy Cylinders
  • IP55 Electrical Connections
  • Remote Power Unit (RPU)

Standard Features

  • Meets and exceeds both U.S. (ANSI) and EU safety standards
  • Upper platform fitted with safety perimeter which prevents descent on contact
  • Low-tension (24V) control box with up-down buttons
  • Electric circuit reset button in case the safety perimeter is actuated
  • External power pack equipped with a relief valve against overloading
  • Compensated flow valve for controlling lowering speed
  • External power pack is supplied with 8' long hoses
  • Upper limit switch
  • 115 voltage single phase standard
  • 230/460 voltage three phase available
  • Single acting cylinders with drainage system
  • Check valve to stop the lift table lowering in case of hose burst
  • Safety clearance between scissors to prevent trapping during operations
  • Mechanical blocks for safe maintenance operations
  • Self-lubricating bushings on pivot points
  • Removable lifting eye(s) to facilitate installation of the lift table

    Options

    • Hinged Ramps
    • Stainless Power Box
    • Foot Controls
    • Stainless Ramps

    Specifications


    Model Vertical
    Travel
    Capacity Height Platform
    Size
    Base
    Frame
    Up
    Speed
    Lower Upper
    LPBL-10-1-SG 30.75" 1,100 lbs 3.25" 34" 31.5" x 55" 29.5" x 52.75" 10 sec
    LPBL-10-2-SG 30.75" 1,100 lbs 3.25" 34" 39.5" x 55" 29.5" x 52.75" 10 sec
    LPBL-20-1-SG 30.75" 2,200 lbs 3.25" 34" 31.5" x 55" 29.5" x 52.75" 18 sec
    LPBL-20-2-SG 30.75" 2,200 lbs 3.25" 34" 39.5" x 55" 29.5" x 52.75" 18 sec
    LPBL-30-1-SG 29.5" 3,300 lbs 3.63" 33.13" 31.5" x 61" 29.5" x 52.75" 25 sec
    LPBL-30-2-SG 29.5" 3,300 lbs 3.63" 33.13" 39.5" x 61" 29.5" x 52.75" 25 sec
