PMI Screw Links
PMI Screw Links
Size/Shape:
Oval 4mm GS
Qty:
1
Please enter correct zip code
Screw links are more capable of supporting multi-directional forces than carabiners while still allowing ample room for a variety of gear attachments. Screw links come in a variety of shapes and sizes in either Stainless Steel (SS), Galvanized (GS), or Aluminum (A) finishes.
This product is ideal for harness attachment in ascending systems or for joining anchor straps.
NOTE: Links are stamped with a Working Load Limit (WLL) that is about 1/5th of its rated breaking strength.
Specs

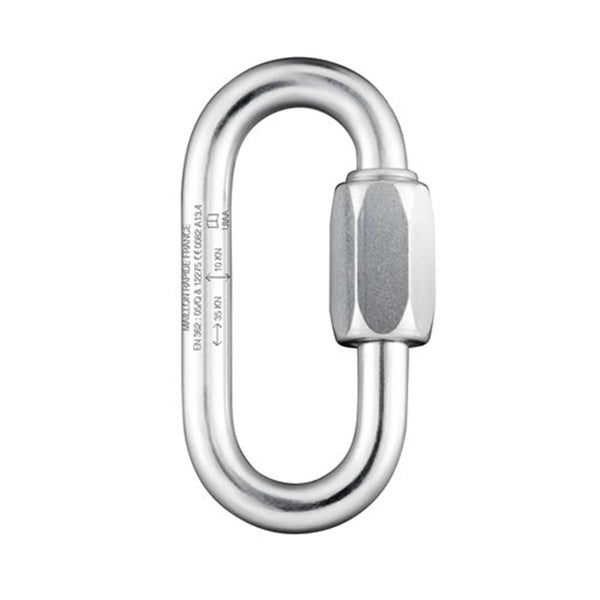

Oval 4mm, GS
- MBS: 7.9 kN (1765 lbf)
- WLL: 1.6 kN (353 lbf)
- Weight: 0.5 oz (15 g)
- Length: 2.09" (5.3 cm)
- Width: 0.92" (2.3 cm)
- Height: 0.16" (4.0 mm)
- Gate Opening: 29/64" (11.4 mm)
- Major Axis: 7.9 kN (1765 lbf)

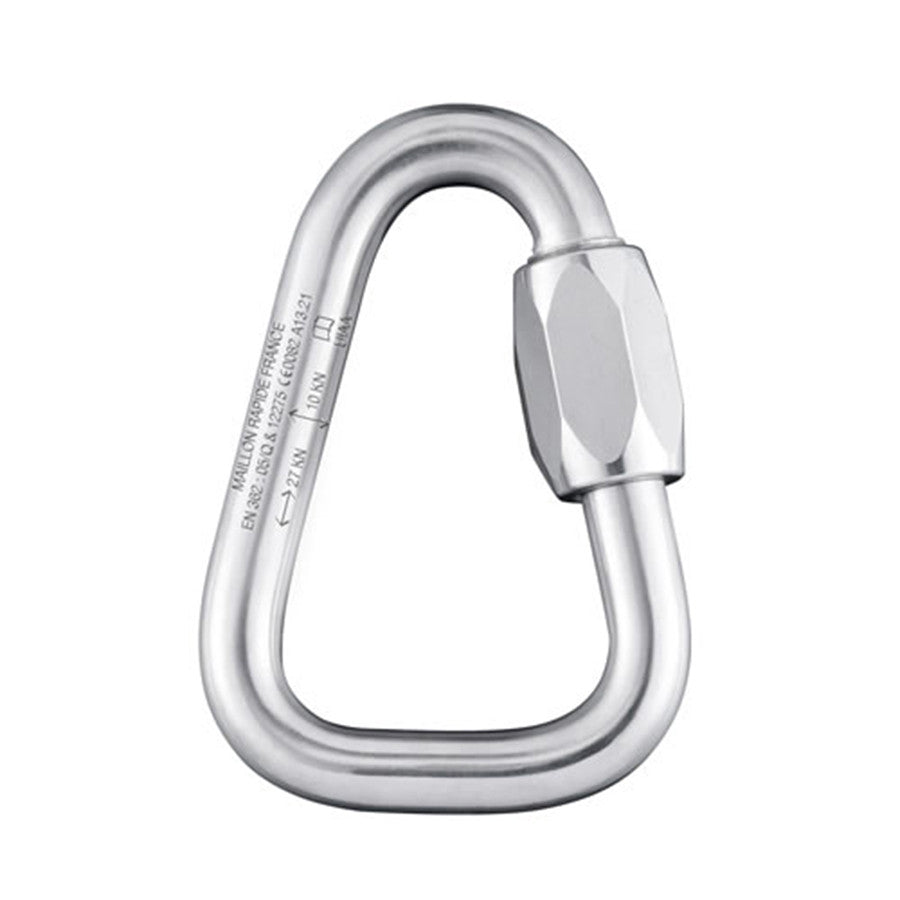

Delta 5mm, SS
- MBS: 16 kN (3575 lbf)
- WLL: 3 kN (715 lbf)
- Weight: 1.0 oz (24 g)
- Length: 1.89" (4.8 cm)
- Width: 1.58" (4.0 cm)
- Height: 0.19" (5.0 mm)
- Gate Opening: 1/4" (6.5 mm)
- Major Axis: 16 kN (3575 lbf)
- Material: Stainless Steel
Oval 5mm, SS
- MBS: 22 kN (5000 lbf)
- WLL: 4 kN (990 lbf)
- Weight: 1.0 oz (21 g)
- Length: 1.95" (4.9 cm)
- Width: 1.00" (2.5 cm)
- Height: 0.19" (5.0 mm)
- Gate Opening: 1/4" (6.5 mm)
- Major Axis: 22 kN (5000 lbf)
- Material: Stainless Steel
Oval 7mm, GS
- MBS: 27 kN (6050 lbf)
- WLL: 5 kN (1210 lbf)
- Weight: 2.0 oz (51 g)
- Length: 2.61" (6.6 cm)
- Width: 1.25" (3.2 cm)
- Height: 0.28" (7.0 mm)
- Gate Opening: 11/32" (8.5 mm)
- Major Axis: 27 kN (6050 lbf)
- Material: Galvanized Steel
Delta 7mm, GS
- MBS: 20 kN (4400 lbf)
- WLL: 4 kN (880 lbf)
- Weight: 2.0 oz (58 g)
- Length: 2.48" (6.3 cm)
- Width: 2.00" (5.1 cm)
- Height: 0.28" (7.0 mm)
- Gate Opening: 11/32" (8.5 mm)
- Major Axis: 20 kN (4400 lbf)
- Material: Galvanized Steel

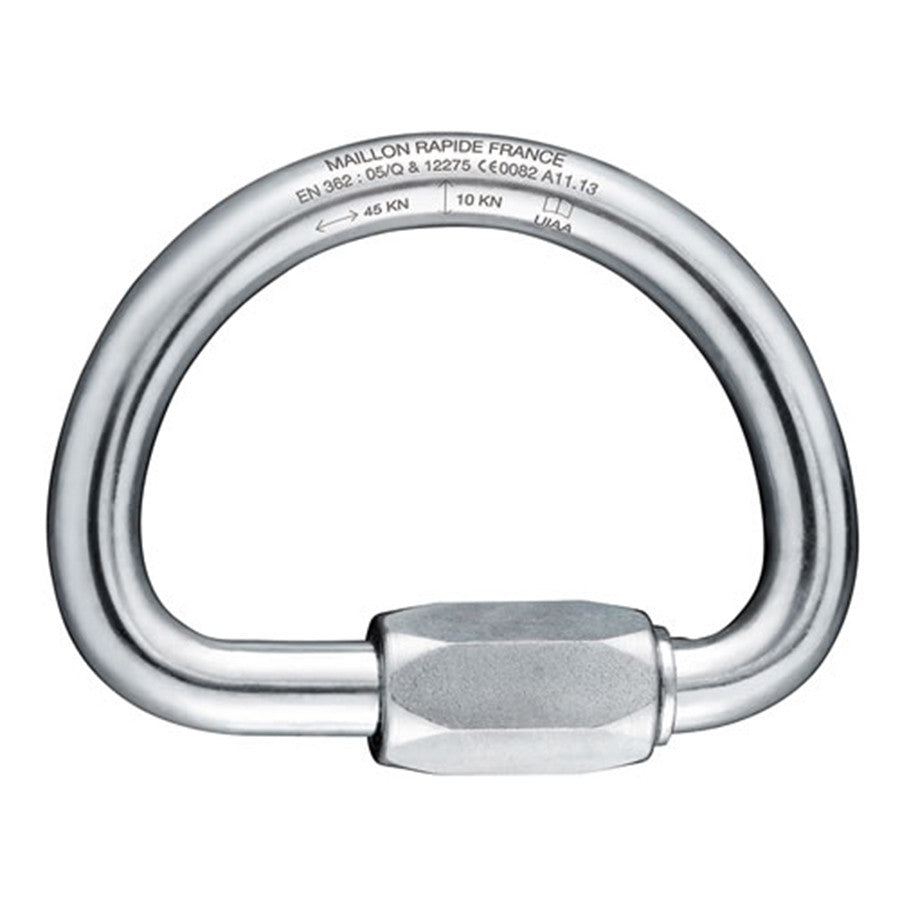

Semi-Circular 9.5mm, GS
- MBS: 44 kN (9920 lbf)
- Weight: 5.0 oz (153 g)
- Length: 3.39" (8.6 cm)
- Width: 2.75" (7.0 cm)
- Height: 0.44" (1.0 cm)
- Gate Opening: 13/32" (10.0 mm)
- Major Axis: 44 kN (9920 lbf)
- Material: Galvanized Steel
Oval 10mm, GS
- MBS: 54 kN (12125 lbf)
- WLL: 11 kN (2425 lbf)
- Weight: 5.0 oz (137 g)
- Length: 3.50" (8.9 cm)
- Width: 1.75" (4.4 cm)
- Height: 0.44" (1.0 cm)
- Gate Opening: 15/32" (12.0 mm)
- Major Axis: 54 kN (12125 lbf)
- Material: Galvanized Steel
Delta 10mm, A
- MBS: 17 kN (3860 lbf)
- WLL: 3 kN (770 lbf)
- Weight: 2.0 oz (55 g)
- Length: 3.42" (8.7 cm)
- Width: 2.61" (6.6 cm)
- Height: 0.44" (1.0 cm)
- Gate Opening: 15/32" (12.0 mm)
- Major Axis: 17 kN (3860 lbf)
- Material: Aluminum
Delta 10 mm, GS
- MBS: 42 kN (9525 lbf)
- WLL: 9 kN (1985 lbf)
- Weight: 5.0 oz (153 g)
- Length: 3.42" (8.7 cm)
- Width: 2.61" (6.6 cm)
- Height: 0.44" (1.0 cm)
- Gate Opening: 15/32" (12.0 mm)
- Major Axis: 42 kN (9525 lbf)
- Material: Galvanized Steel

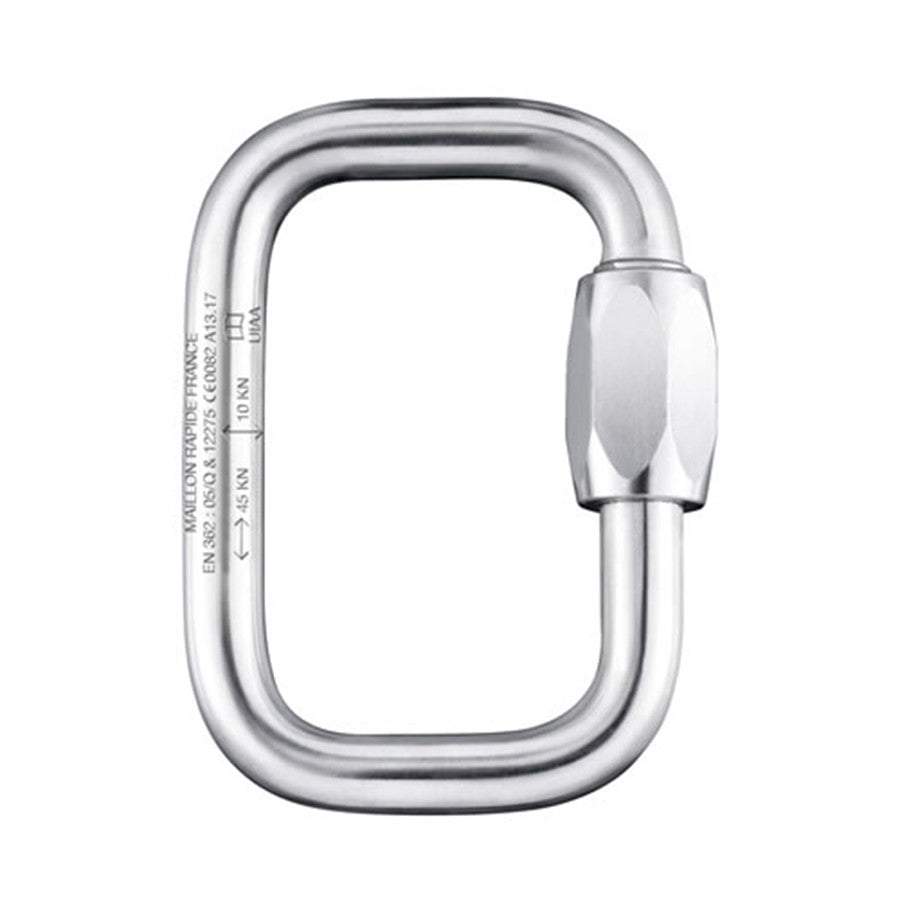

Square 10mm, GS
- MBS: 44 kN (9925 lbf)
- WLL: 9 kN (1985 lbf)
- Weight: 6.0 oz (168 g)
- Length: 3.48" (9.2 cm)
- Width: 2.48" (6.3 cm)
- Height: 0.44" (1.0 cm)
- Gate Opening: 15/32" (12.0 mm)
- Major Axis: 44 kN (9925 lbf)
- Material: Galvanized Steel
