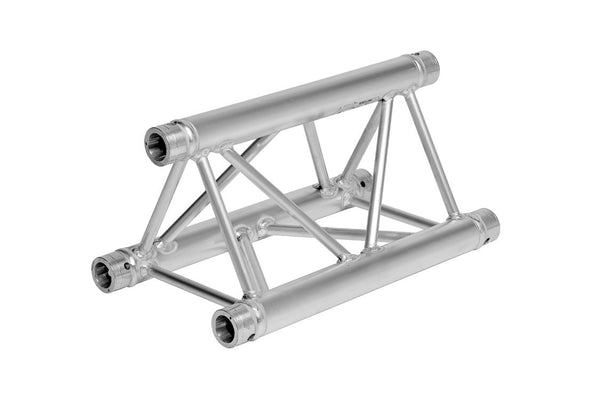

Prolyte Truss- X30D Triangle Profile
Product No. X30D-L100
Shipping calculator
Please enter correct zip code
Payment methods
Product details

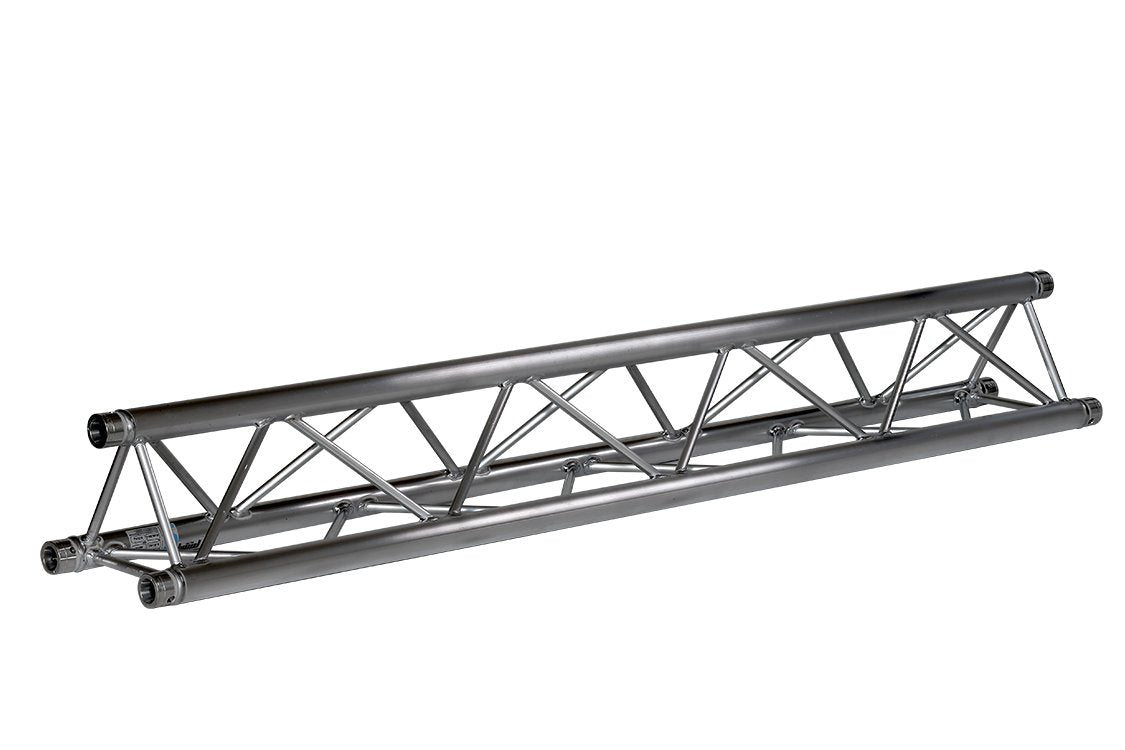

X30 truss is constructed of main tubes (51 x 2 mm) and diagonals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the X30 truss is fast and easy to assemble. The X30 truss can be found in rental fleets all over the globe, where its low volume and flexible application possibilities makes it the ideal truss for exhibitions and low intensity rental jobs. X30 truss is available in ladder, triangular and square profiles and a range of corners and accessories.
IN-STOCK PRODUCTS WILL SHIP WITHIN 3 BUSINESS DAYS; SOME PRODUCTS MAY TAKE LONGER
LOADING TABLE | |||||
Span
|
Maximum Uniformly Distributed Load | Maximum Centre Point Load | |||
Length (m) | Total Weight (kg) | Load (kg/m) | Deflection (mm) | Load (kg/m) | Deflection (mm) |
3 | 11.4 | 443.7 | 13 | 576.3 | 10 |
6 | 22.8 | 108.4 | 52 | 302.2 | 42 |
9 | 34.2 | 46.3 | 118 | 198.6 | 94 |
12 | 45.6 | 24.5 | 210 | 142.3 | 168 |
15 | 57 | 14.5 | 328 | 105.8 | 262 |
