Petzl JAG Double Pulley

Petzl JAG Double Pulley

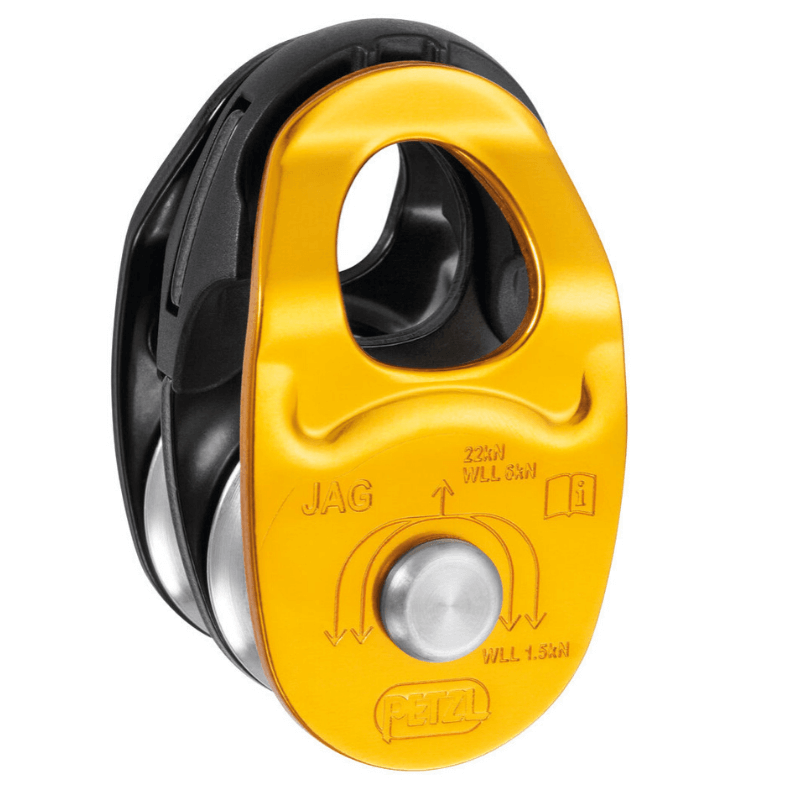

The Petzl JAG is a lightweight, high-efficiency Double Pulley designed for use with the JAG TRAXION Double Progress Capture Pulley to make a 4:1 haul system. Sheaves are mounted on sealed ball bearings for excellent efficiency. The JAG is compatible with ropes of minimum diameter 0.31'' and maximum diameter of 0.43''.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Material(s): Aluminum, Nylon
• Weight: 0.26 lbs
• Min. Rope Diameter: 0.31''
• Max. Rope Diameter: 0.43''
• Sheave Type: Sealed Ball Bearings
• Sheave Diameter: 0.98''
• Maximum Working Load: 2 × 1.5 kN × 2 = 6 kN
• Breaking Strength: 2 × 4 kN × 2 = 16 kN
• Efficiency: 91%
• Certification(s): CE EN 12278, NFPA 1983 Technical Use

FEATURES

• Designed for use with the JAG TRAXION Double Progress Capture Pulley to make a 4:1 haul system
• Sheaves mounted on sealed ball bearings for excellent efficiency

RESOURCES

Technical Notice

Declaration of Conformity

PPE Inspection Procedure
