OZ Lifting Beam Clamps

Product No. OZ1BC

Regular price $65.83 $65.83
New Year Sale – Tiered Savings Sitewide
$25 off $250 – With Code NEWYEAR25
$50 off $500 – With Code NEWYEAR50
$100 off $1000 – With Code NEWYEAR100
Sale ends soon…

View our Promotion Policy

CAPACITY
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

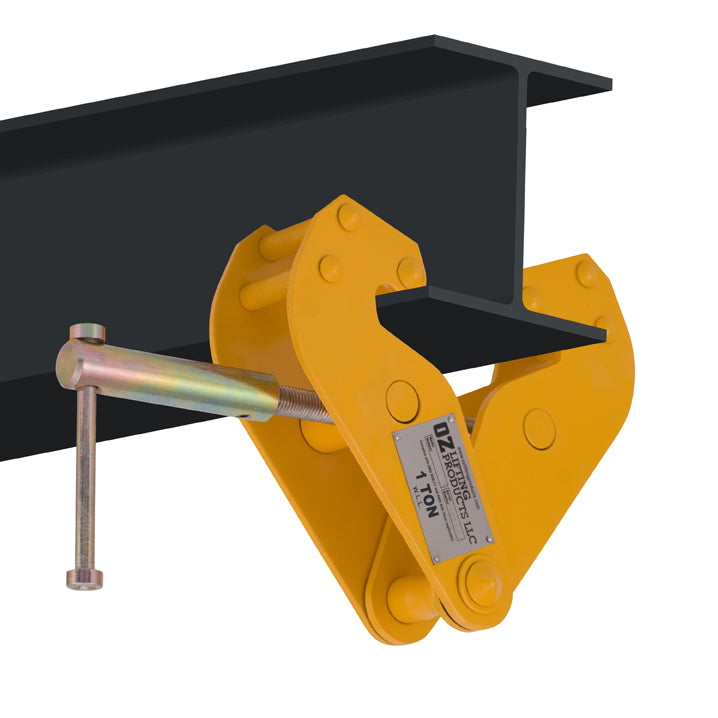

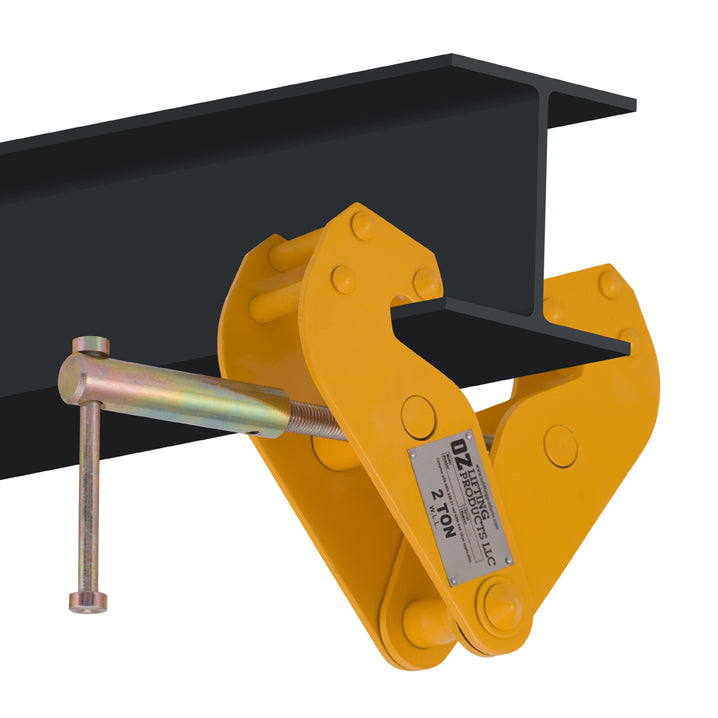

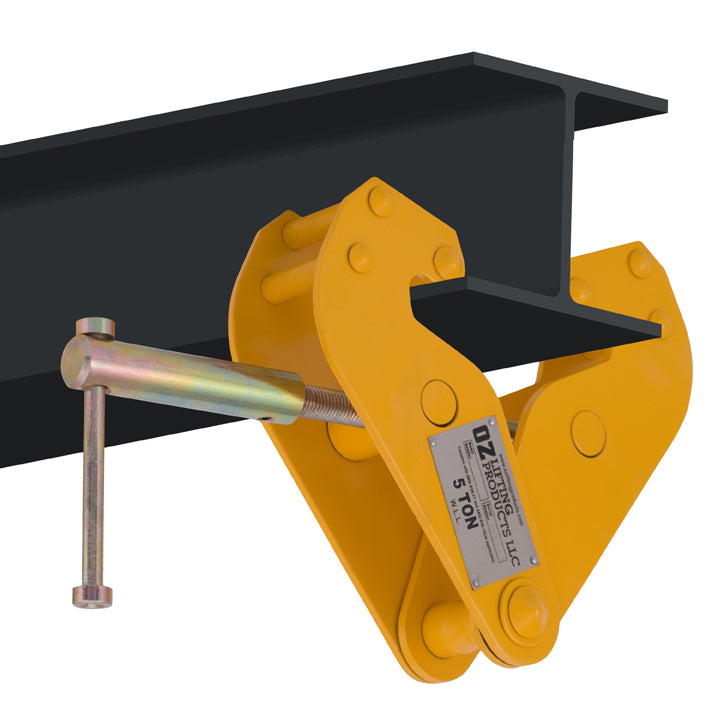

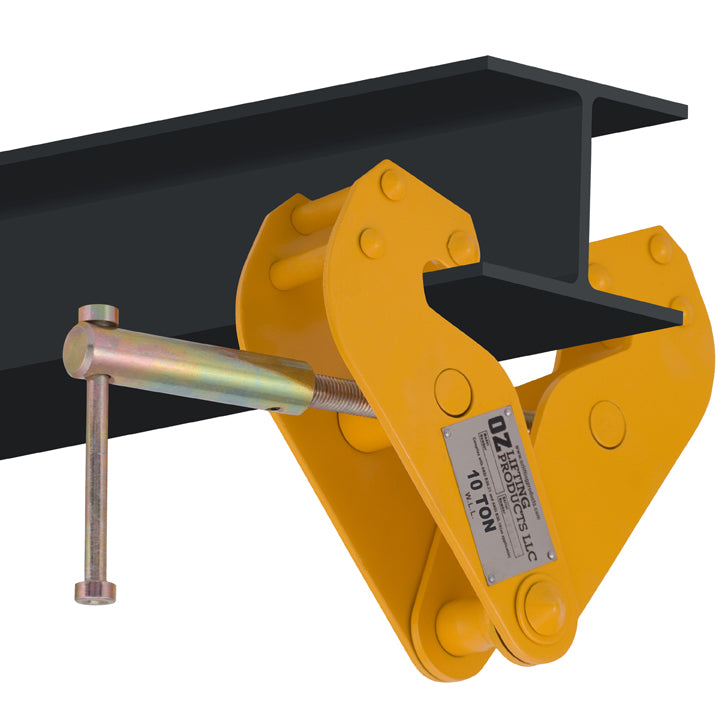

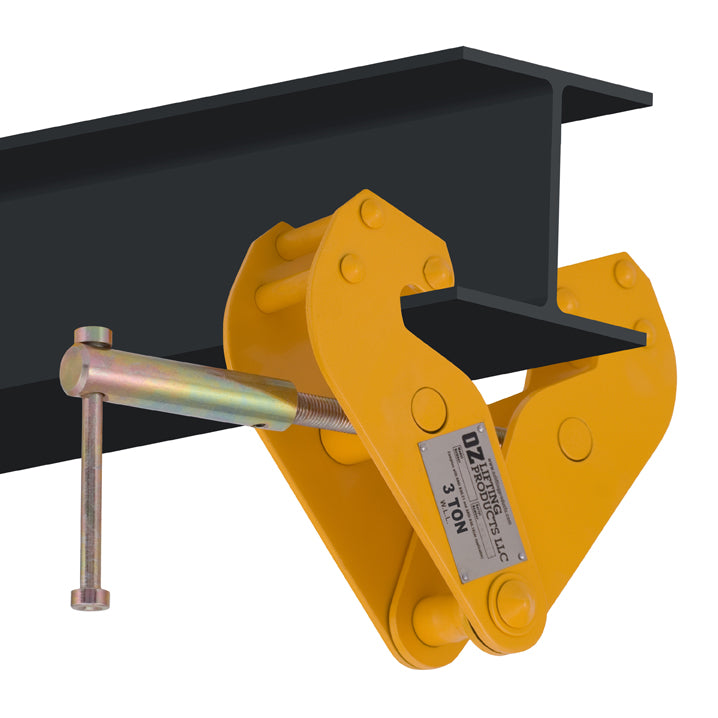

OZ Lifting Beam Clamps

 The Oz Lifting beam clamps can quickly and securely fasten onto most I-beams to support weight ranging from 1 ton to 10 tons. The robust clamp is fully-welded with an all-steel construction making it highly durable and dependable.

FEATURES

  • Robust all-steel fully-welded construction
  • Super-quick adjustment to fit most I-Beams (see measurements below)
  • Durable baked-enamel paint protection
  • Stainless steel ID tag
  • Individual test certificate and serial number
Standards – CE, ASME B30.16
(for use with manual or powered hoists)

    OZ1BC OZ2BC OZ3BC OZ5BC OZ10BC
Safe working load (lbs)   2,000 4,000 6,000 10,000 20,000
  A 2.95-9.05 2.95-9.05 3.15-12.60 3.15-12.60 3.54-12.60
  B 14.96 max. 14.96 max. 18.50 max. 19.68 max. 20.47 max.
  C 2.51 2.91 3.94 4.41 4.72
Dimensions (in) D .90 .90 1.57 1.57 1.60
  E 9.13 9.13 10.63 10.90 11.22
  F 3.54-5.90 3.54-5.90 5.71-8.66 5.71-8.66 6.30-9.05
  G 1.02 1.02 2.63 3.50 3.87
  H .75 .87 .96 1.30 1.60
Net Weight (lbs)   9 11 21 25 35




Reduction in Working Load Limits when side loads are applied

Angle from Vertical 0° 0-15° 15-30° 30-45°
Reduction Factor none 20% 35% 50%
