MTN Trigger Clamp
$32.73
MTN Trigger Clamp
$32.73
Surface Treatment:
Silver Polishing
Please enter correct zip code

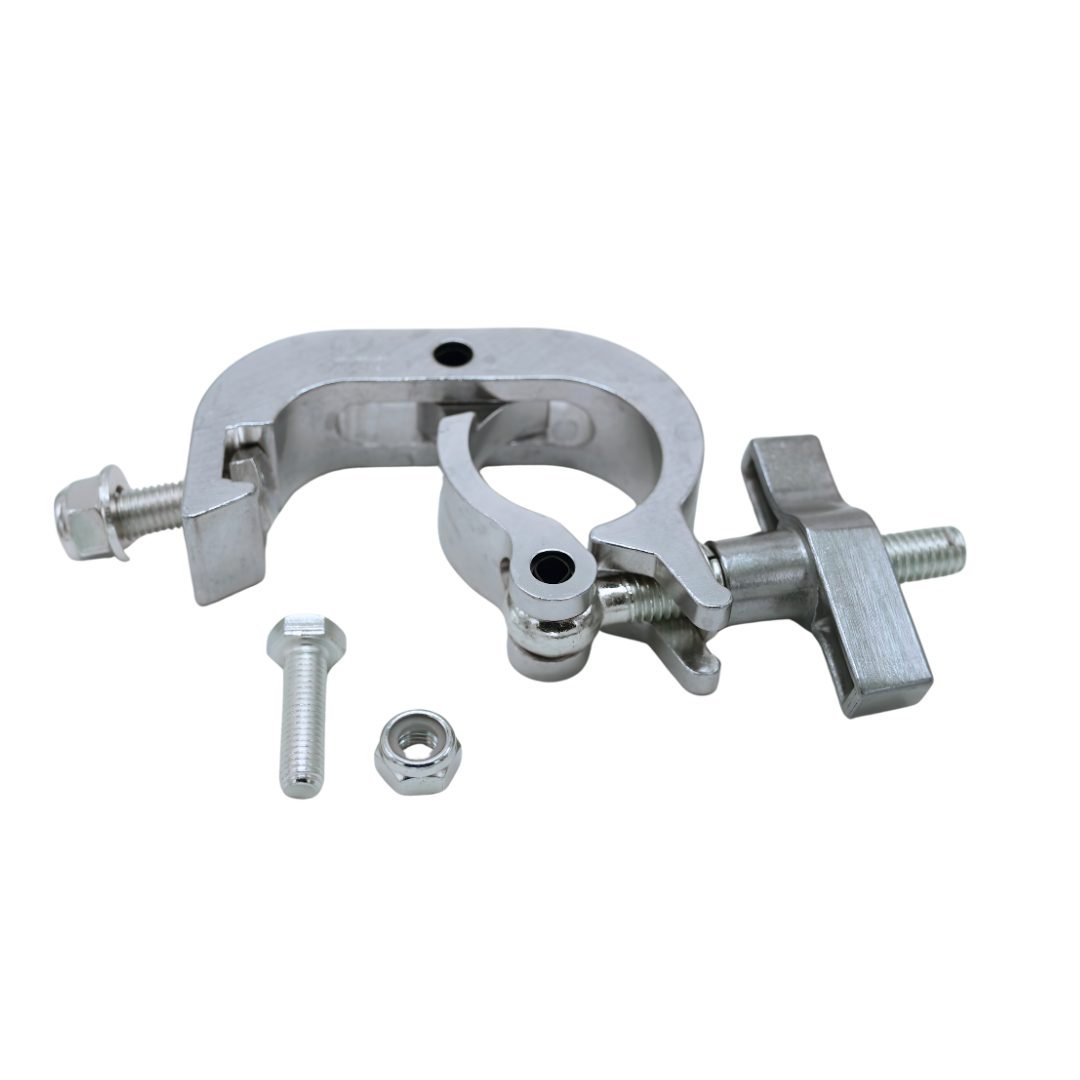

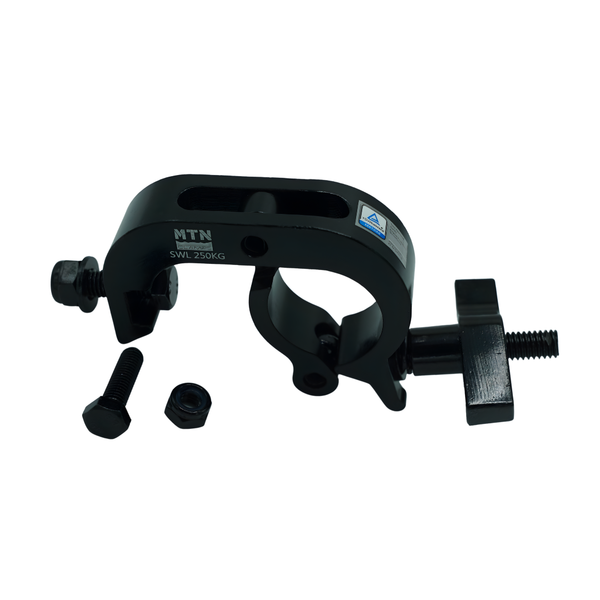

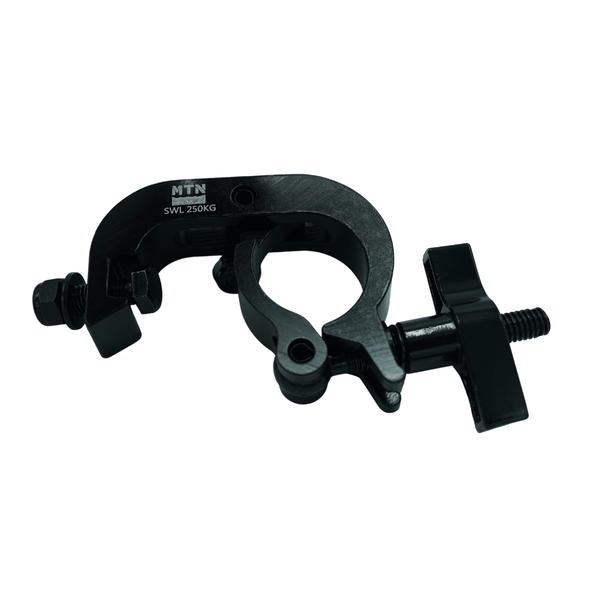

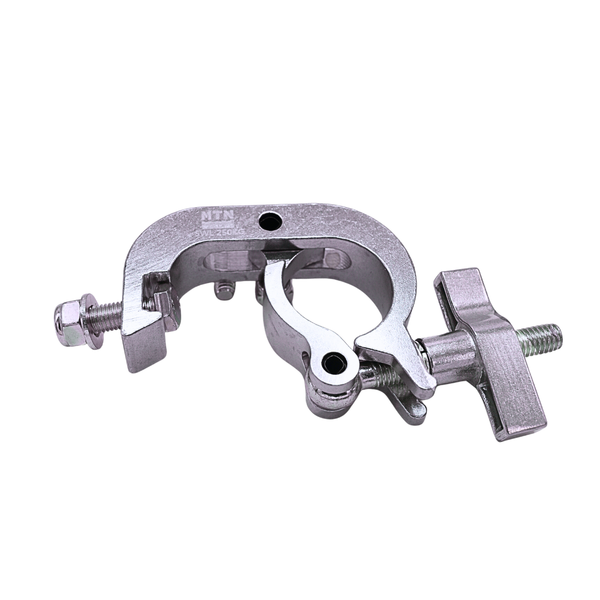

MTN Trigger Clamp
The MTN Trigger Clamp features a top die-casting aluminum S handle that can be changed for a steel wing nut. TUV certified with a 551 lb Safe Working Load, this heavy-duty 1.18" wide trigger clamp is available in silver polished or black anodized finishes offering durability and versatility.
The wider bottom groove accommodates M12 or 1/2"-13 hex-head fasteners, and an additional M10 bolt is supplied with the clamp.
Downloads:
Key Features:
- Heavy-duty 1.18" wide trigger clamp
- TÜV certified with a 551 lb Safe Working Load
- Top die-casting aluminum S handle for secure grip and control
- Optional steel wing nut for alternative fastening preferences
- Bottom mounting accommodates 1/2"-13 hex-head fasteners
- Additional M10 bolt supplied
- Available in silver polished or black anodized finishes
- Engineered for high durability and versatile applications
Specifications:
- Width: 1.8″
- Material: Aluminum Alloy (Al 6061-T6)
- Fit Tube OD: 1.8″ – 2.05″
- Safe Working Load: 551 lbs
- Surface Treatment: Silver Polishing
References:
- Unit Weight: 0.97 lbs
- Certification: TUV Certified
- Finish Options: Silver Polished or Black Anodized
