Lift Products Inc Moto-Tanker
Product No. JRMC-10-TK
Shipping calculator
Payment methods
Product details

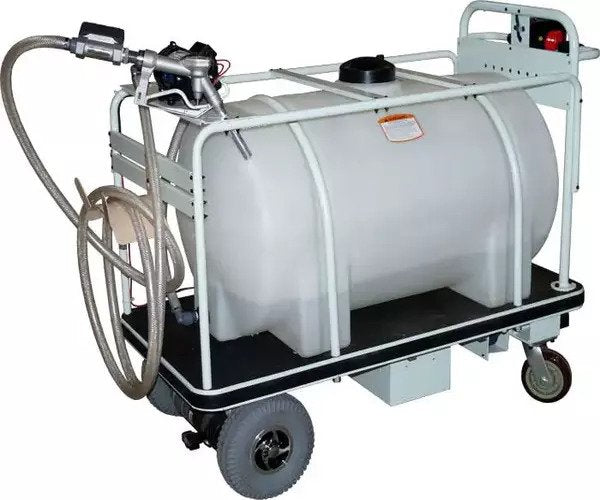

Moto-Tanker
The Moto-Tanker is a modified version of our popular Moto-Cart Jr. series of electric platform trucks with all of the features of that series including advanced roller grip controls, a front-wheel transaxle drive with automatic electro-mechanical braking, and an onboard charger. The Moto-Tanker has (1) 65 gallon tank or (2) 35 gallon tanks mounted and secured to the platform by rolled steel tubes. Liquid is dispensed from the tank up to 7 GPM at 60 PSI from a self-priming diaphragm pump which flows through an in-line meter with a +/- 1% accuracy rating and out of a 3/4" farm nozzle with built-in swivel.
Able to handle inclines up to 6 degrees as well as transverse into and out of elevators, the Moto-Tanker is suitable for numerous non-flammable and non-petroleum based applications. From dispensing machine coolant throughout a factory to performing regular plant maintenance in indoor spaces such as shopping malls or large offices, The 1,000 lbs capacity Moto-Tanker will improve the efficiency and ergonomics of those tasks as well as many others.
Standard Features
-
Self-Priming Diaphragm Pump
-
Inline Fuse Protection
-
Automatic Shut Off When No Flow
-
Farm Nozzle with Swivel
-
Comfortable Ergonomic Handle
-
Roller Grip Controls
-
Variable Speed
-
Adjustable Top Speed
-
Power Red Light
-
Emergency Stop Bump Switch
-
Key Switch
-
Automatic Breaking
-
24 Volt Electrical System
-
Curtis Controls
-
Color: White w/Black Deck Mat
-
Battery Reset Switch
-
FDA/NSF Approved Tank
-
Molded-In Legs Reduce Sloshing
-
+/-1% Accuracy In-Line Flow Meter
-
Meter Easily Field Calibrated
-
Display ga/oz/pt/qt/l
-
Slide Out Battery Tray
-
Brake Disengage Button
-
(2) 33 AMP Batteries
-
On-Board UL-Charger
-
Free Wheel Mode
-
Pneumatic Rubber Drive Wheels
-
Poly Casters
-
Front Wheel Transaxle Drive
-
Battery Gauge
-
Full Perimeter Bumper
- Back-Up Beeper
Specifications
| Model | Capacity | Tank | Overall Size |
Height | Max Incline |
Weight | |
|---|---|---|---|---|---|---|---|
| Deck | Handle | ||||||
| JRMC-10-TK1 | 1,000 lbs | (1) 65 Gal. | 25" x 52.5" | 12.5" | 43" | 6° | 475 lbs |
| JRMC-10-TK2 | 1,000 lbs | (2) 35 Gal. | 36" x 52.5" | 12.5" | 43" | 6° | 530 lbs |
