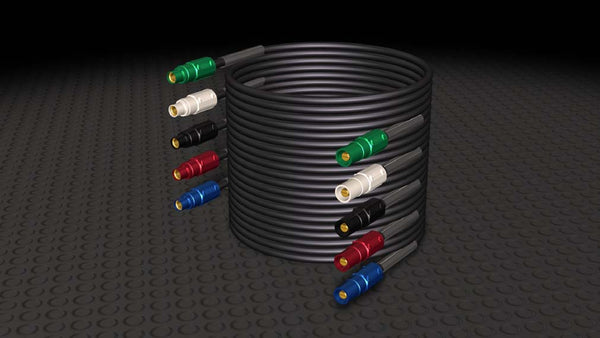

Motion Labs Camlock 5 Wire Feeder Cable Set, 16 Series

Motion Labs |

SKU: 1450-01-01-07-101

Gauge: #2 AWG

Length: 10 ft

Marinco 16 Series Camlock: 400A/600V Cam Tech connectors in 5 colours, UL/CSA.
190A, 300A or 400A: #2 AWG rated 190A, 2/0 AWG 300A and 4/0 AWG 400A assembly.
10 ft to 100 ft: Lengths of 10, 25, 50 and 100 ft, with 4/0 AWG up to 50 ft.
Type SC (EISL) Cable: 600V, 90°C, with clear heat shrink on each end for labels.

View Full Description Technical Data

Motion Labs Camlock 5 Wire Feeder Cable Set, 16 Series

The Motion Labs Camlock 5 Wire Feeder Cable Set is a five-conductor feeder set with Marinco Cam Tech 16 Series camlock connectors rated 400A/600V. It comes in #2 AWG, 2/0 AWG and 4/0 AWG Type SC (EISL) cable, rated 190A, 300A and 400A respectively, in lengths from 10 ft to 100 ft.

Key Features and Highlights

Marinco 16 Series Connectors: Cam Tech camlock devices rated 400A/600V, in 5 colours, UL/CSA certified.
Three Conductor Sizes: #2 AWG rated 190A, 2/0 AWG rated 300A and 4/0 AWG assembly rated 400A.
Type SC (EISL) Cable: 600V, 90°C single-conductor cable, UL/CSA.
Length Options: 10, 25, 50 or 100 ft, with 4/0 AWG offered in 10, 25 and 50 ft.
Insulgrip Strain Relief: Insulgrip connector bodies, with 6 in clear heat shrink on each end for your labels.

Why Choose This Product?

The connectors on every version are rated 400A, but the cable sets the actual capacity. With three conductor sizes, you can choose a lighter #2 AWG set for loads up to 190A or step up to 2/0 or 4/0 AWG for larger distribution, up to the full 400A.

Who Is This Product For?

Ideal for: production electricians and rental houses running camlock feeders to portable power distribution.

Important: The current rating depends on the conductor size: 190A for #2 AWG, 300A for 2/0 AWG and 400A for 4/0 AWG. Always size the feeder to the load, not to the 400A connector rating.

Explore Motion Labs Equipment

Explore the complete Motion Labs collection for professional power distribution, chain hoist control and cable assembly equipment.

For bulk orders, project requirements or pricing, Request a Quote.

Part Number	Conductor	Rating	Length	Weight
1450-01-01-07-101	#2 AWG	190A	10 ft	23 lb
1450-01-01-04-101	#2 AWG	190A	25 ft	48 lb
1450-01-01-03-101	#2 AWG	190A	50 ft	83 lb
1450-01-01-01-101	#2 AWG	190A	100 ft	158 lb
1450-01-04-07-101	2/0 AWG	300A	10 ft	30 lb
1450-01-04-04-101	2/0 AWG	300A	25 ft	62 lb
1450-01-04-03-101	2/0 AWG	300A	50 ft	118 lb
1450-01-04-01-101	2/0 AWG	300A	100 ft	230 lb
1450-01-05-07-101	4/0 AWG	400A	10 ft	48 lb
1450-01-05-04-101	4/0 AWG	400A	25 ft	108 lb
1450-01-05-03-101	4/0 AWG	400A	50 ft	208 lb

Configuration	5 wire feeder set
Connectors	Marinco Cam Tech, 16 Series, 400A/600V, 5 colours, UL/CSA
Cable	Type SC (EISL), 600V, 90°C, UL/CSA
Strain Relief	Insulgrip connector bodies
Labelling	6 in clear heat shrink on each end

Downloads

PDF 2-0_5w.pdf

PDF 2awg_5w.pdf

PDF 4-0_5w.pdf

Compliance & Certificates

UL/CSA

Frequently Asked Questions

What is the current rating of the Motion Labs Camlock 5 Wire Feeder Cable Set?

The Marinco connectors on the Motion Labs Camlock 5 Wire Feeder Cable Set are rated 400A, but the cable sets the limit. The #2 AWG set is rated 190A, the 2/0 AWG set 300A and the 4/0 AWG assembly 400A.

Which conductor size should I choose for the Motion Labs Camlock 5 Wire Feeder Cable Set?

Choose the Motion Labs Camlock 5 Wire Feeder Cable Set by the current your distribution needs. The #2 AWG version suits loads up to 190A, 2/0 AWG up to 300A, and 4/0 AWG gives the full 400A assembly rating.

What lengths and weights are available for the Motion Labs Camlock 5 Wire Feeder Cable Set?

The Motion Labs Camlock 5 Wire Feeder Cable Set comes in 10, 25, 50 and 100 ft lengths, with 4/0 AWG up to 50 ft. Weight ranges from 23 lb for a 10 ft #2 AWG set to 230 lb for 100 ft of 2/0 AWG.

What connectors and cable does the Motion Labs Camlock 5 Wire Feeder Cable Set use?

The Motion Labs Camlock 5 Wire Feeder Cable Set uses Marinco Cam Tech 16 Series connectors rated 400A/600V, in five colours with UL/CSA certification. The cable is Type SC (EISL), 600V, 90°C, with Insulgrip strain relief and clear heat shrink on each end.
