Product details

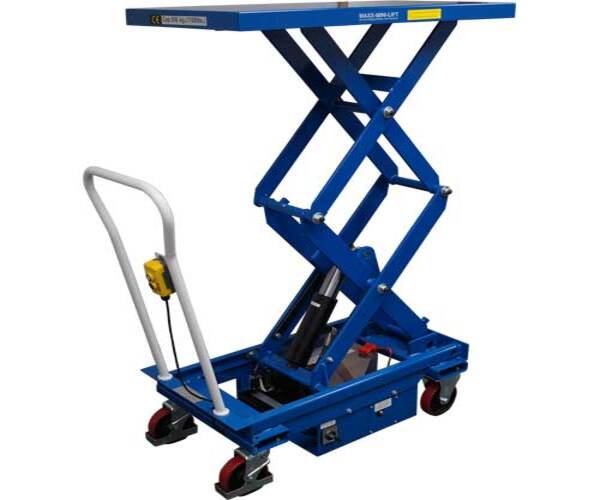

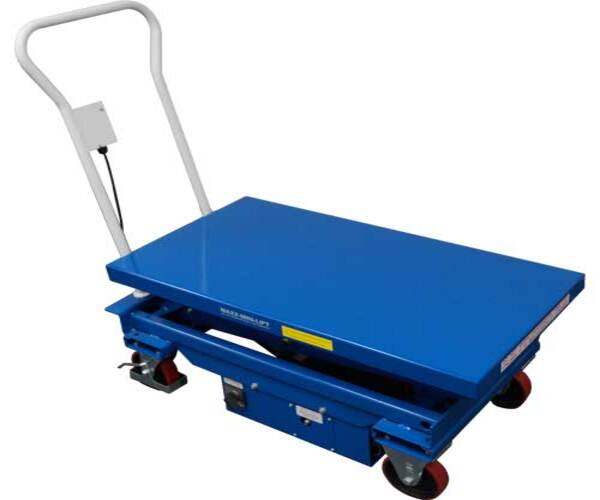

MMLE Lift Carts
These economical portable DC electric lift tables are a convenient solution to many material handling situations. The efficiency and ease of operation of an electric lift is frequently preferred over manual pump up type tables.
The Maxx-Mini Lift MMLE series is designed for order picking, die handling, assembly or anywhere lifting is required. Ergonomically placing the load at the right height minimizes the possiblity of back injury and increases productivity.
A simple push button control is conveniently positioned on the handle. An on board 12 Volt battery provides the power to operate the electric motor. An internal charger is fully automatic and runs on 110 Volt input.
Standard Features
-
Ergonomic push handle
-
Push button controls
-
(2) front rigid poly casters
-
(2) rear swivel poly casters
-
Brakes on swivel casters
-
Onboard 12V battery
-
Trapped top/bottom rollers
-
Maintenance safety bars
-
Maintenance isolator switch
-
Internal automatic charger
-
Battery discharge indicator
-
Emergency relief valve
-
CE certified
-
Quality fit and finish
Options
- Die Handling Top
- All Swivel Casters
- Safety Skirting
- Side Mounted Handle
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size |
Ship Weight |
|
|---|---|---|---|---|---|---|
| Min | Max | |||||
| MMLE-100 | 18" | 2,200 lbs | 19.3" | 37.3" | 20.5" x 39.8" | 372 lbs |
| MMLE-100-XL | 31" | 2,200 lbs | 17" | 48" | 31.5" x 47.3" | 473 lbs |
| MMLE-50D | 44" | 1,100 lbs | 19.5" | 63.5" | 20.5" x 39.8" | 436 lbs |
| MMLE-80D | 37" | 1,760 lbs | 20" | 57" | 20.5" x 39.8" | 458 lbs |
