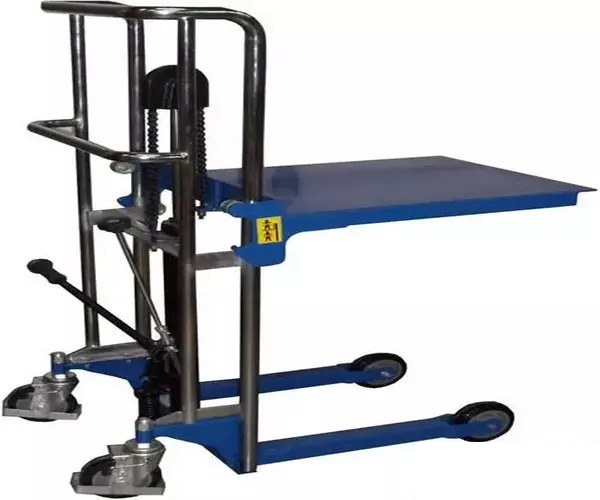

Maxx-Mini-Lift Tote & Platform Lift

The Maxx-Mini-Lift is a light weight and highly maneuverable platform lift that is ideal for order picking and general material handling. Its quick lift manual foot pump with fold up pedal allows for easy height adjustment.

With a capacity of either 440 or 660 lbs, The Maxx-Mini-Lift can handle most light material handling jobs. It features polyurethane wheels with brakes on the swivel casters in the rear and rigid front casters. The reliable hydraulic lift cylinder is chrome plated and includes overload protection.

Lift is accomplished by pumping hydraulic fluid into the cylinder. As the cylinder extends, it elevates a mounted chain pulley that is attached to the platform.

The platform rolls up the dual steel uprights in a secure fashion with three points of contact per upright. An adjustable release valve allows for controlled descent of the platform.

    Standard Features

    • (2) rear swivel casters with brakes
    • (2) front rigid casters
    • Variable lowering speed
    • Rubber traction foot pump
    • Foot pump folds up for storage
    • Chrome plated lift cylinder
    • Cylinder overload protection
    • Smooth steel top with backrest
    • Chain pulley quietly lifts platform
    • Push handle

      Specifications

      Model Vertical
      Travel
      Capacity Height Platform
      Size
      Pumps
      To Lift
      Overall
      Height
      Ship
      Weight
      Min Max
      MMS-20 25" 440 lbs 8" 33" 24" x 20" 15 38" 99 lbs
      MMS-30 44.1" 660 lbs 8.9" 53" 25" x 22.8" 49 57.5" 183 lbs
