Product details

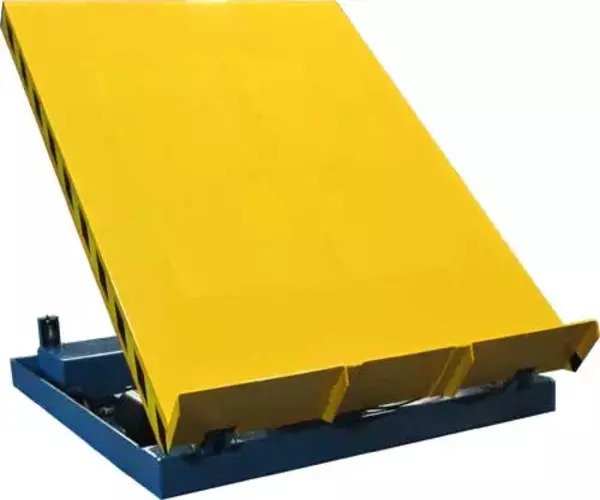

Max-Tilt Hydraulic Tilt Tables

Max-Tilt tables are designed for those applications where tilting the load provides for improved access to the product. Tables availble with 45° or 90° tilt.

Max-Tilt tables are electric hydraulic with the 45° models powered up and gravity down, while the 90° models are powered both up and down with double acting cylinders.

With capacities of 2,000 - 6,000 lbs., the Max-Tilt series can handle most applications.

Standard Features

  • 1.5 HP triple duty internal motor
  • Regreasable zerk fittings on pivot points
  • Ribbed steel reinforced platform deck
  • 115/230 single or 230/460 3 phase voltage
  • 30 amp dedicated circuit is required for 115 volt
  • 10' power cord (connector not included)
  • Hydraulic gear pump
  • Check & solenoid valve, filter and velocity fuse
  • Color yellow top with blue frame
  • Powered up / gravity down on 45° tilt
  • Powered up / powered down on 90° tilt
  • Tilt limit switch
  • Push button magnetic back control box
  • Smooth steel deck with 4" high lip on hinge end
  • High quality chrome plated cylinder
  • Control box with magnetic starter transformer
  • Thermal overload and fuses in control box
  • Designed for surface or lift table mounting

    Options

    • Foot control switch
    • Tapered toe guards
    • Lowering beeper
    • Raised base
    • Remote power unit
    • Safety skirting
    • Special color
    • Adj. tilt limit switch
    • Custom lip
    • Side walls
    • V-cradle top
    • Remote control
    • Custom platform sizes
    • Custom platform shapes
    • Custom tilt speeds

    Specifications

    Base
    Model    		 Capacity Tilt Platform Size Lowered
    Height    		 Tilt
    Speed    		 Cylinders
    Min Max
    LPTT-20 2,000 lbs 45°/90° 24" x 36" 72" x 72" 10" 16s/20s 1
    LPTT-40 4,000 lbs 45°/90° 24" x 36" 72" x 72" 10" 19s/28s 2
    LPTT-60 6,000 lbs 45°/90° 24" x 36" 72" x 72" 10" 24s/48s 3
