Max-Lift LPT-XXW Lift Tables

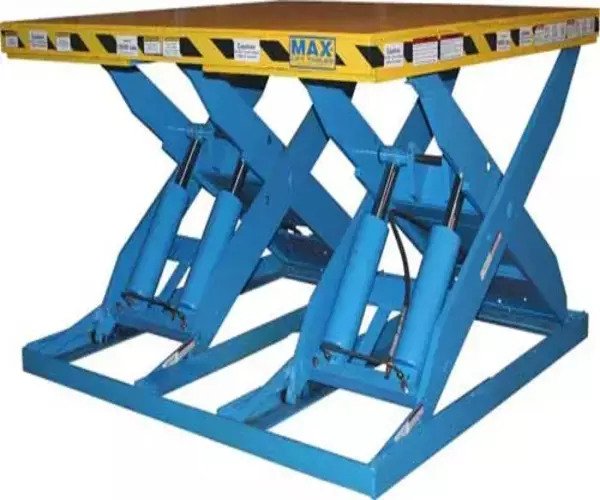

The term double wide is exactly that. It's two scissor assemblies welded into one frame. The purpose of this is to offer wider tops that are not available with a single scissors.

A standard rule is that the table top cannot be 2 feet wider than the base frame. An example of this is that a 48" wide base table can have up to a maximum top width of 72". However, if this was a double wide 48" wide base, the top could be 12 feet wide.

The other benefits of double wide base tables are increased capacity and increased edge loading.

Standard Features

  • Internally mounted 1.5 HP 115/230V-I-60 or 230/460-3-60 intermittent duty TENV super torque motor
  • 115V operating control voltage
  • NEMA constant pressure. Magnet backed up-down push button control station with 10' straight or coiled cord.
  • All controller components meet UL and/or CSA specifications.
  • Cylinders with internal stops.
  • 10' power cord (connector not included)
  • Integral safety restraint maintenance bars.
  • S.A.E. hoses and fittings.
  • NEMA - 1 prewired controls and electrical connectors. Control box contains contactor, control transformer, thermal overload and fuse.
  • Hard, chrome plated, polished shafting hydraulic cylinder piston rods.
  • Surfaces degreased, descaled and finished with Safety Yellow and Blue enamel.
  • Smooth steel top with yellow and black safety strips.
  • Internal gear pump with check valve, relief valve, solenoid valve.
  • Includes hydraulic oil and filter.

      Options

      • Foot Control Switch
      • Up-Down Push Button with Key Lock-Out
      • Adjustable Limit Switch
      • Adjustable Lower Limit Switch
      • Remote Power Unit Pump, Motor & Tank
      • Adjustable Flow Valve for Lowering
      • Low Temperature Hydraulic Oil
      • Diamond Tread Deck
      • Tilting Top
      • Low Profile Outboard Mounting of Casters
      • All Swivel Lock Casters
      • Floor Lock
      • Push Handle for Caster Tables
      • Fork Pockets
      • Portability (2) Fixed Wheels and Dolly Jack
      • Portability (2) Fixed (2) Swivel Casters
      • Rotating Top
      • 24 Volt D.C. Power Unit
      • Caster Brakes on Swivel Casters
      • Outboard Mounting of Casters
      • Handrail Gate
      • Pit Frame
      • Hydraulic Fuse
      • Electric Interlock
        Specifications

        Base
        Model
        Vertical
        Travel
        Height Capacity Platform Size Base
        Frame
        Lower Upper Std Max Min Max
        LPT-36XXW 36" 7.25" 43.25" 2,000 12,000 48" x 50" 96" x 74" 48" x 54"
        LPT-48XXW 48" 7.5" 55.5" 2,000 12,000 50" x 66" 96" x 98" 50" x 70"
        LPT-60XXW 60" 8" 68" 2,000 12,000 50" x 86" 96" x 110" 50" x 90"
