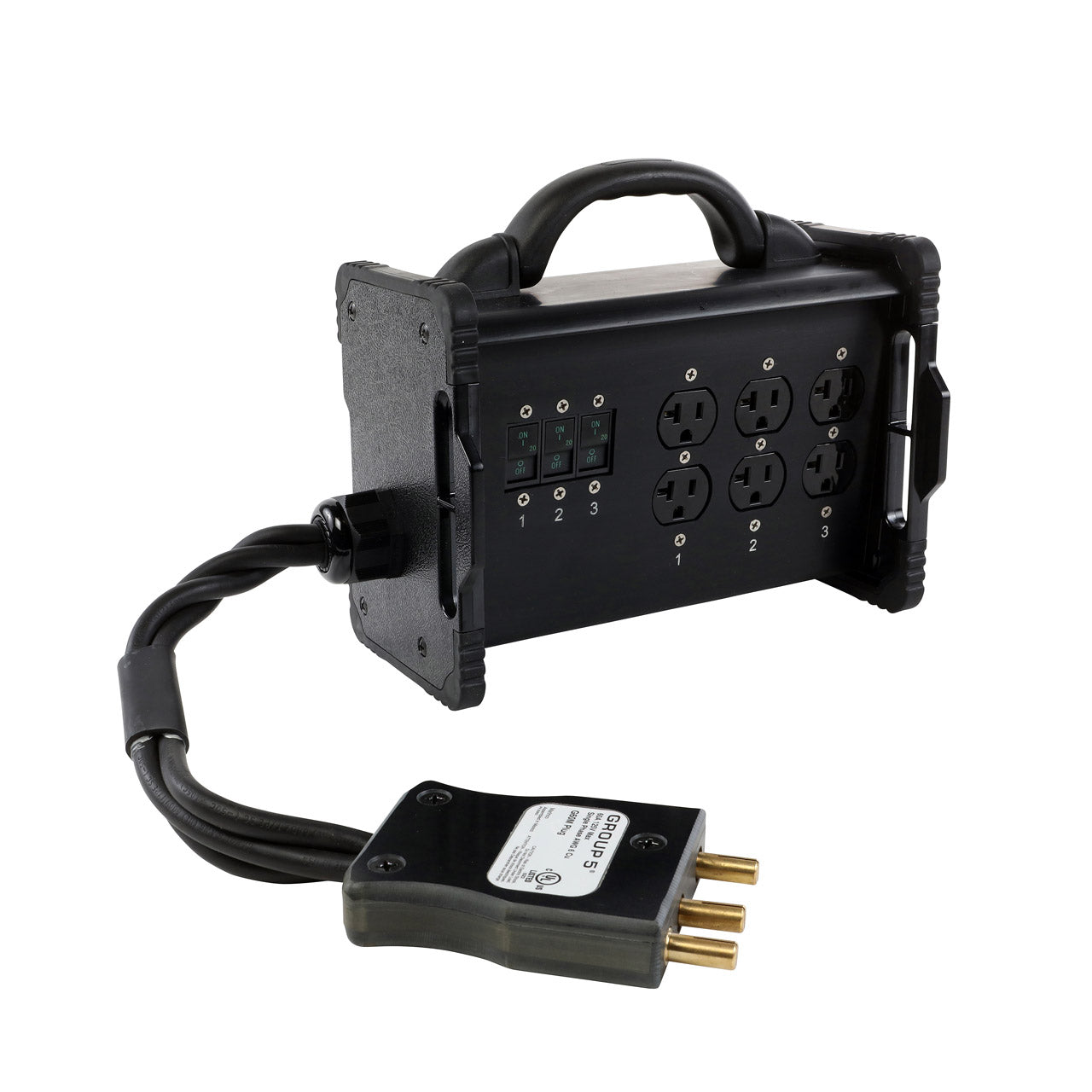

Lex 60 Amp Bates to Edison Duplex Receptors

Product No. BNE3-3A-10.5

Regular price $1,129.77 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

This compact unit provides convenient NEMA 5-20, 20 Amp receptacles to power lights on motion picture sets.

SPECIFICATIONS

  • Rating: 60 Amp, Single Phase (H, N, G), 2 Pole, 3 Wire, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 60 Amp stage pin plug on 12 inch SC cable tail, Single Phase, 2 Pole, 3 Wire, 120 VAC
  • Output: (3) 20 Amp circuits with (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
  • Feed Thru: None
  • Overcurrent Protection: (3) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Dimensions: 10.5" L x 5.9" W x 7.6" H
  • Approximate Weight: 6.6 lbs.

FEATURES

  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock, impact and corrosion
  • Breakers are mounted flush for easy access and circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces
  • Hydraulic magnetic breakers will not nuisance trip at higher temperatures
