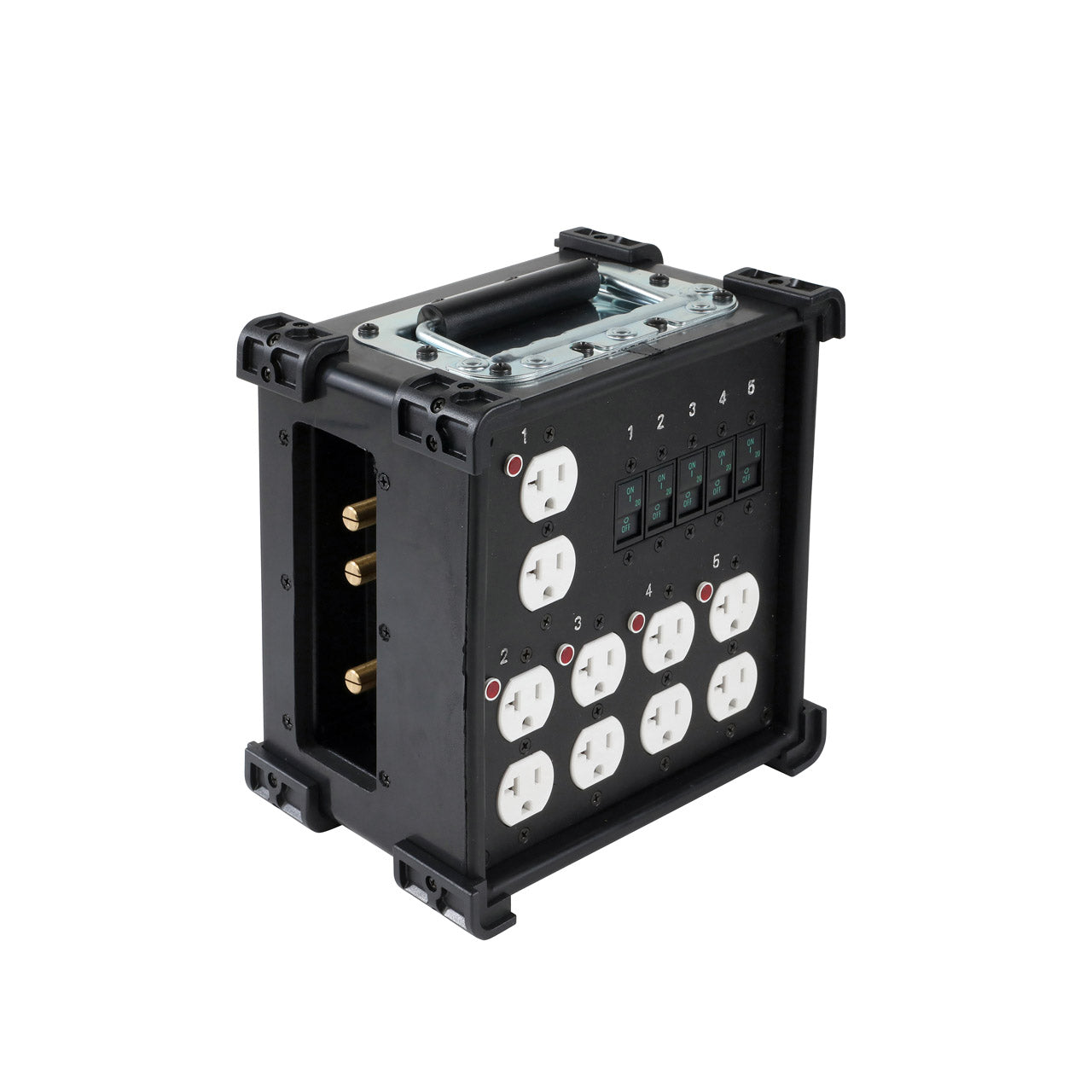

Lex 100 Amp Bates With Feed-Thru to Edison Duplex Receptors

Product No. PH100B1-NDC-15CC

Regular price $1,312.64 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Fed from larger power sources, this compact distribution unit provides 5-20 duplex receptacles for smaller lights and related equipment. The feed thru feature allows multiple boxes on the same feed.

SPECIFICATIONS

  • Rating 100 Amp, Single Phase, 2 Pole, 3 Wire (H,N,G), 120 VAC, 60 Hz
  • Environmental Rating NEMA 1 Indoor
  • Input (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
  • Output (5) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
  • Feed Thru (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin receptacle
  • Overcurrent Protection (5) 20 Amp hydraulic magnetic 100% branch-rated circuit breakers
  • Dimensions 9.0”W x 9.0”L x 6.38”D
  • Weight 11.0 lbs

FEATURES

  • Heavy-duty rubber enclosure is non-conductive and resistant to shock, impact and corrosion
  • Durable lexan bumpers allow units to stack for easy storage and protects enclosure
  • Collapsible handles provide easy handling in tight spaces and allow carrying multiple units
  • Hydraulic magnetic circuit breakers help prevent nuisance tripping at high temperatures
  • Flush mounting circuit breakers protect handles from impact while providing easy access
  • Extra heavy-duty industrial grade receptacles are designed and manufactured to withstand harsh conditions
  • Bright, color coded receptacles easily identify the box rating and increase visibility in low-light situations
  • Optional threaded insert on the back provides easy mounting with C-clamp
