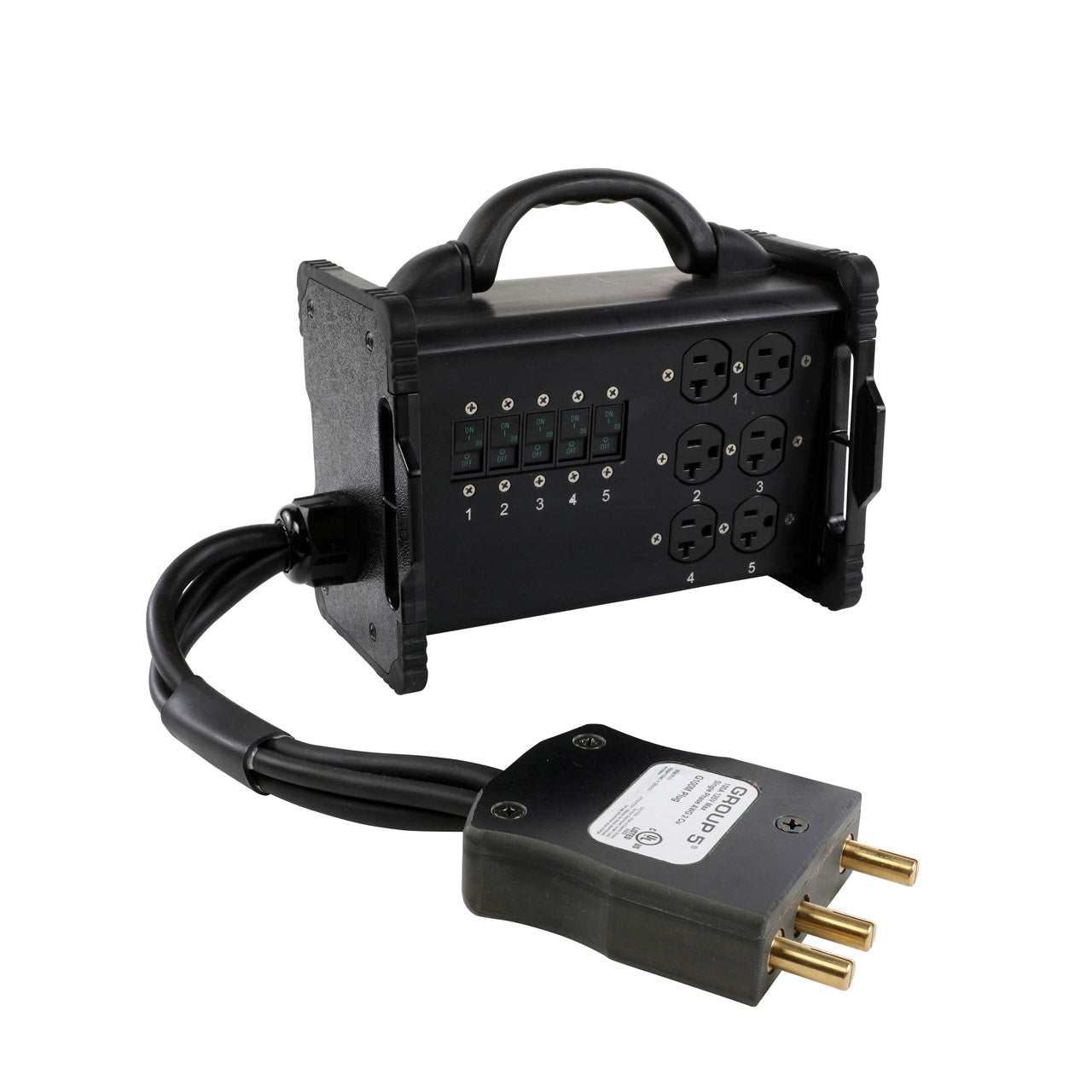

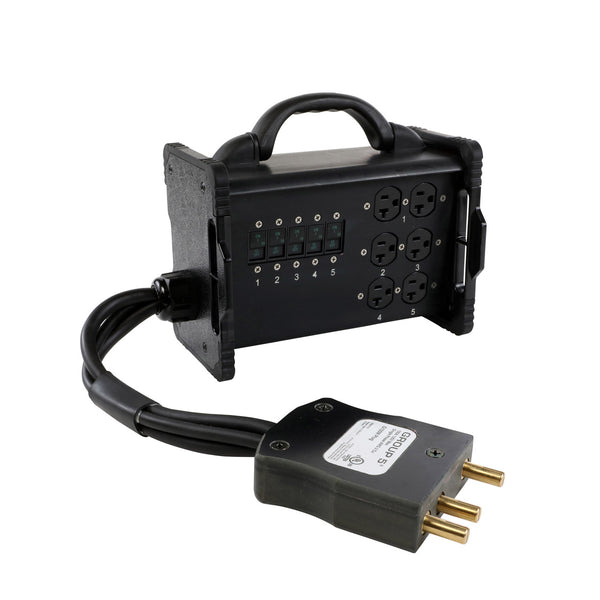

Lex 100 Amp Bates to Edison Duplex Receptors On 5 Circuits

This compact unit provides convenient NEMA 5-20, 20 Amp duplex receptacles to power lights on motion picture and television sets.

SPECIFICATIONS

• Rating: 100 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 100 Amp stage pin plug on 12 inch type SC cable tail, Single Phase, 2 Pole, 3 Wire, 120 VAC
• Output: (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC duplex receptacles split wired for (5) 20 Amp circuits
• Feed Thru: None
• Overcurrent Protection: (5) 20 Amp hydraulic magnetic branch-rated circuit breakers
• Dimensions: 10.5" L x 5.9" W x 7.6" H
• Approximate Weight: 7.8 lbs.

FEATURES

• Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
• Stackable and compact for easy storage
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
• Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
• Collapsible handle and end plate grips for easy handling in tight spaces
