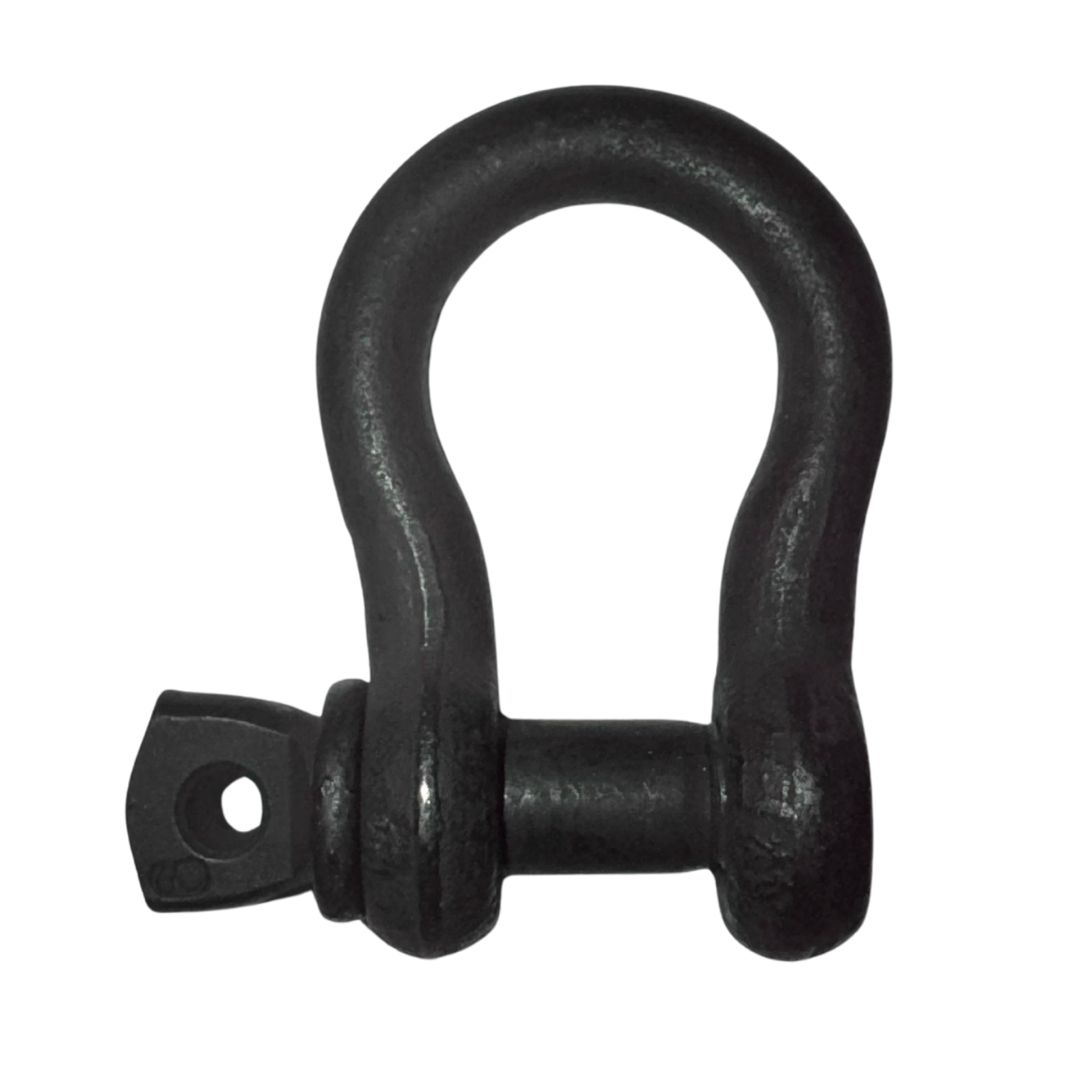

  • Green Pin Theatre Shackle SC matte black shackle screw collar pin detail - imagen 4

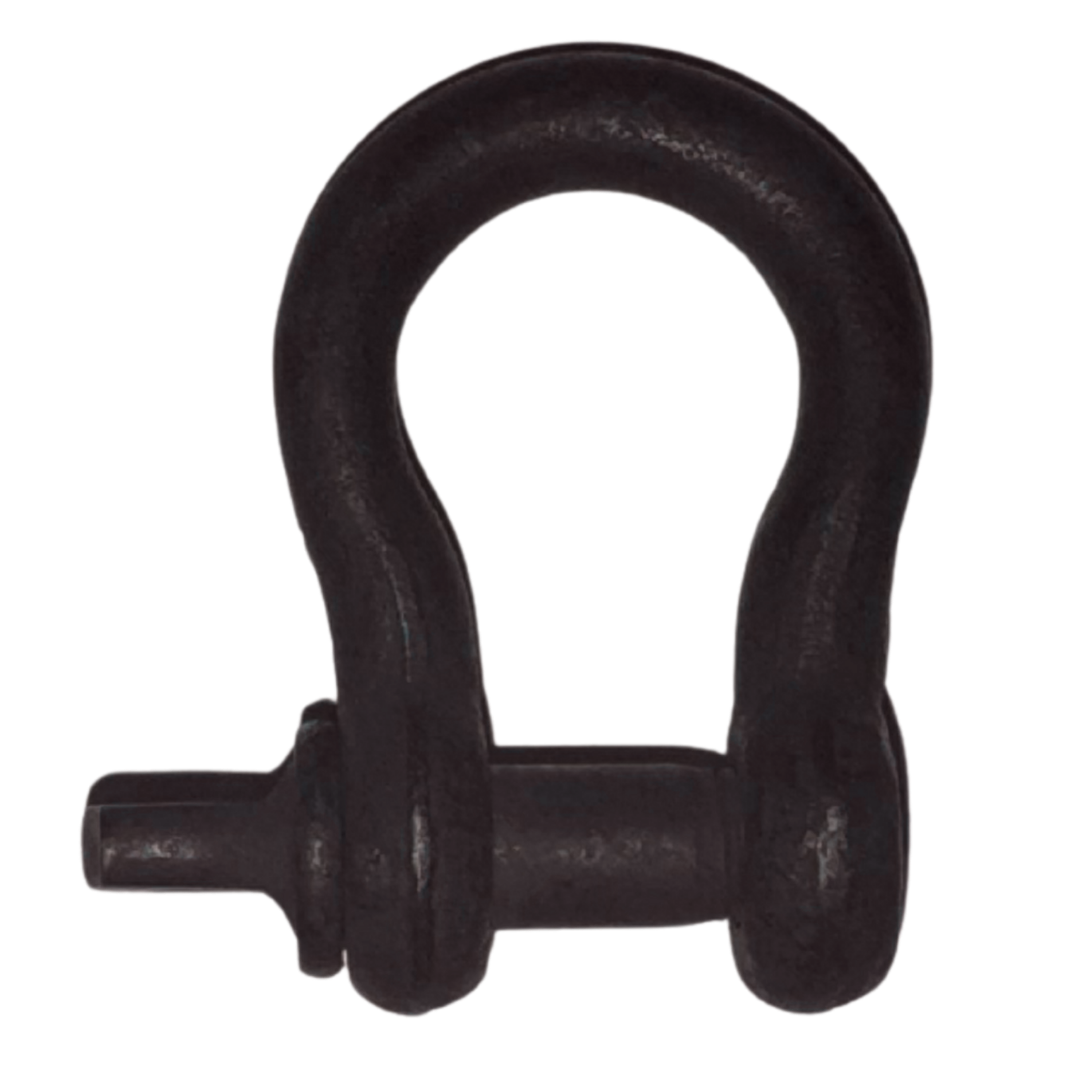

  • Green Pin Theatre Shackle SC black bow shackle with extended screw pin - imagen 5

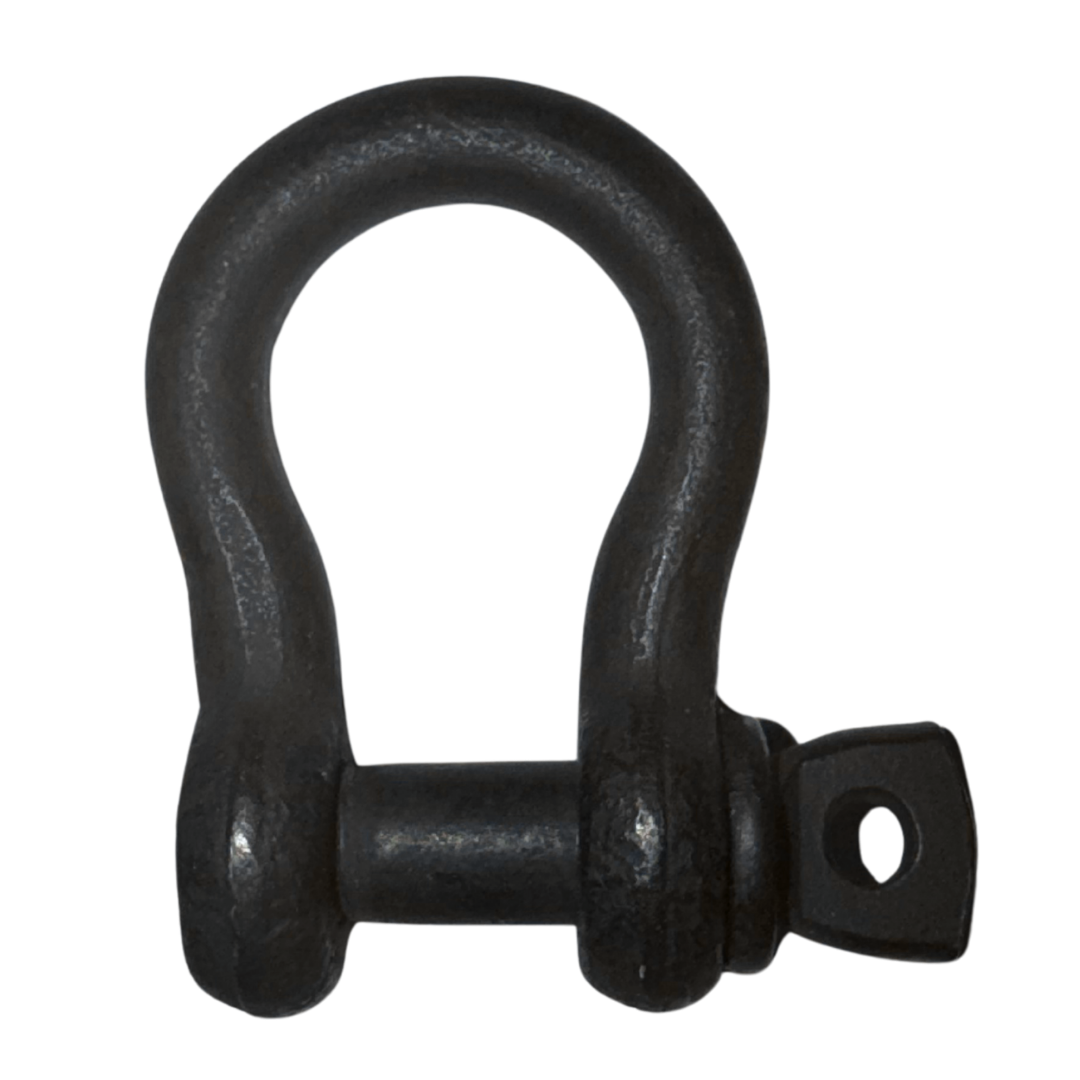

  • Green Pin Theatre Shackle SC small matte black shackle side view - imagen 6

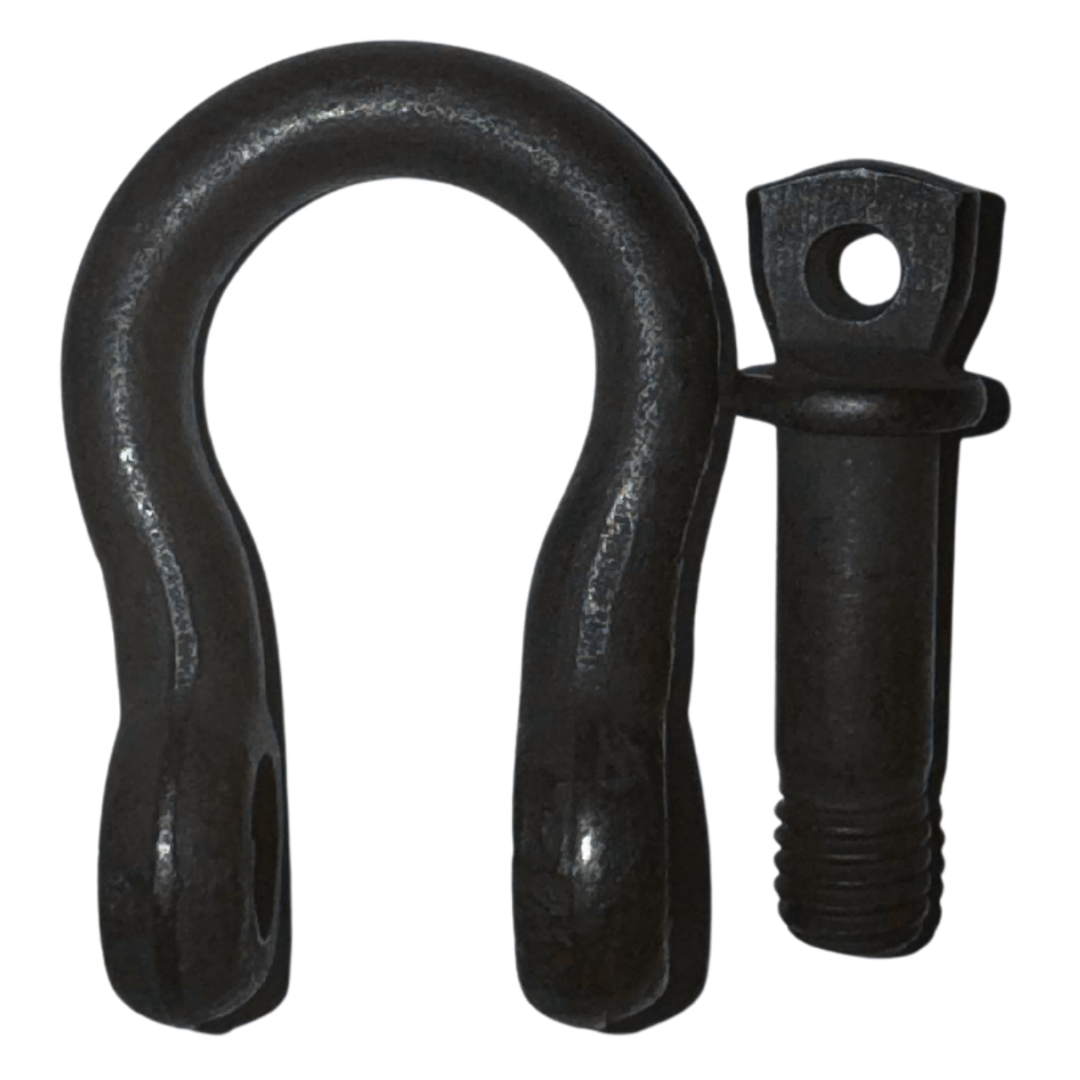

  • Green Pin Theatre Shackle SC bow shackle showing recessed chamber in eye - imagen 7
  • Green Pin Theatre Shackle SC black bow shackle and screw pin separated - imagen 8

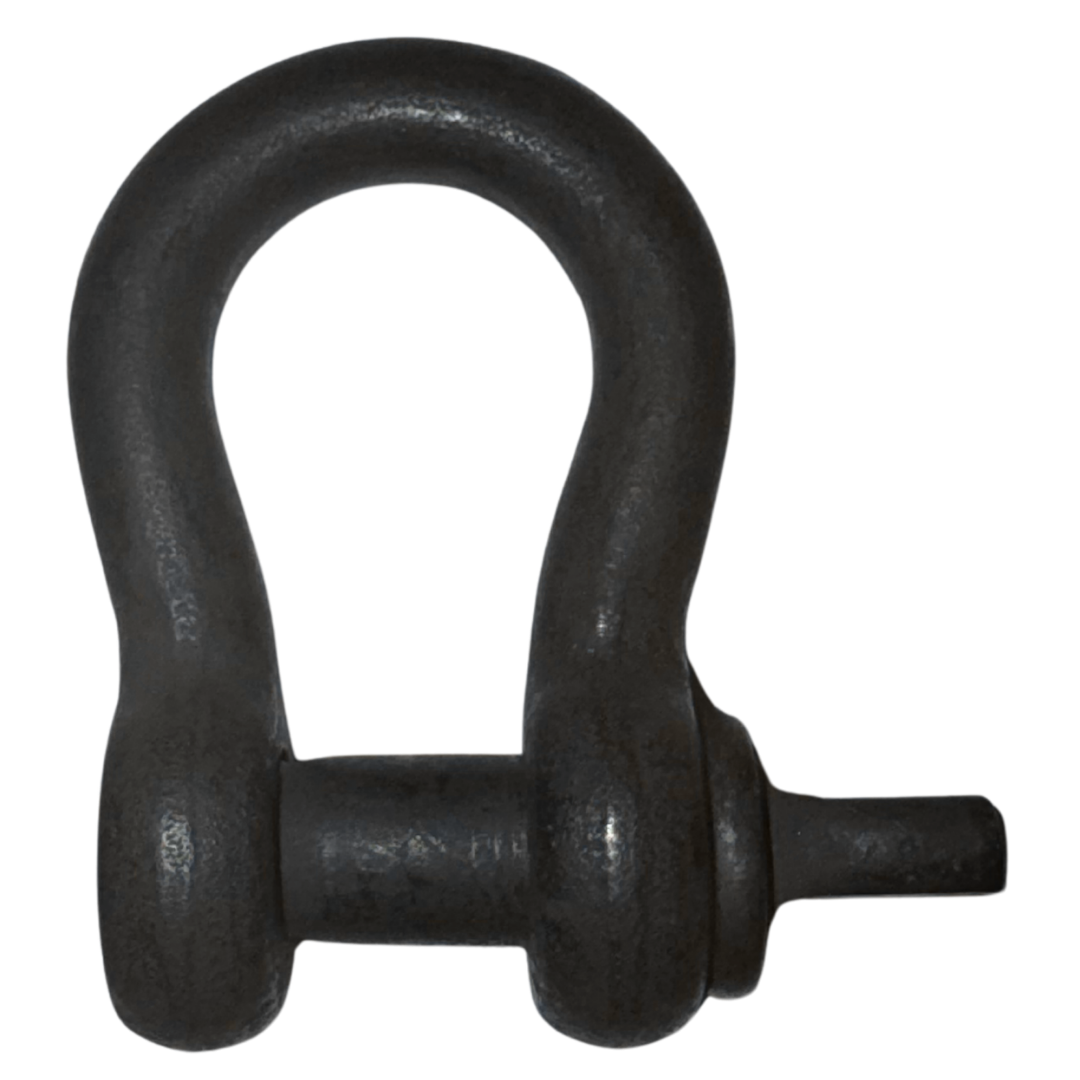

  • Green Pin Theatre Shackle SC medium size with long screw collar pin - imagen 9

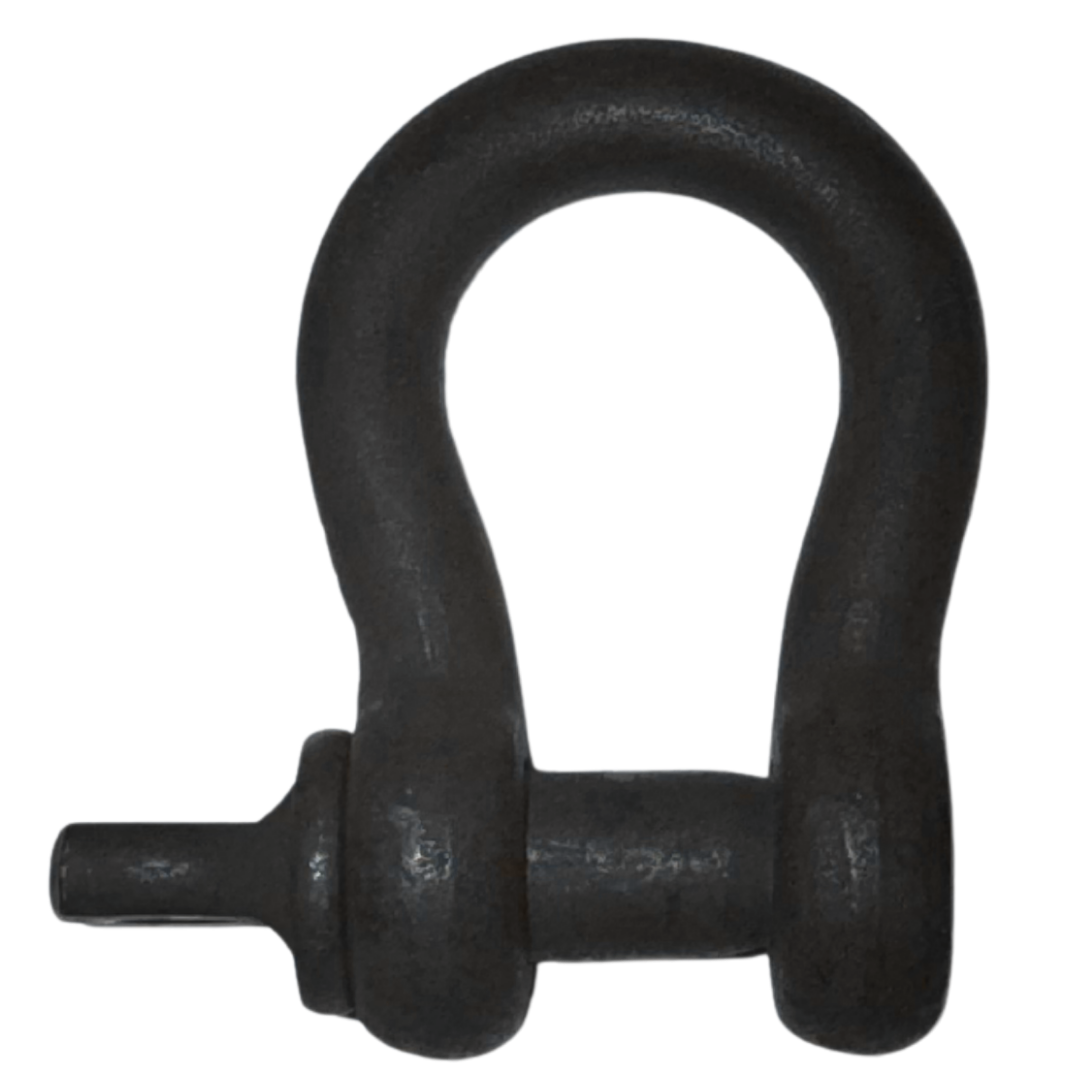

  • Green Pin Theatre Shackle SC matte black finish detail, side profile - imagen 10

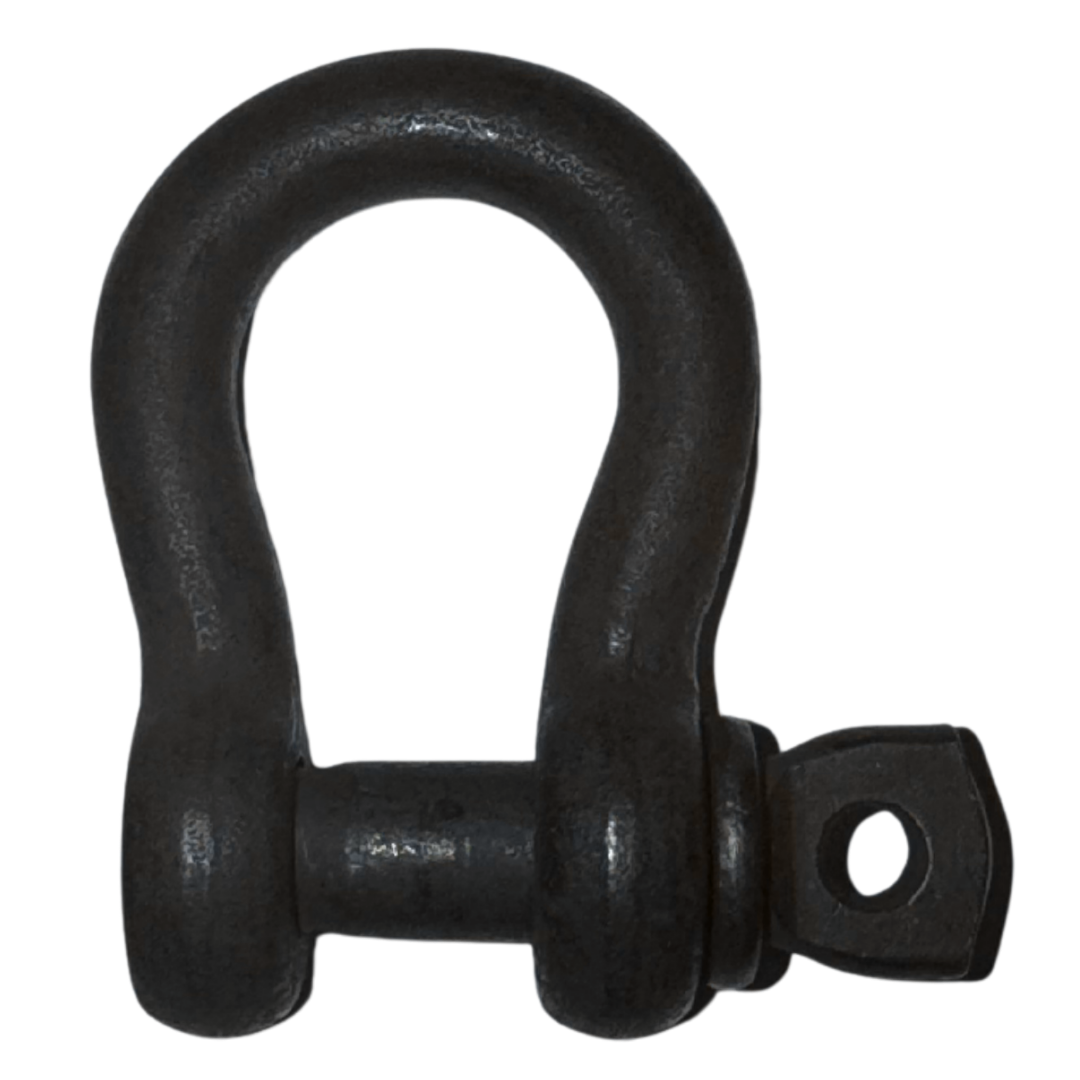

  • Green Pin Theatre Shackle SC small size with screw pin, matte black - imagen 11

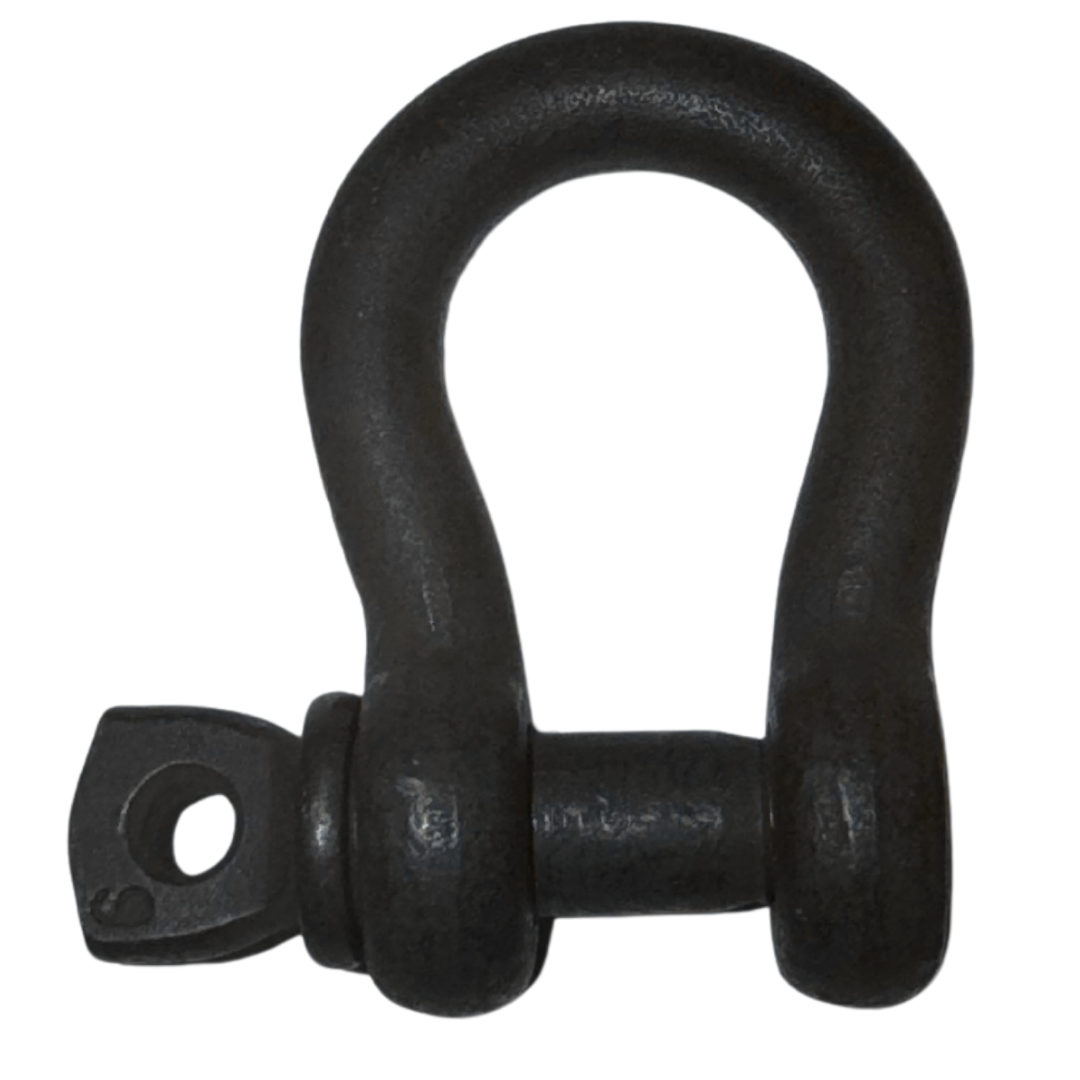

  • Green Pin Theatre Shackle SC compact bow shackle with short screw pin - imagen 12

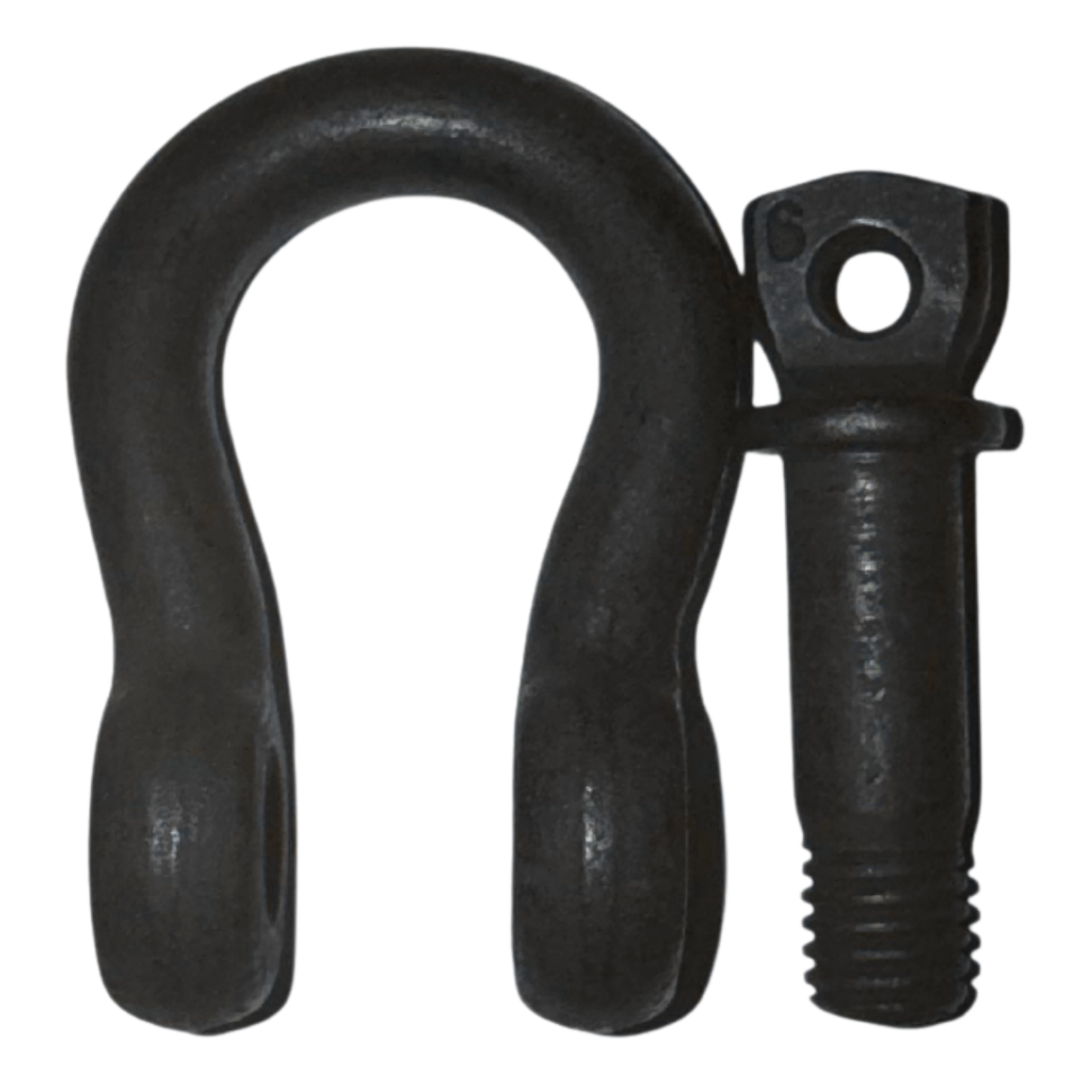

  • Green Pin Theatre Shackle SC medium bow shackle with long threaded pin - imagen 13
  • Green Pin Theatre Shackle SC black shackle showing screw thread detail - imagen 14

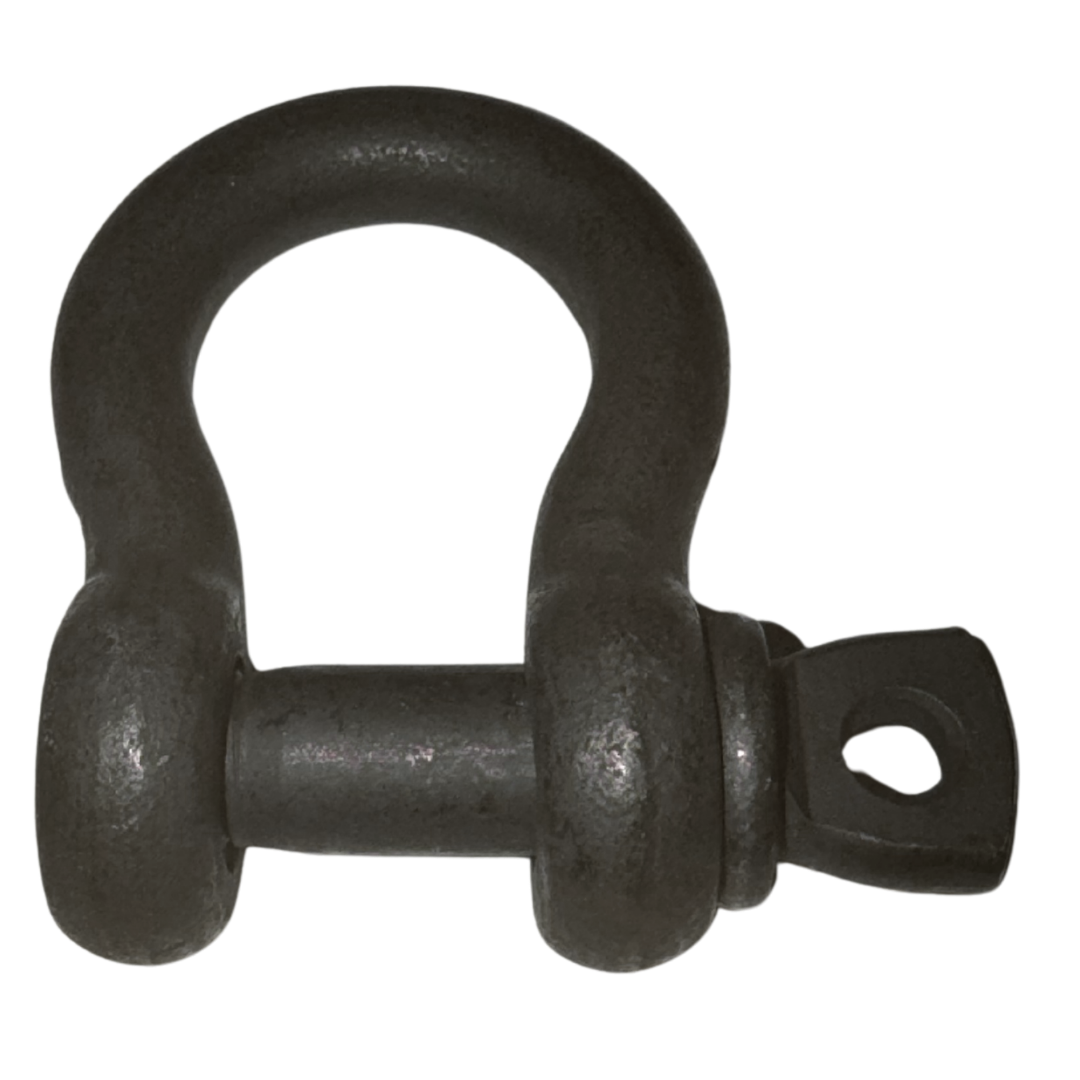

  • Green Pin Theatre Shackle SC larger size with wide body and screw pin - imagen 15

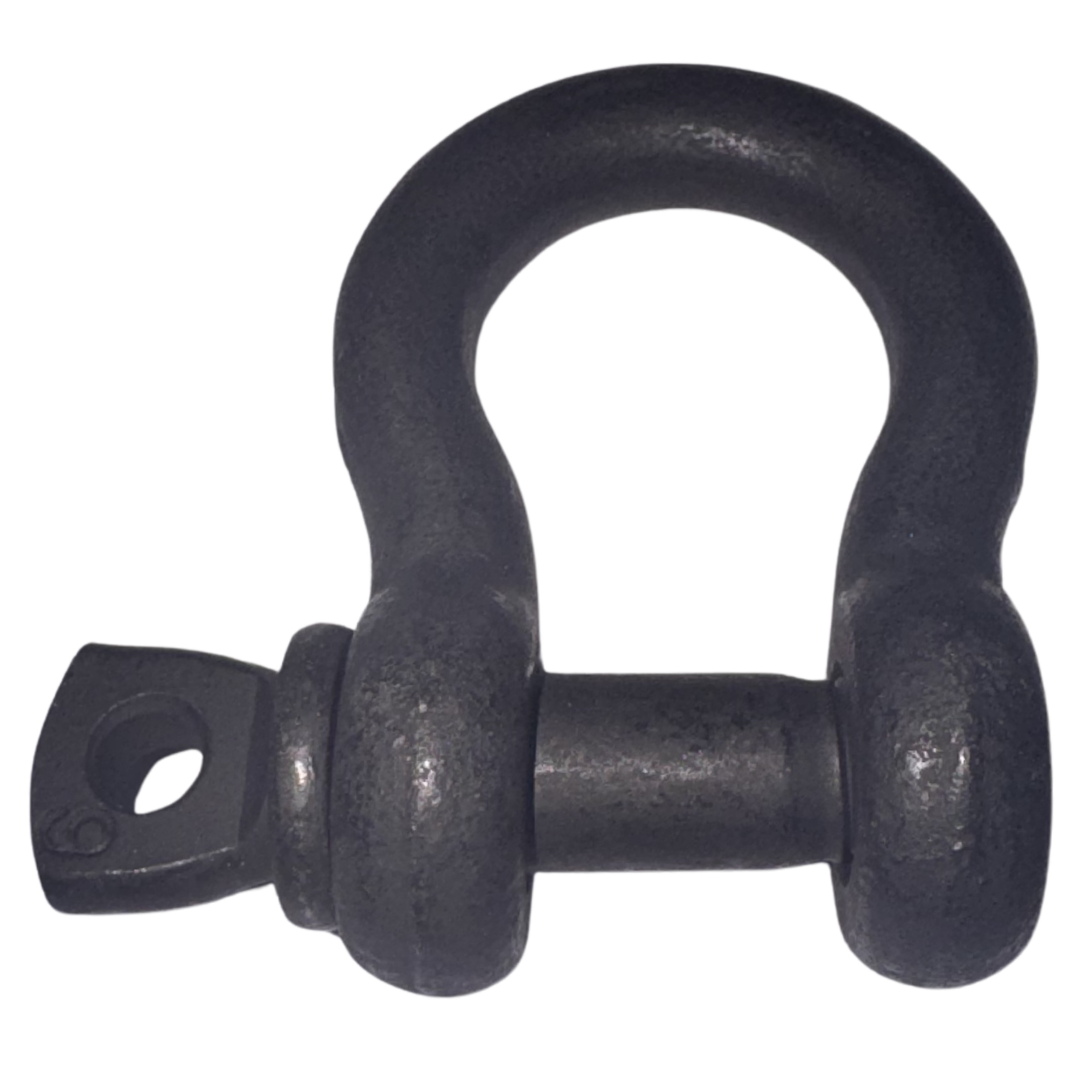

  • Green Pin Theatre Shackle SC large bow shackle non-reflective black finish - imagen 16

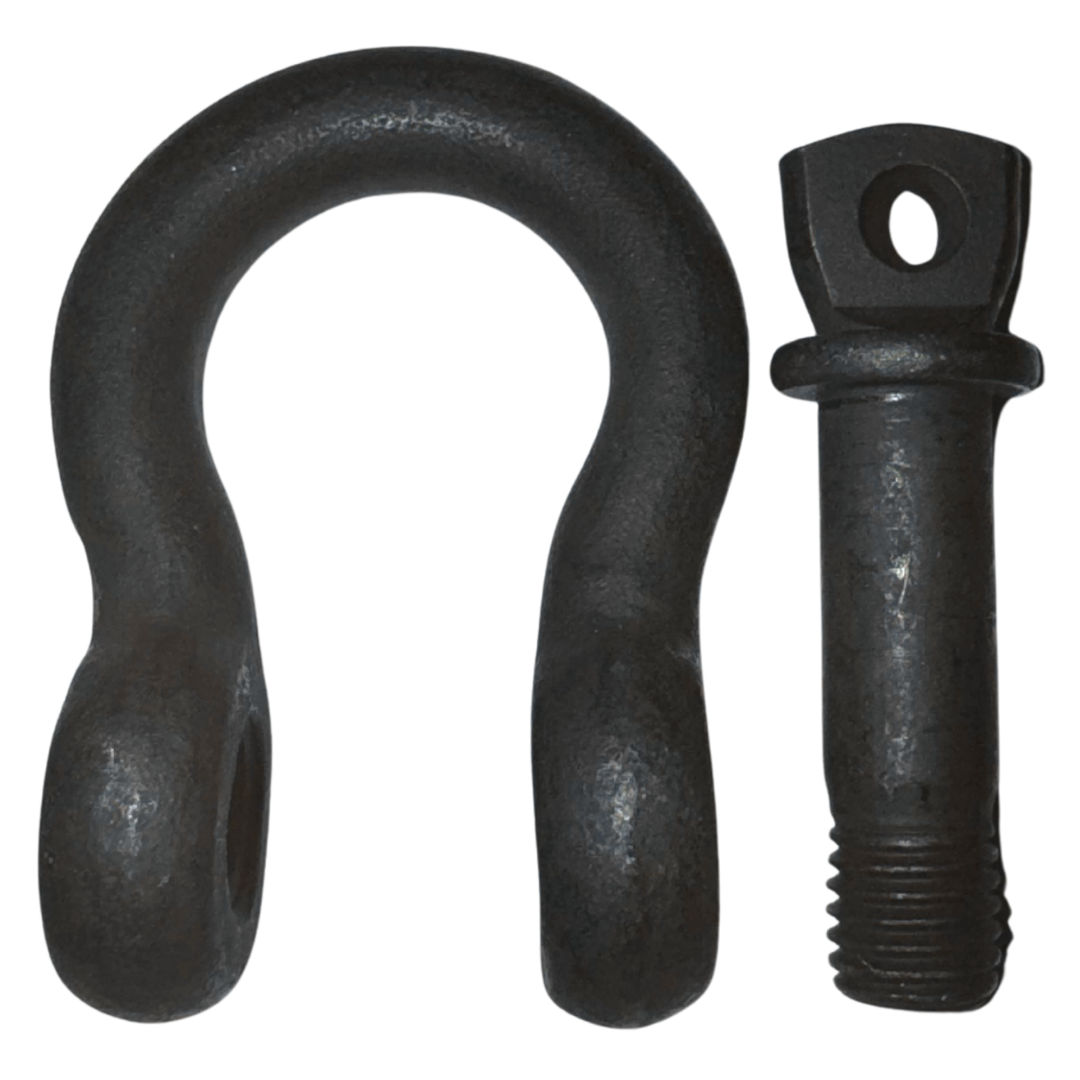

  • Green Pin Theatre Shackle SC medium size bow shackle with threaded pin - imagen 17
  • Green Pin Theatre Shackle SC bow shackle with extended threaded screw pin - imagen 18

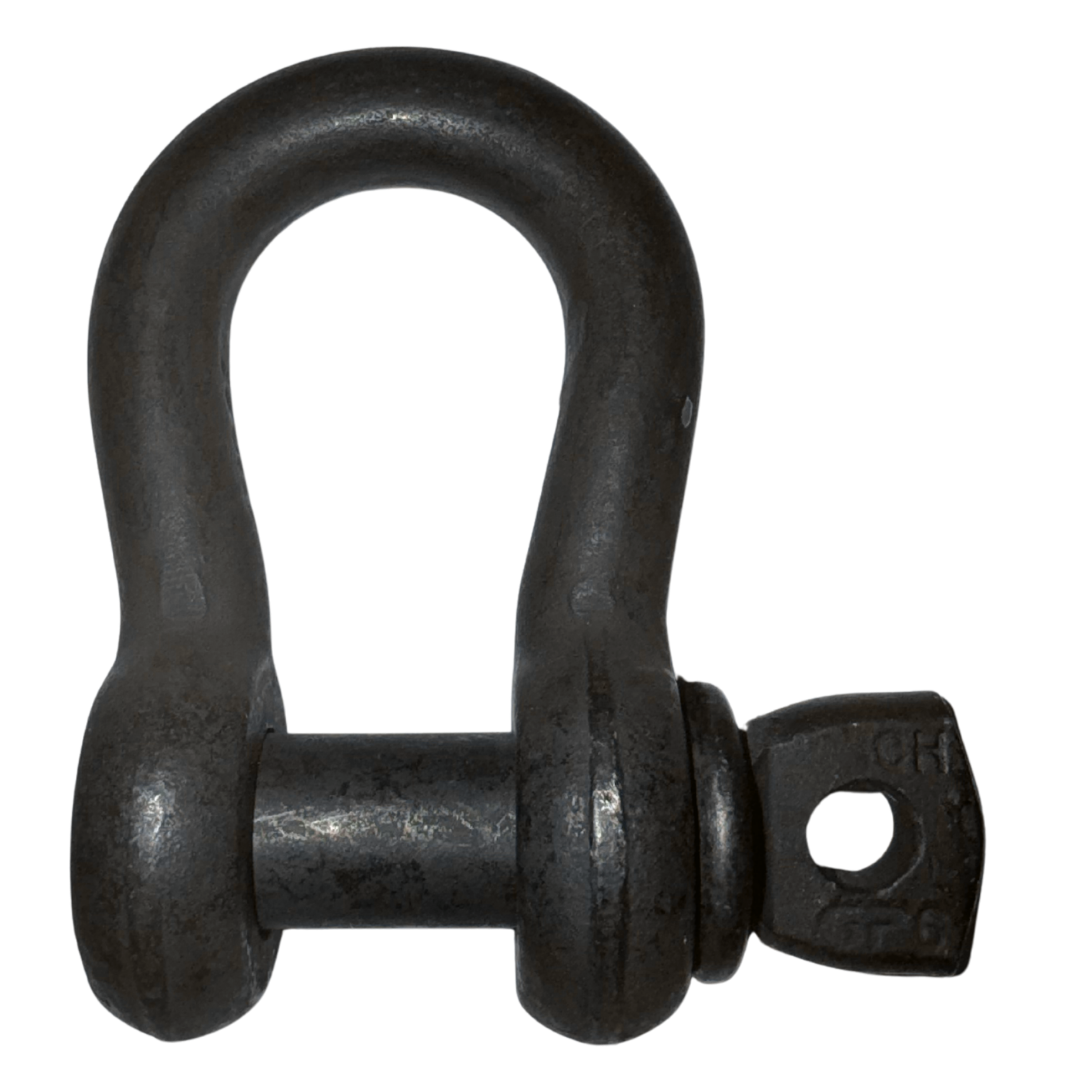

  • Green Pin Theatre Shackle SC large size matte black bow shackle - imagen 19
  • Green Pin Theatre Shackle SC large bow shackle with wide pin and eye - imagen 20

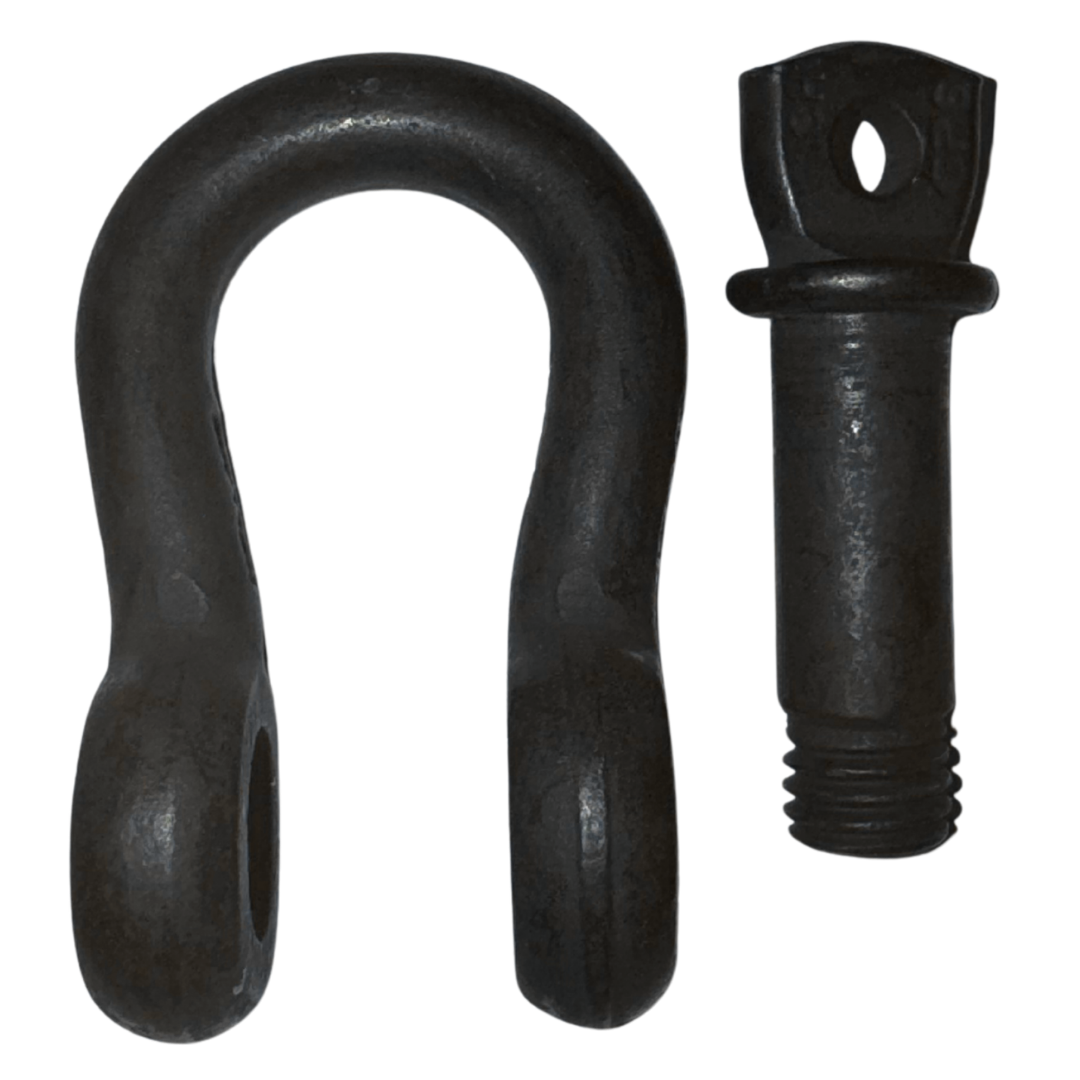

  • Green Pin Theatre Shackle SC large size with long screw collar pin - imagen 21
  • Green Pin Theatre Shackle SC large bow shackle separated from screw pin - imagen 22

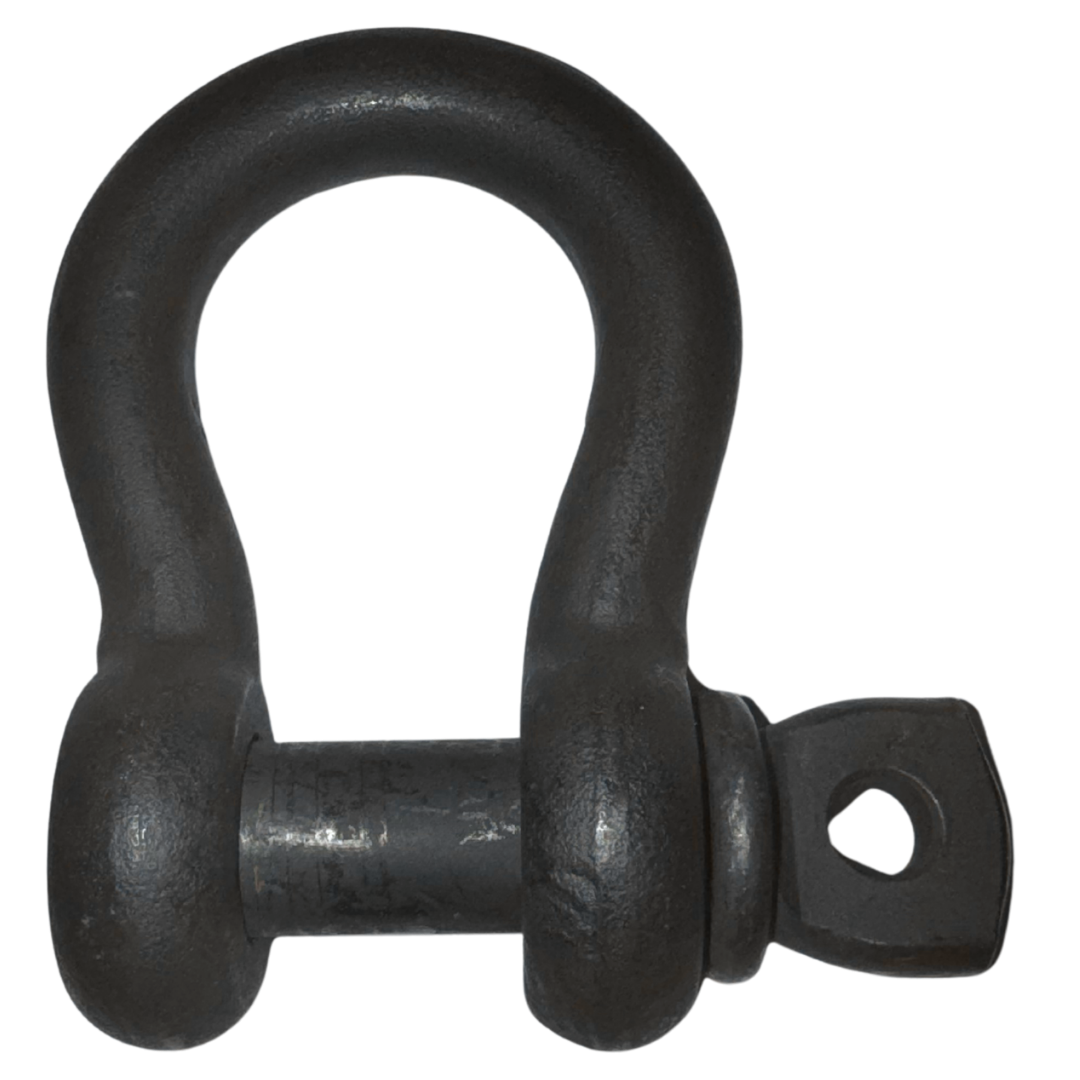

  • Green Pin Theatre Shackle SC heavy duty size matte black finish - imagen 23

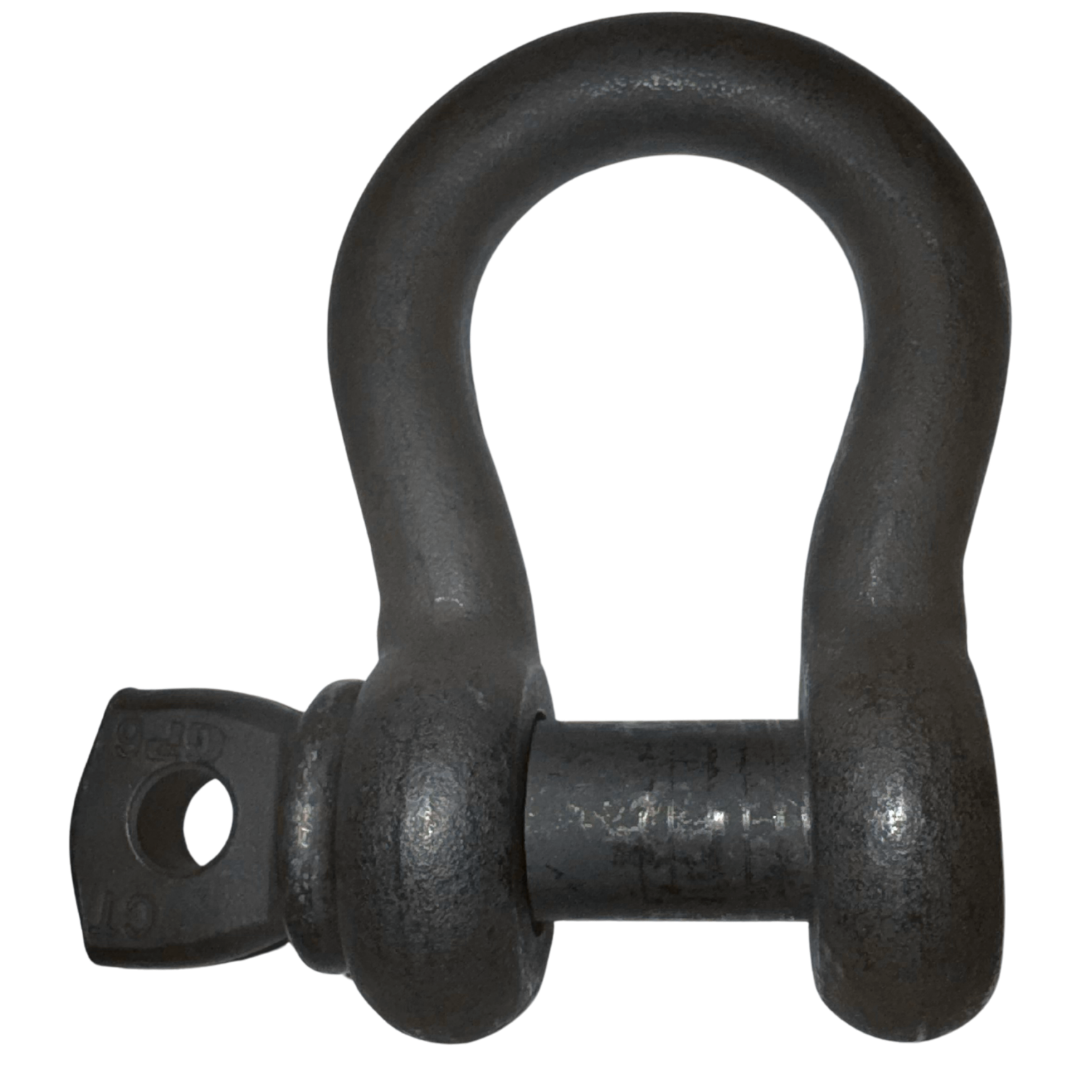

  • Green Pin Theatre Shackle SC large bow shackle with wide body screw pin - imagen 24

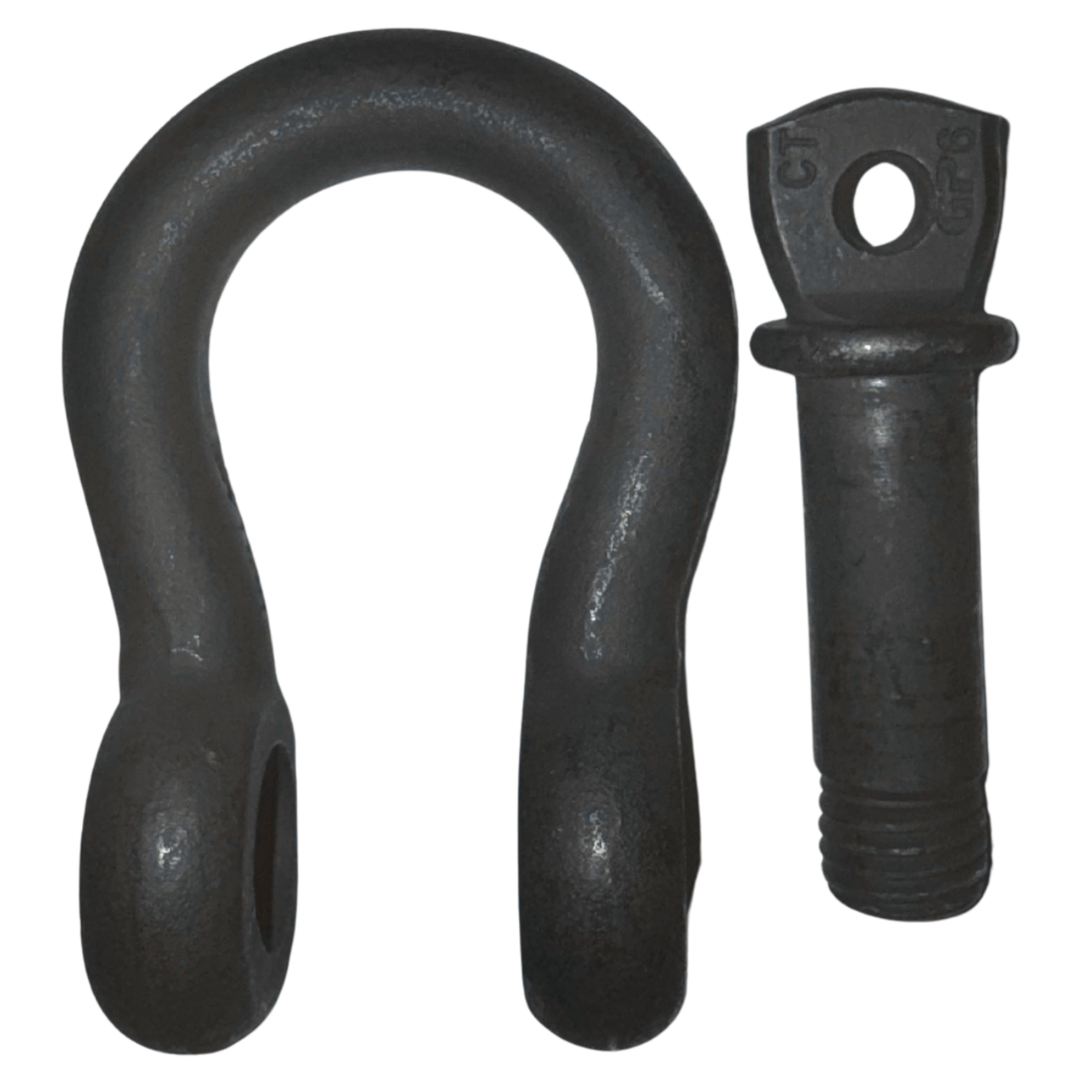

  • Green Pin Theatre Shackle SC large size with straight collar pin top view - imagen 25

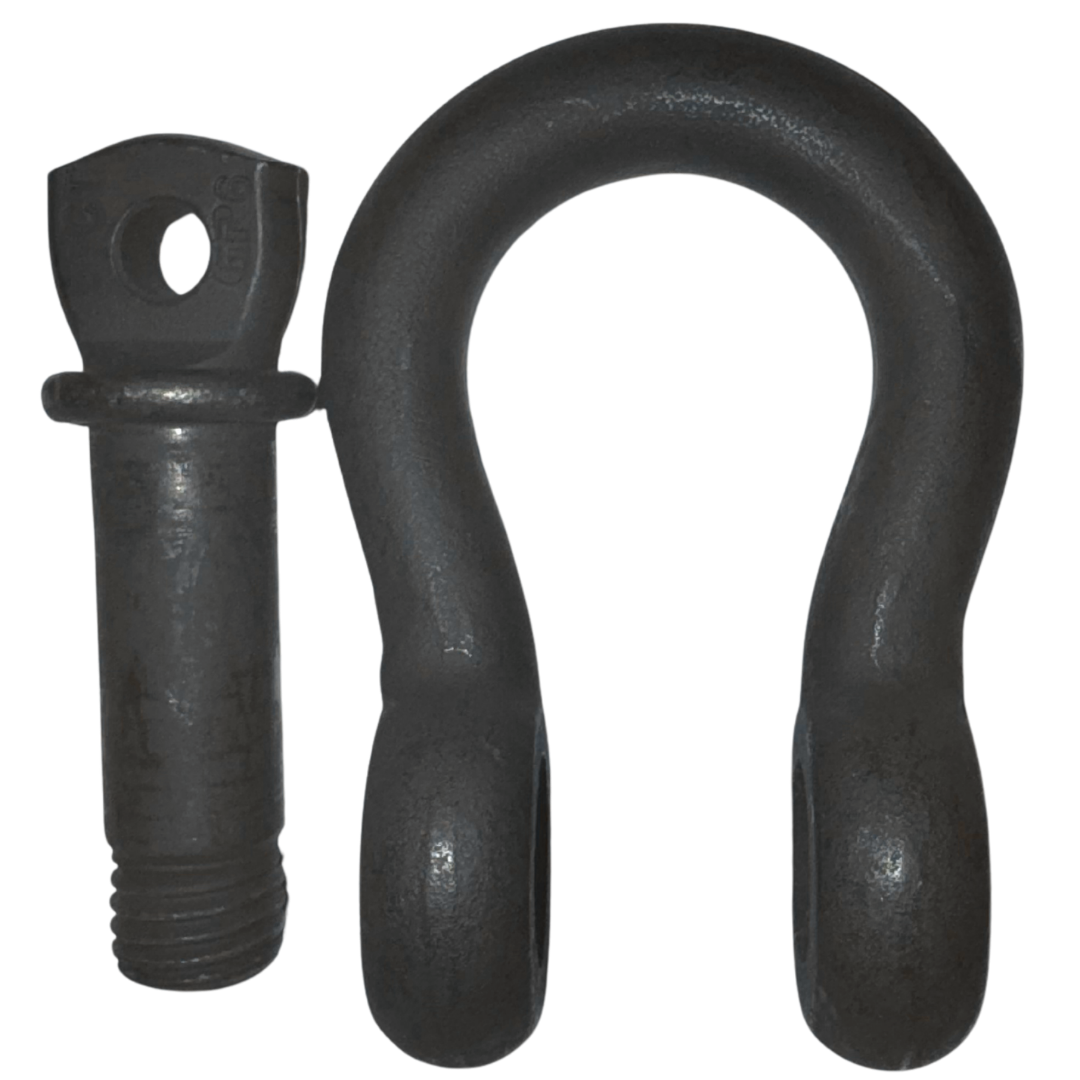

  • Green Pin Theatre Shackle SC heavy bow shackle with wide eye and pin - imagen 26

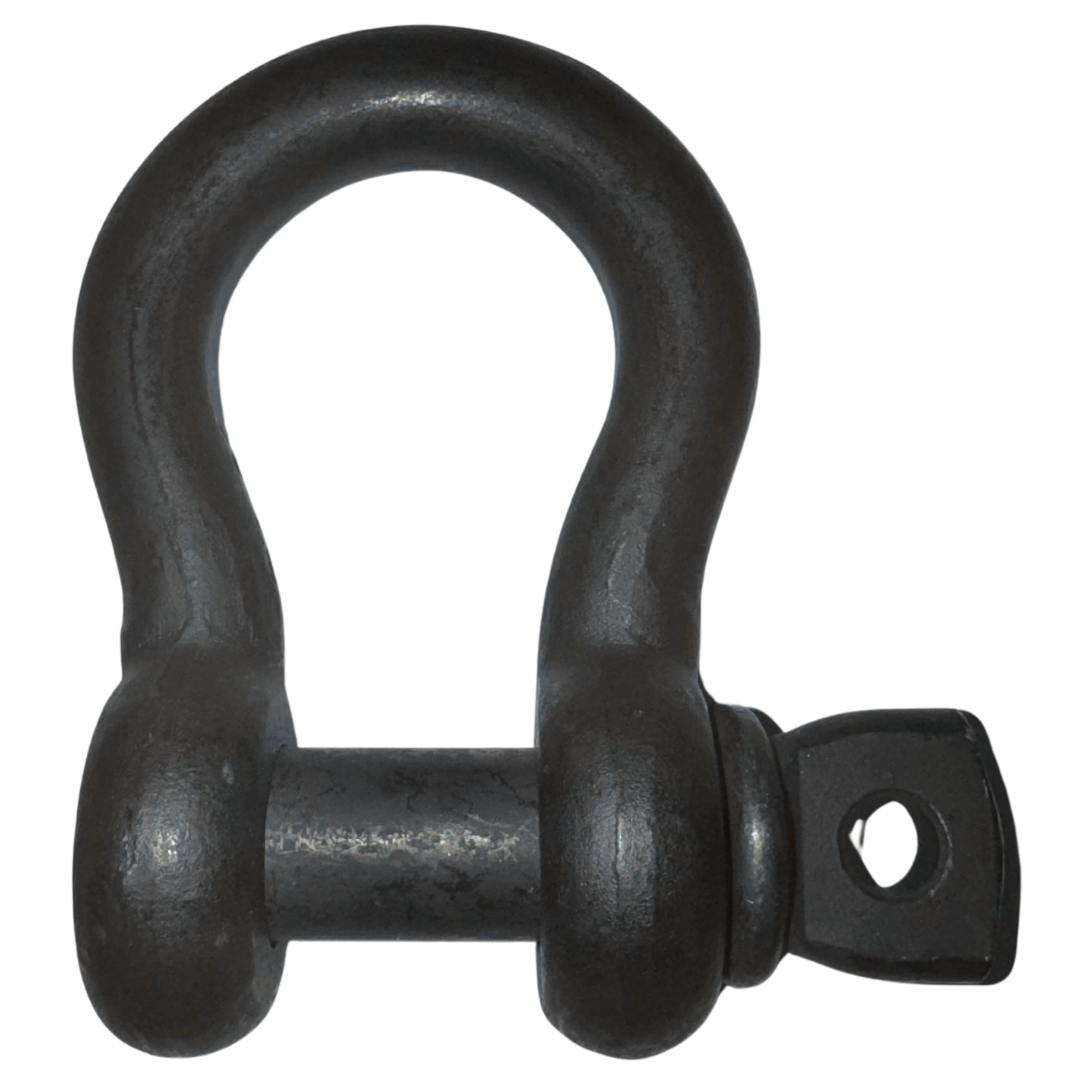

  • Green Pin Theatre Shackle SC large size with extended screw collar pin - imagen 27
  • Green Pin Theatre Shackle SC large matte black bow shackle compact view - imagen 28
  • Green Pin Theatre Shackle SC extra large size with long threaded pin - imagen 29

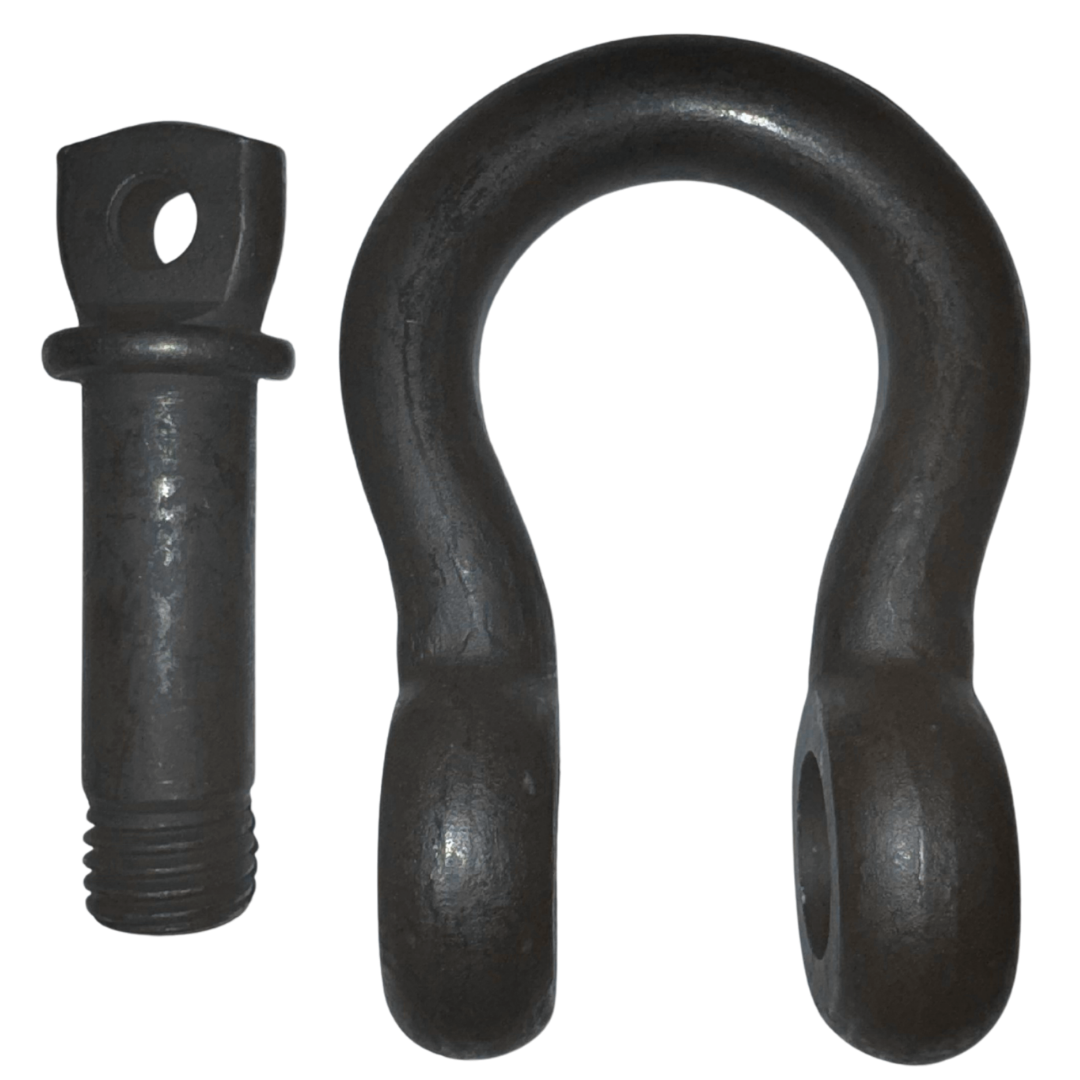

  • Green Pin Theatre Shackle SC extra large bow shackle and screw pin - imagen 30

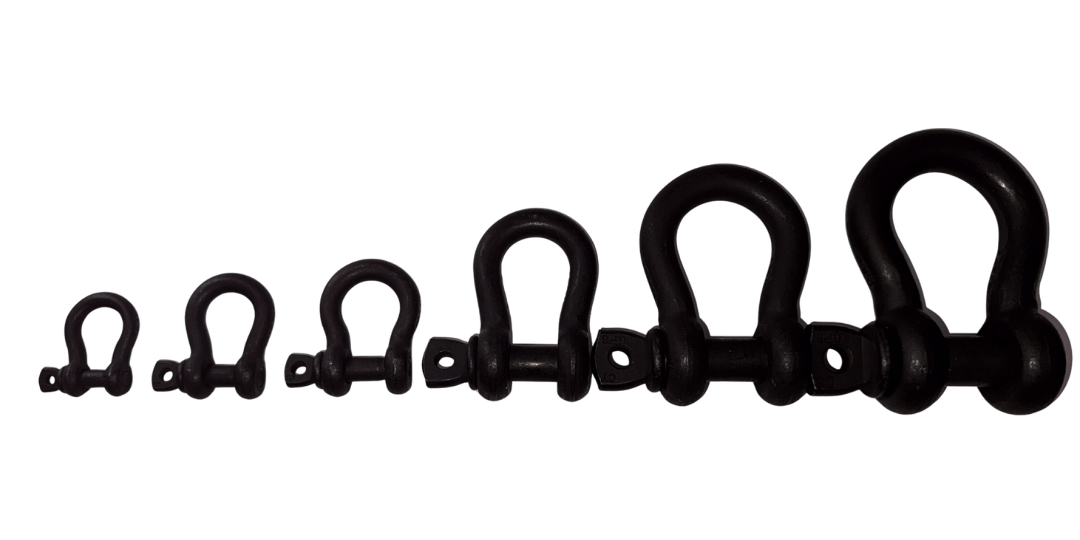

  • Green Pin Theatre Shackle SC full size range lineup, all sizes matte black - imagen 31

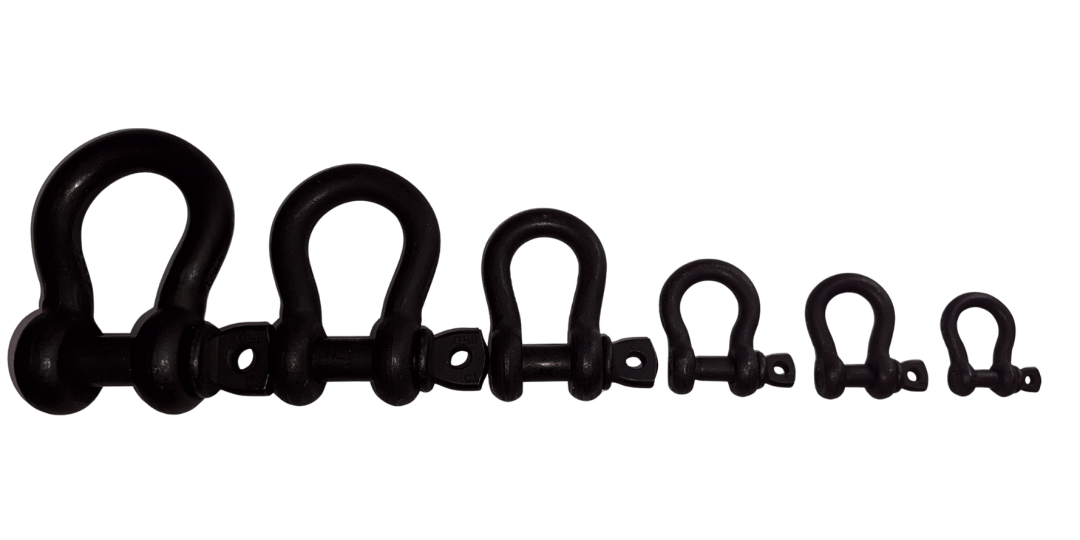

  • Green Pin Theatre Shackle SC complete size range from 0.33t to 8.5t WLL - imagen 32

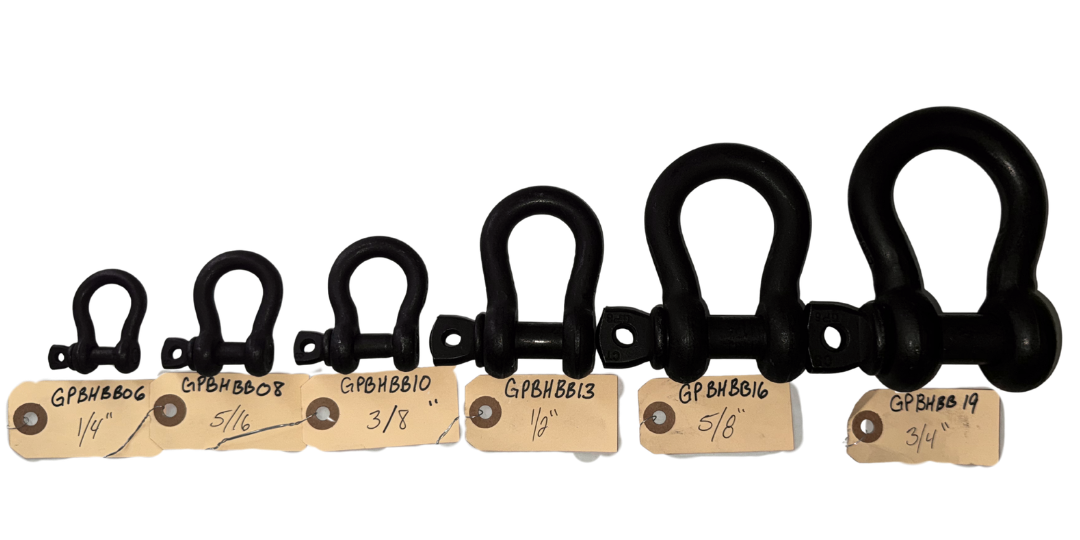

  • Green Pin Theatre Shackle SC full range with screw pins displayed - imagen 33

Green Pin® Theatre Shackle SC

Green Pin |
SKU: GPBHBB05
Sizes: 3/16"
Quantity: 1 pc
  • No glare or unwanted reflections thanks to the matte black finish.
  • Quick assembly with screw collar pin.
  • Designed for theater and stage rigging.
  • The recessed chamber in the shackle eye protects the screw thread and helps reduce wear.
  • Reliable Green Pin® quality and support
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
Green Pin® Theatre Shackle SC
+
Lift All Wire Rope 3/8" Thimble-Thimble
+
MTN Round Slings
+
MTN Round Slings Black Steel-Tex
Please select country
Please enter correct zip code
Test heading

Green Pin® Theatre Shackle SC

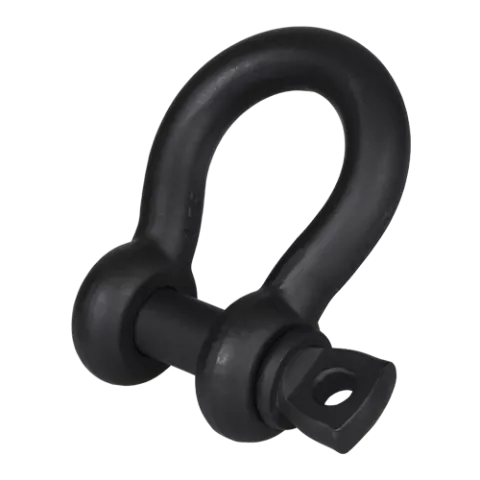

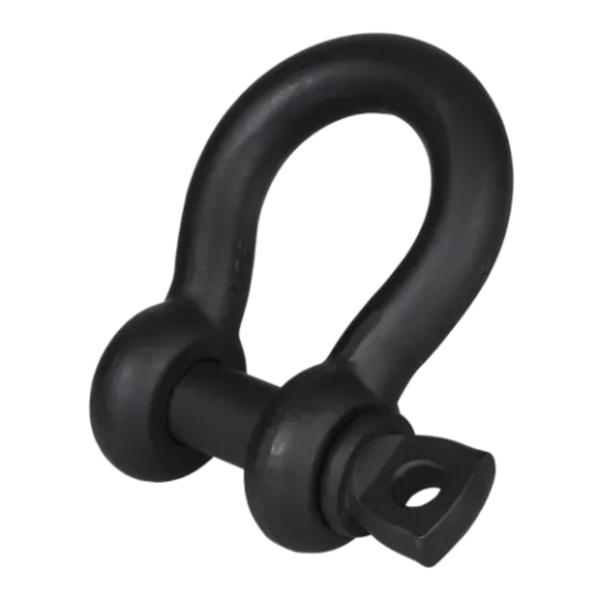

The Green Pin® Theatre Shackle SC is a matte black bow shackle with a screw collar pin, specifically designed for use in theaters, stages, and entertainment venues. Its non-reflective black finish eliminates unwanted glare and reflections, ensuring that it does not distract from stage performances or lighting effects.

The screw pin design allows for quick and easy assembly and disassembly, making it ideal for rigging applications where equipment is frequently installed and removed. In addition, the shackle features a recessed chamber in the eye that conceals the screw thread and helps reduce rope wear during use.

Available in a range of working load limits from 0.33 up to 8.5 tons, the Green Pin® Theatre Shackle SC combines professional functionality with the trusted reliability and quality of Green Pin® products.

Product Features:

  • Matte black bow shackle with screw collar pin
  • Designed specifically for theaters and entertainment venues
  • Non-reflective finish eliminates glare and light reflections
  • Screw pin enables quick assembly and disassembly
  • Recessed chamber in the shackle eye protects the screw thread
  • Reduces rope wear during operation
  • Ideal for frequent rigging applications
  • Available with working load limits from 0.33 t to 8.5 t
  • Reliable Green Pin® quality and support



Note: Main dimensions, general info and warnings can be found in our latest catalogue.

If the recommendations in this product information are followed performance of the shackles is guaranteed:

  • permanent identification marks, or symbols, are to be made by dot peen marking or with stamps having rounded profiles (low stress stamps).
  • laser markings are allowed as long as the heat of the laser does not influence the material structure and properties in a negative way. The laser marking must be legibly and indelibly marked in a place where the markings will not be removed by use.
  • the number of marks on a shackle is to be kept to the minimum.
  • the use of fractions and oblique strokes is to be avoided and a dot or hyphen is preferable to a dividing line.
  • values of WLL are, generally, to be marked to one place of decimals (except for 0.25 and 0.75) up to 100 t and in integers thereafter. The word “tonnes” may be abbreviated to “t”.
  • recommended sizes of marks are
    • Diameter of part to be marked > recommended size of mark
    • less then 12.5 mm > 3.0 mm
    • 12.5 to 26 mm > 4.5 mm
    • over 26 mm > 6.0 mm

Typical arrangements of marks can be found in the following illustrations.

Additional stamping on Green Pin<sup>®</sup> Shackles 1

Additional stamping on Green Pin<sup>®</sup> Shackles 2Additional stamping on Green Pin<sup>®</sup> Shackles 3

COMPLETE YOUR SETUP

RELATED PRODUCTS

Explore compatible accessories and related products.

Frequently Asked Questions

Are there any recommendations for the inspection of shackles?
It is required that shackles are regularly inspected and that the inspection should take place in accordance with the safety standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading etc. with a consequence of deformation and alteration of the material structure.
Inspection should take place at least every six months and even more frequently when the shackles are used in severe operating conditions.

Shackles should be inspected to ensure that:
✓ all markings are legible;
✓ the body and pin are both identifiable as being of the same size, type and make;
✓ the threads of the pin and the body are undamaged;
✓ for a safety bolt type shackle is used with the split cotter pin;
✓ the body and the pin are not distorted or unduly worn;
✓ the body and pin are free from nicks, gouges, cracks and corrosion;
✓ shackles are not heat treated as this may affect their Working Load Limit;
✓ the shackle is not modified, repaired or reshaped by welding, heating, machining or bending as this will affect the Working Load Limit;

Remove the shackle from service if:
✓ all markings are not clearly legible;
✓ body and pin can not be identified as being from same size, type and make;
✓ the threads of the pin and/or body are damaged;
✓ for a safety bolt type shackle the split cotter pin is missing;
✓ the body and/or pin is distorted or unduly worn, the maximum allowable wear is 10% of the original dimension;
✓ the body and/or pin is not free from nicks, gouges, cracks or corrosion;
✓ the shackle has been exposed to any heat treatment;
✓ the shackle is modified, repaired or reshaped by welding, heating, machining or bending;
✓ it is expected that before the next periodical inspection any of the inspection criteria above will not be passed;
Is it allowed to weld on Green Pin® lifting equipment?
No! Green Pin® products are treated with well designed heat treatment, which results in a certain Minimum Break Load and other specific mechanical properties. These properties will be destroyed by the heat of welding. It even can initiate extreme hard spots and initial cracks, that will decrease the strength and fatigue life dramatically. An exception is made for Green Pin® GH and PAS products, as these need to be welded to a surface to function. For these items, please follow the instructions that are available at Green Pin® sales.
We have redesigned the entire range of Green Pin® screw pin shackles, what's new?
In the past, one or two pitches of thread were often visible on the shackle pin next to the threaded shackle eye. Earlier design, after assembly some of the threading is visible at the shackle eye:

Today, we machine a small chamber in the treaded eye of all our Green Pin® shackle bodies for screw pin shackles.

The thread is now fully covered by the shackle eye, leaving the bearing surface of your shackle pin entirely smooth. This is good news for your counter components like soft slings or steel wire ropes: they can no longer be damaged by any threading on the shackle pin.

This modification is fully incorporated in our product designs, meaning the products comply with all standards and certifications mentioned in our catalogue.
What do the abbreviations in Green Pin® product names stand for?
BN = Bolt & Nut, or safety bolt
CL = Clevis
CP = Cotter Pin
D = D-Handle
E = Eye
EE = Eye-Eye
EJ = Eye-Jaw
EH = Eye-Hook
F = F-Handle
FN = Fixed Nut
FP = Flush Pin
GR10 = Grade 10
GR5 = Grade 5
GR8 = Grade 8
HH = Hook-Hook
HK = Hook
H-type = Horizontal
JJ = Jaw-Jaw
ROV = Remotely Operated Vehicle
S = Shackle
S/S = Stainless Steel
SC = Screw Collar, or Screw Pin
SCL = Swivel Clevis
SE = Swivel Eye
SQ = Square headed Screw Pin
U-type = Universal (Horizontal and Vertical)
V-type = Vertical
How are Green Pin® shackles different?
Green Pin® shackles are known for their robust quality and versatility, are differentiated across various attributes which suit specific needs in different industries, including construction, maritime, and heavy lifting. They differ in grade, certificate, crown width, end fitting, number of safeties and special features.
