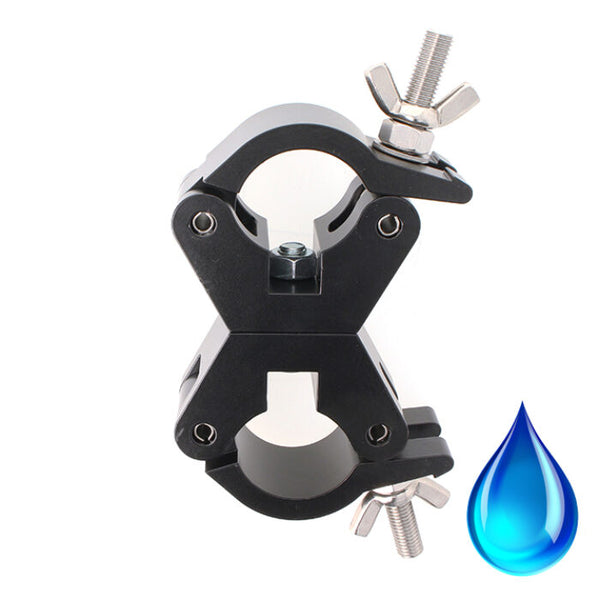

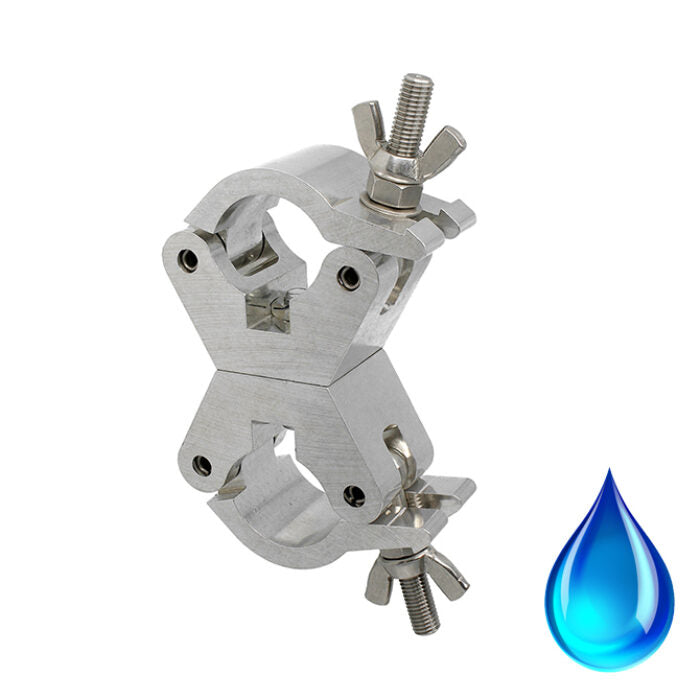

Doughty Swivel Coupler with Stainless Eye Bolt

Doughty Swivel Coupler with Stainless Eye Bolt

A high tensile extruded silver double swivel coupler suitable for 48mm – 51mm (1.89” – 2.01”) diameter tubes.

Allows two tubes 48mm – 51mm (1.89” – 2.01”) to attach to each other.

Supplied with stainless steel fastenings which make it ideal for use at outdoor events.

Downloads:

Data Sheet

2D DWG

3D Step

Key Features:

• High tensile extruded aluminum construction for enhanced durability
• Double swivel functionality for flexible tube positioning
• Compatible with 48mm – 51mm (1.89” – 2.01”) diameter tubes
• Stainless steel fastenings ideal for outdoor use
• Designed for secure and efficient tube-to-tube connection

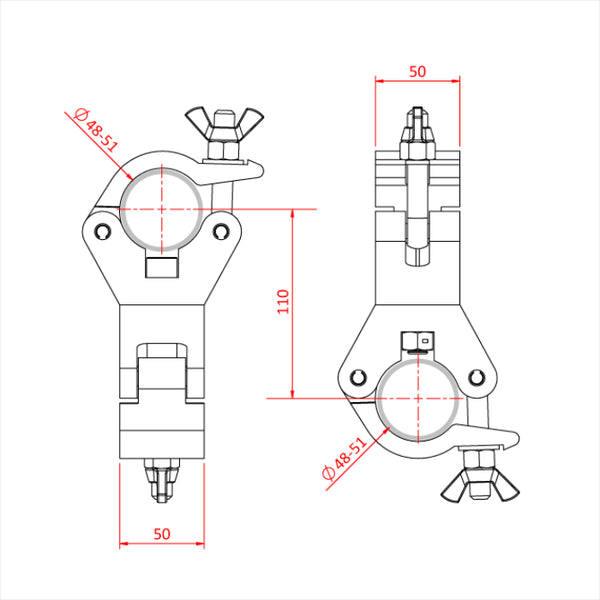

Specifications:

• WLL: 750kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Tube Centres: 110mm (4.33")
• Material: High tensile extruded aluminum with stainless steel fastenings

References:

• ST57100 Data Sheet
• ST57100-ST57110 2D DWG
• ST57100-ST57110 3D Step File

Engineered for professionals in the rigging and staging industries, the Doughty Swivel Coupler with Stainless Eye Bolt delivers strength, precision, and adaptability for demanding environments.
