Doughty Swivel Coupler

Doughty Swivel Coupler

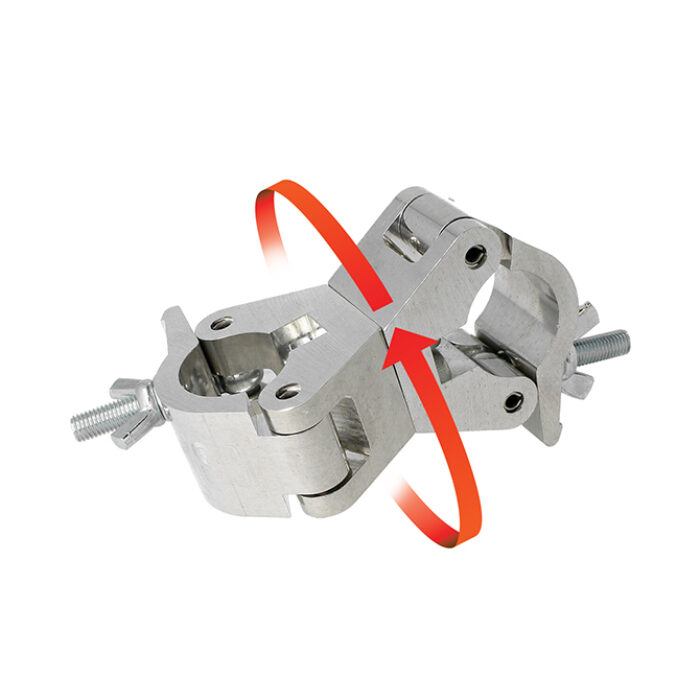

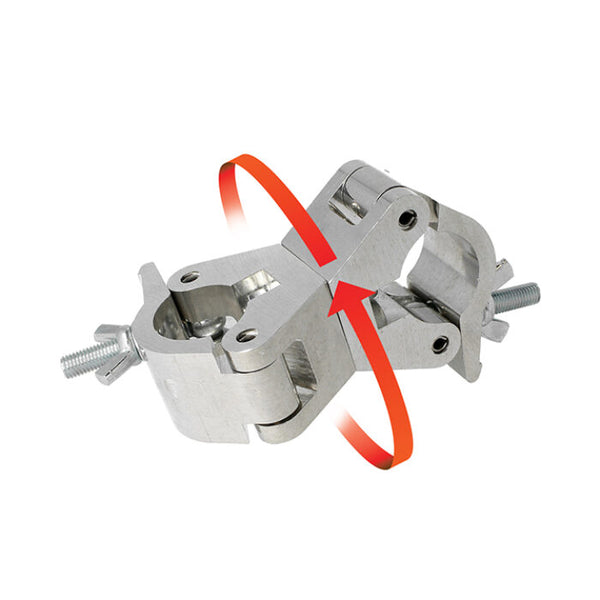

The Doughty Swivel Coupler is designed to mount two tubes at any angle quickly and securely, offering 360 degrees of rotational movement. This makes it ideal for structural bracing applications, such as reinforcing a truss with an additional tube.

The industry standard half coupler factory fitted with an Eye Nut. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes and is 50mm (1.97 lbs) wide. Ideal for trussing as it will not damage the cords.

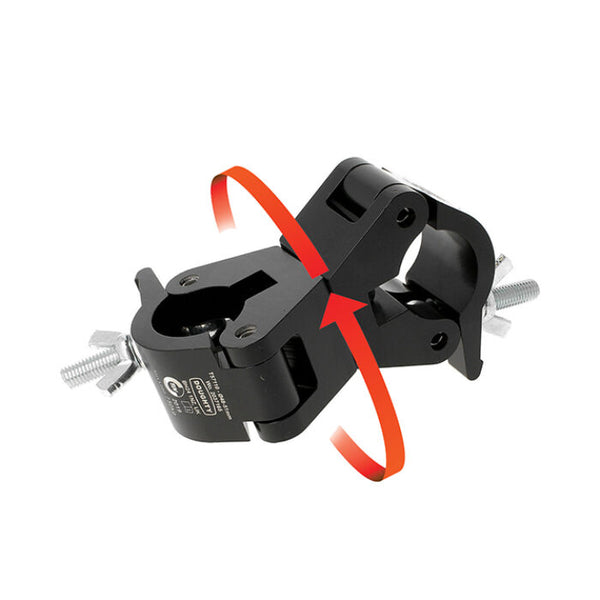

Available in polished silver or powder coated black.

WLL: 340Kg

Downloads:

Data Sheet

Key Features:

• Factory fitted with an Eye Nut for secure rigging applications
• Constructed from high tensile extruded aluminium for strength and durability
• Compatible with 48mm to 51mm (1.89” – 2.01”) diameter tubes
• Clamp width of 50mm (1.97 lbs) ensures stability and load distribution
• Ideal for trussing; designed not to damage cords

Specifications:

• WLL: 340Kg

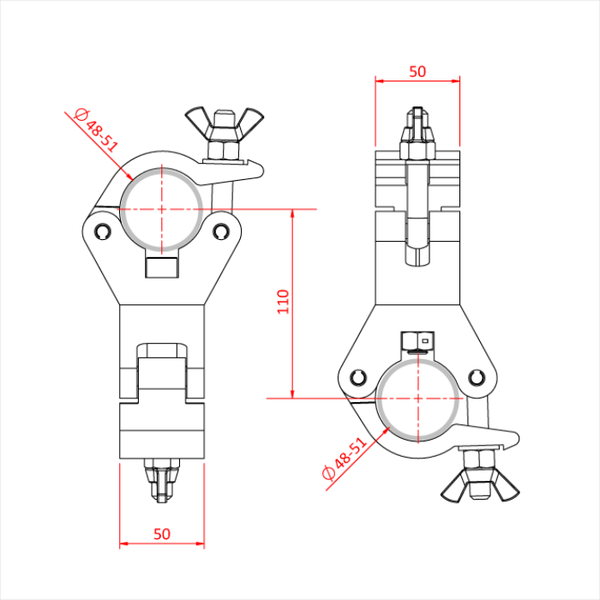

• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Finish: Polished silver or powder coated black

References:

• Doughty Engineering Official Data Sheet
• Product Code: T57100 / T57110
• Used in professional trussing and rigging systems
