Doughty Slimline Doughty Half Coupler

Doughty Slimline Doughty Half Coupler

This Doughty Half Coupler is the basis of the slimline range of Doughty Clamps. Its slim shape allows the clamp to be used between truss webs etc.

The industry standard slimline half coupler. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 750Kg and is 30mm (1.18″) wide. Slotted to hold captive an M12 nut or bolt head. Ideal for trussing as it will not damage the cords.

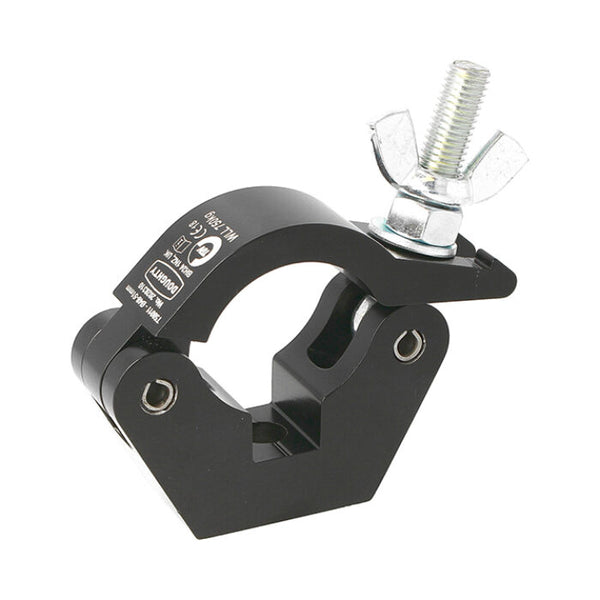

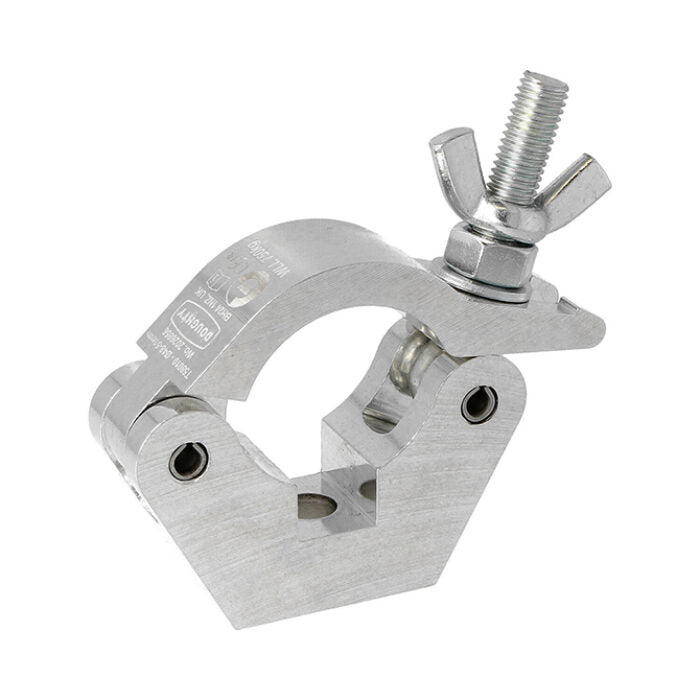

Available in polished silver or powder coated black

Downloads:

User Manual

Key Features:

• Industry standard slimline half coupler
• High tensile extruded aluminium construction
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Slotted to hold captive an M12 nut or bolt head
• Ideal for trussing applications without damaging cords

Specifications:

• WLL: 750kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)

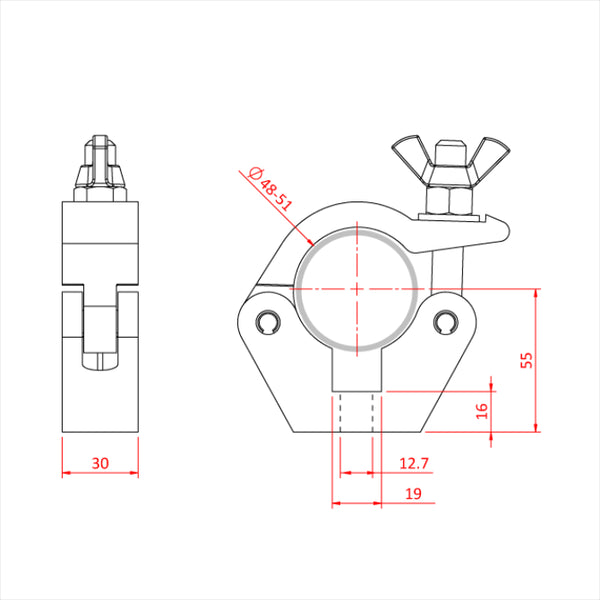

• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Finish Options: Polished silver or powder coated black

References:

• Doughty Engineering
• Product Code: T57001 – T57011
• Data Sheet
