Doughty Slimline Quick Trigger TV Clamp (with 29mm receiver)

Doughty Slimline Quick Trigger TV Clamp (with 29mm receiver)

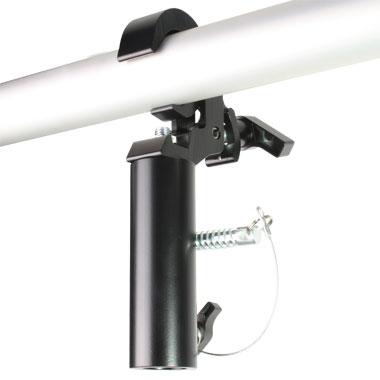

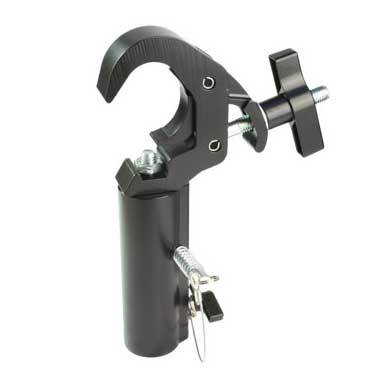

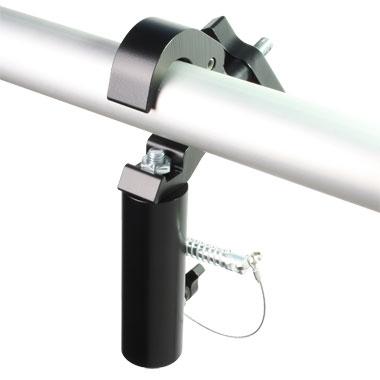

The Doughty Slimline Quick Trigger TV Clamp is manufactured from high tensile Aluminum Extrusion and supplied fitted with a 1.14'' diameter Receiver. It is designed predominantly for use in the TV and Film industries for attaching round tubes or truss chords and for suspending equipment.

Featuring a large Easy-grip handle, this clamp allows for quick and secure attachment, making it ideal for fast-paced production environments. Its slimline profile is perfect for tight rigging spaces without compromising strength or reliability.

Engineered for professional use, the clamp ensures a secure fit on tubing ranging from 1.5'' to 2'' in diameter and supports up to 220 lbs. The powder painted black finish offers a sleek, non-reflective appearance suited to studio and stage use.

Downloads:

User Manual

Key Features:

• Manufactured from high tensile Aluminum Extrusion
• Fitted with a 1.14'' diameter Receiver (29mm)
• Large Easy-grip handle for convenient operation
• Ideal for TV and Film rigging applications
• Slimline design for use in compact rigging setups

Specifications:

• SWL: 220 lbs
• Tube Diameters: 1.5'' - 2''
• Width: 1.18''
• Fixings: 1.14'' Receiver
• Weight: 1.37 lbs

References:

• Material: Aluminum
• Finish: Powder Painted Black
• Manufacturer: Doughty Engineering (UK-based, established 1985)

Doughty Engineering is a leading UK manufacturer specializing in rigging, suspension, and lifting equipment for film, TV, theatre, and concert venues. As a proud member of ESTA and PLASA, Doughty upholds the highest standards in product safety and quality.
