Doughty Slimline Quick Trigger Hook Clamp (Aluminum)

Doughty Slimline Quick Trigger Hook Clamp (Aluminum)

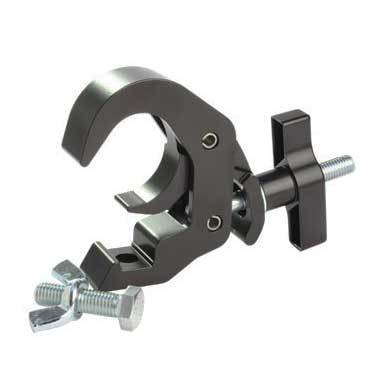

The Doughty Slimline Quick Trigger Hook Clamp is manufactured from high tensile Aluminum Extrusion and supplied with a Wing Nut and M12 Bolt Fixing. With a slotted base to hold an M12 Nut or Bolt, it enables users to create fixings suited to their own individual requirements. This is an extremely useful truss clamp for hanging valuable luminaires safely and easily.

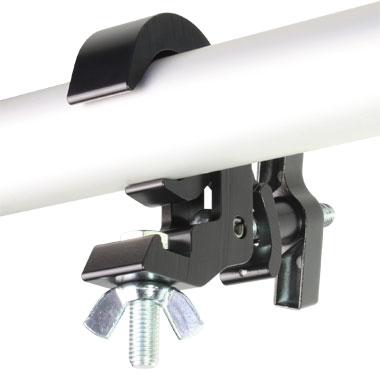

A large Easy-grip handle is fitted for ease of use and the Clamp's 1.18'' width allows it to be used between truss webs etc. Broadly used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords and for suspending equipment.

Downloads:

Spec Sheet - Cert

Key Features:

• High tensile Aluminum Extrusion construction for durability
• Slotted base accommodates M12 nut or bolt for custom fixings
• Easy-grip handle enhances usability and installation efficiency
• 1.18'' width fits between truss webs for versatile rigging
• Ideal for theatre, film, TV, and photographic applications

Specifications:

• SWL: 220 lbs
• Tube Diameters: 1.5'' - 2''
• Width: 1.18''
• Fixings: M12 x 45 Bolt & Wing Nut
• Weight: 1.25 lbs

References:

• Material: Aluminum
• Finish: Zinc Plated & Powder Painted
• Manufacturer: Doughty Engineering (UK)

Doughty Engineering is a UK-based entertainment equipment manufacturer established in 1985. As a global leader in rigging, suspension, and lifting equipment for film, television, theatre, and concert venues, Doughty adheres to strict quality and safety standards and is a member of ESTA and PLASA.
