Doughty Eye Clamp: Slimline Quick Trigger Hanging Clamp

Doughty Eye Clamp: Slimline Quick Trigger Hanging Clamp

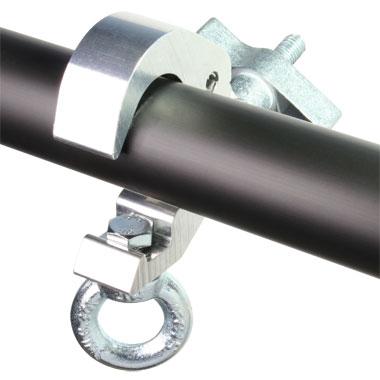

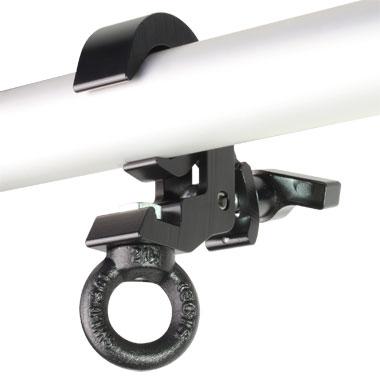

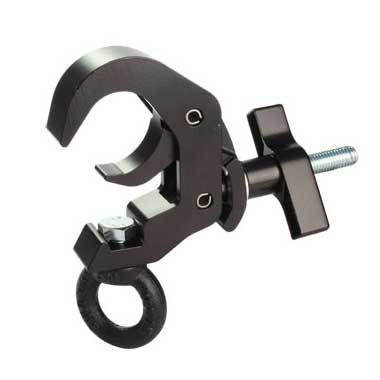

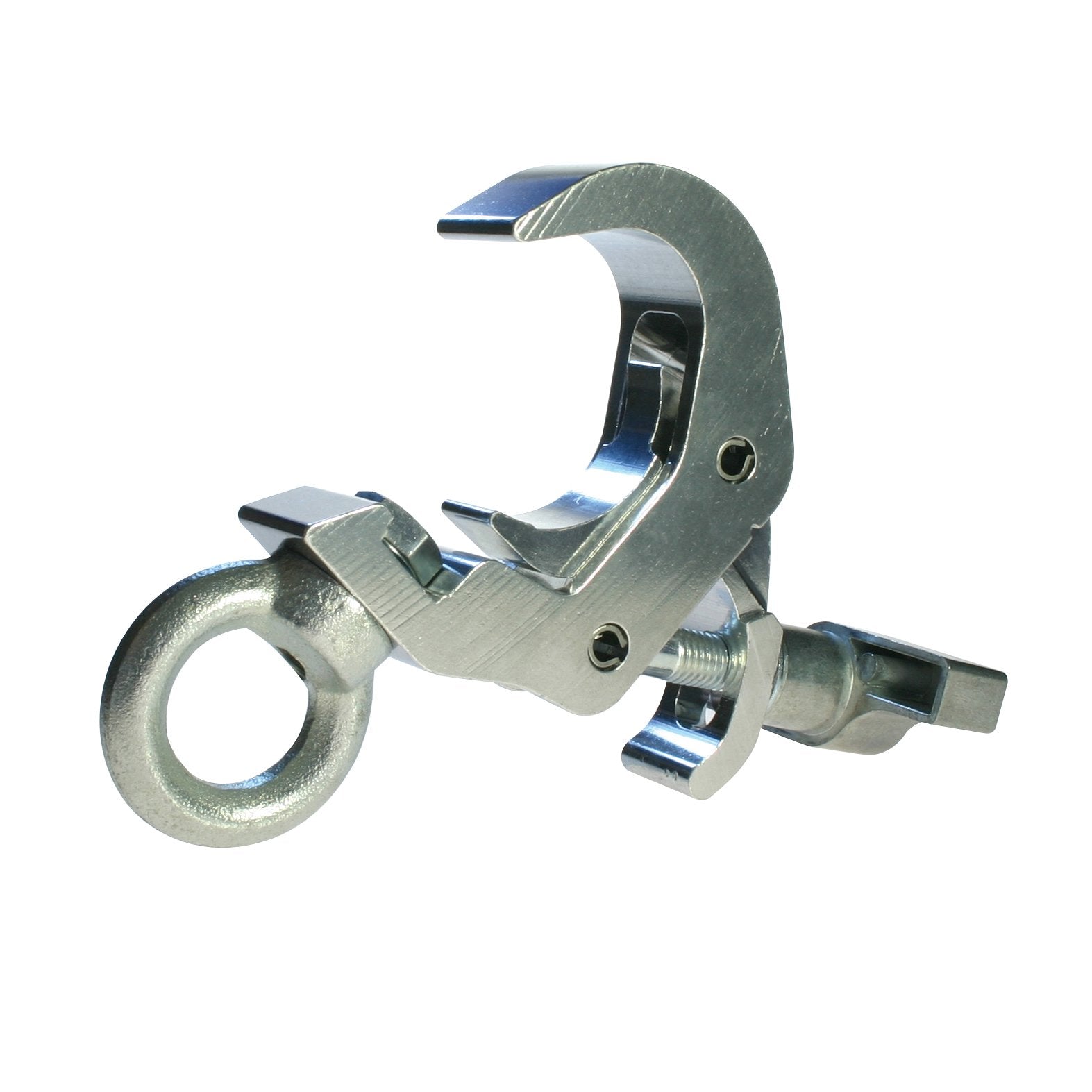

The Slimline Quick Trigger Eye Clamp is supplied fitted with an Eyenut with 30mm diameter for suspending wire hung loads. A large Easy-grip handle is also fitted for ease of use. It is slim enough to be mounted between truss webs etc.

Manufactured from high tensile Aluminium Extrusion, it is ideally used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords and suspending luminaries or other equipment. For any inquiries, please contact us via chat.

Please browse the whole range of eye clamps on Doughty collection for different sizes and functions.

Downloads:

Spec Sheet - Cert

Key Features:

• Fitted with a 30mm diameter Eyenut for suspending wire hung loads
• Equipped with a large Easy-grip handle for convenient operation
• Slimline design allows mounting between truss webs
• Constructed from high tensile Aluminium Extrusion
• Perfect for use in theatre, film, TV, and photographic applications

Specifications:

• SWL: 100 Kg
• Tube Diameters: 38mm to 51mm
• Width: 30mm
• Fixings: M12 Eye Nut
• Weight: 0.70 Kg
• Material: Aluminum
• Finish: Black or Polished Aluminium

References:

• Doughty Engineering
• Slimline Quick Trigger Eye Clamp
• Part No: T58315 / T58316
