Doughty Quick Trigger TV Clamp (Aluminum)

Doughty Quick Trigger TV Clamp (Aluminum)

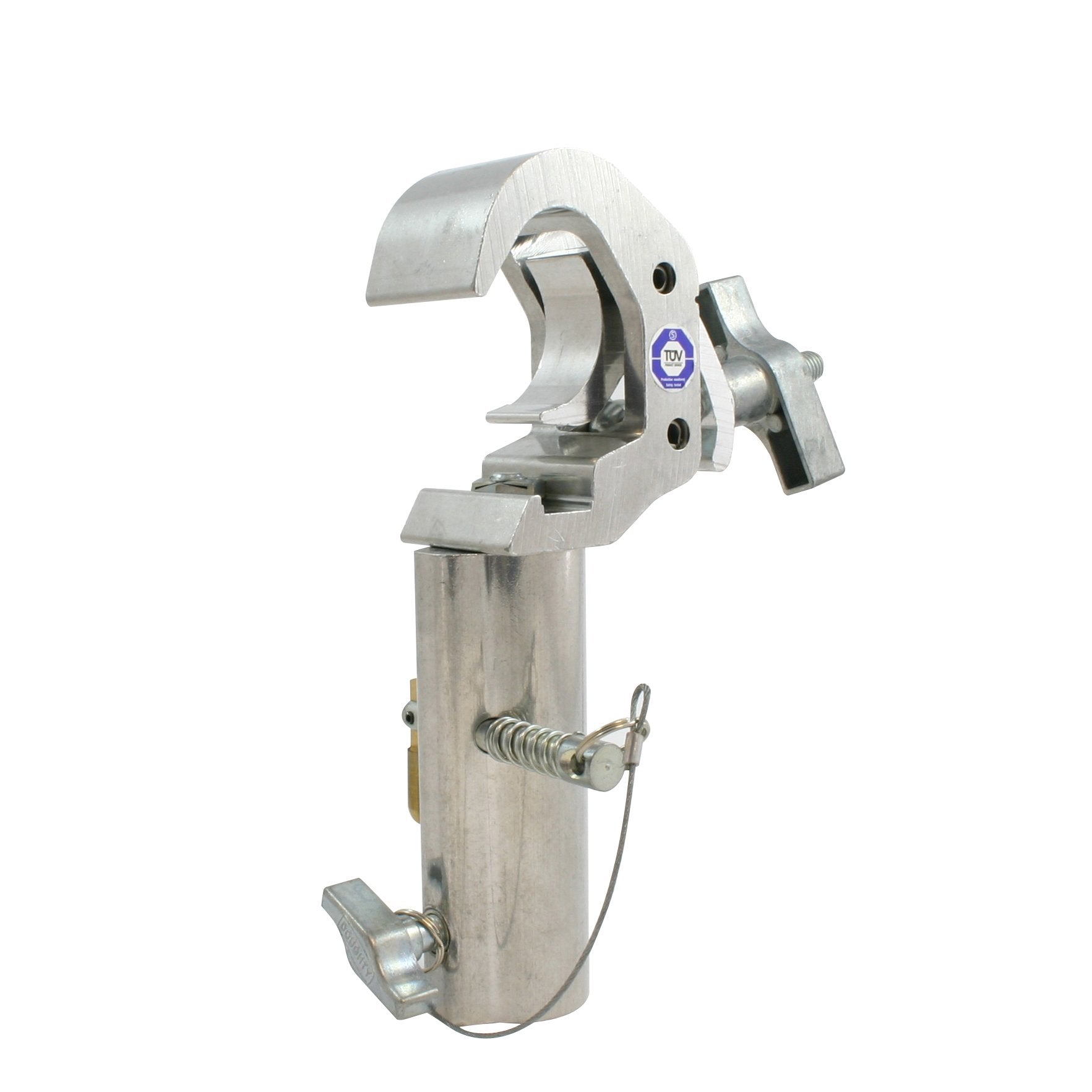

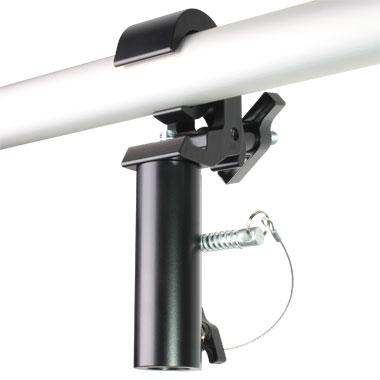

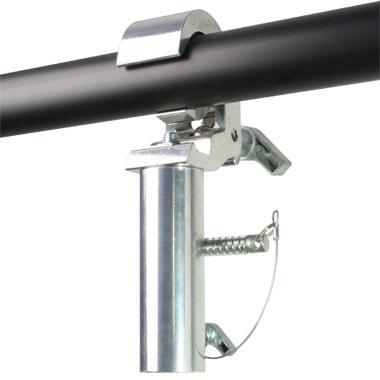

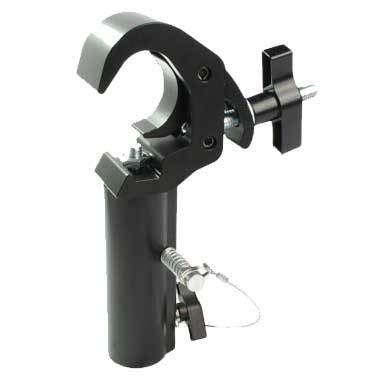

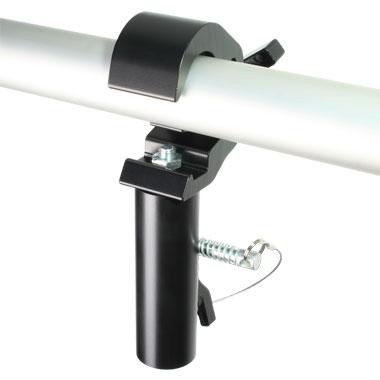

The Doughty Quick Trigger TV Clamp is supplied fitted with a 1.14'' diameter Receiver. This Clamp is designed predominantly to attach to round tubes or truss chords and suspend equipment and luminaries in the TV/Film industry.

A large Easy-grip handle is fitted for ease of use. The spring-loaded jaws stay open and automatically close with the weight of the object being hung, leaving both hands free to lift and position the load.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Fitted with a 1.14'' diameter receiver for secure mounting
• Spring-loaded jaws enable hands-free positioning of loads
• Designed for round tubes and truss chords in TV/Film applications
• Easy-grip handle allows for effortless operation
• Constructed from high tensile aluminum for strength and durability

Specifications:

• SWL: 441 lbs
• Tube Diameters: 1.5'' - 2''
• Width: 2''
• Fixings: 1.14'' receiver
• Weight: 2.56 lbs

References:

• Spec Sheet
• User Manual
• Cert

Doughty Engineering, established in 1985 and based in the UK, is a globally recognized manufacturer of rigging, suspension, and lifting equipment for the entertainment industry. As a member of ESTA and PLASA, Doughty maintains strict adherence to the highest standards of quality and safety in the film, TV, theatre, and live production sectors.
