Doughty Eye Clamp: Quick Trigger Hanging Clamp

Doughty Eye Clamp: Quick Trigger Hanging Clamp

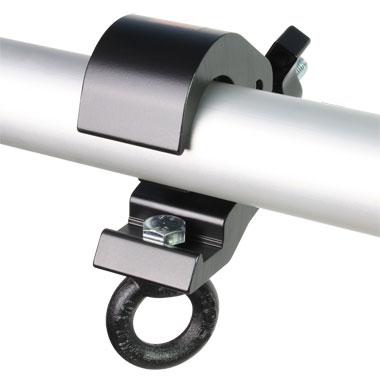

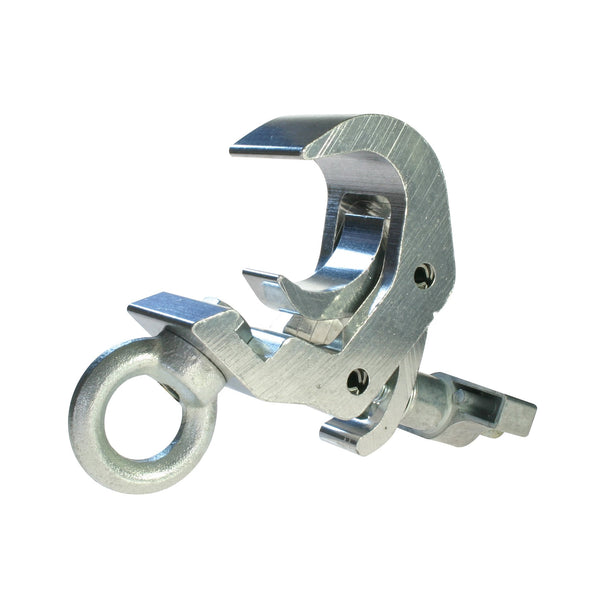

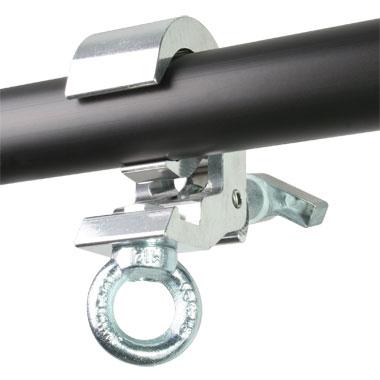

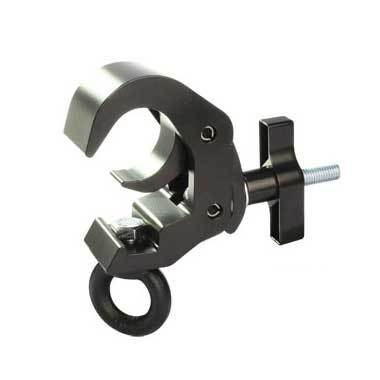

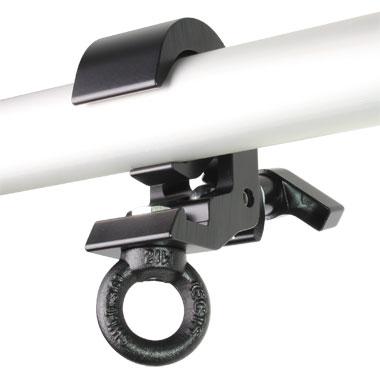

The Doughty Quick Trigger Eye Clamp is supplied fitted with an Eye Nut. This Clamp is ideal for suspending wire hung loads. The spring-loaded jaws stay open and automatically close with the weight of the object being hung, leaving both hands free to lift and position the load.

This truss clamp has a large Easy-grip handle fitted and is safe and easy to use. Broadly applicable in the theatre, film, TV and photographic industries.

For any inquiries, please contact us via chat.

Downloads:

User Manual

Key Features:

• Fitted with an M12 Eye Nut for secure suspension
• Spring-loaded jaws for hands-free operation
• Easy-grip handle for safe and simple use
• Designed for wire hung loads commonly used in theatre, film, TV, and photography
• Available in polished aluminum or black powder coated finish

Specifications:

• SWL: 551 lbs
• Tube Diameters: 1.5'' - 2''
• Width: 2''
• Fixings: M12 Eye Nut
• Weight: 2.1 lbs

References:

• Spec Sheet
• User Manual
• Cert

Doughty Engineering, established in 1985, is a leading UK-based manufacturer of rigging, suspension, and lifting equipment for the entertainment industry. As a member of ESTA and PLASA, Doughty maintains strict adherence to the highest safety and quality standards.
