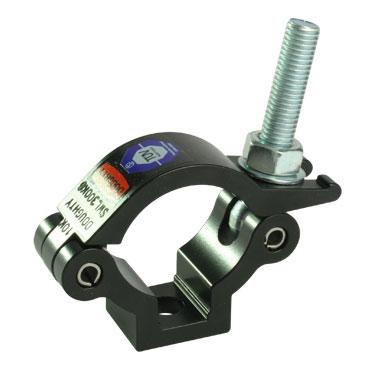

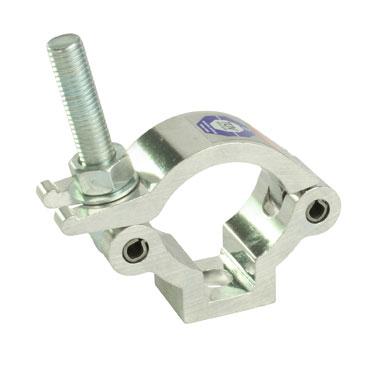

Doughty Slimline Lightweight Half Coupler
The Doughty Slimline Half Coupler is an extremely lightweight clamp with a weight of just 0.53 lbs, only 38% of the standard version. With a width of 1.18'' this clamp can be used between truss webs etc. This is the basis of the range of Slimline and Lightweight Doughty Clamps.
This Half Coupler has a slotted base to hold an M12 Nut or Bolt enabling users to create fixings suited to their own individual requirements.
Manufactured from high tensile Aluminum Extrusion. Widely used in the theatre, film, TV and photographic industries to attach to round tubes/truss chords and suspend equipment and luminaries.

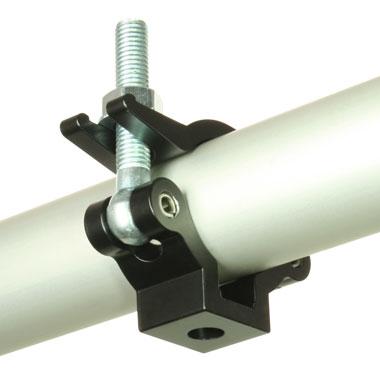

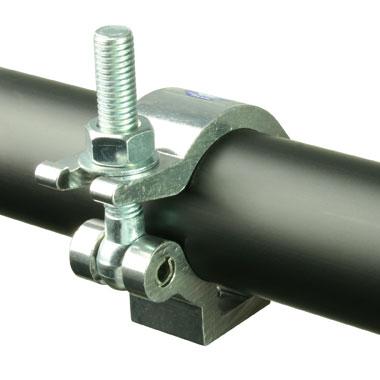

Half Coupler Demonstration - A Light Hanging Onto a Truss
For any inquiries, please contact us via chat.
SPECIFICATIONS
- TÜV Tested and Approved
- SWL: 660 lbs
- Tube Diameters: Fit 2'' diameter tube
- Width: 1.18"
- Fixings: M12 Hole
- Weight: 0.53 lbs
- Material: High tensile 6082-T6 aluminum
- Finish: Black or Polished Aluminum
Doughty Half Coupler Infographic
Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.
Quality and safety are key issues for Doughty. All our products are subjected to the most rigorous testing possible and, where appropriate, are approved by the TÜV product services. Such products show the TÜV logo.
Doughty® are members of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association) and adhere strictly to the standards of trading expected
