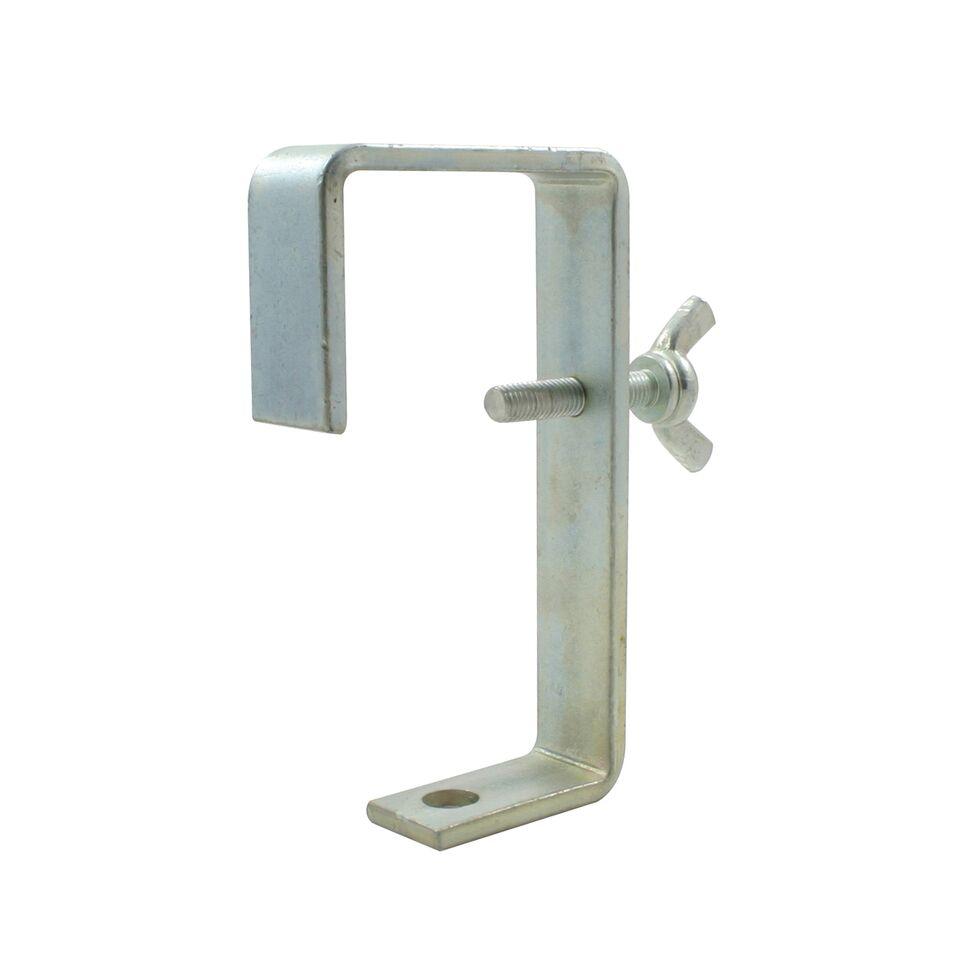

Doughty 3'' Hook Clamp

Doughty 3'' Hook Clamp

Manufactured from high-quality steel, the 3'' Doughty Hook Clamp is simple to use and extremely strong. This is a larger Hook Clamp designed to fit 2.4'' - 3'' diameter bars, making it ideal for a wide range of rigging applications in entertainment and industrial settings.

The clamp is available in both standard and heavy-duty versions. The heavy-duty model, T21810, offers an impressive Safe Working Load (SWL) of 331 lbs, making it suitable for more demanding setups. Both versions feature a fixing hole of 0.5'' and are stamped with their respective SWLs for safety compliance.

Available in either a bright zinc plated finish or black powder paint, this clamp combines durability with a professional appearance. For other options, explore the full range of Doughty Hook Clamps or reach out via our live chat.

Downloads:

User Manual (Standard)

User Manual (Heavy-Duty)

Key Features:

• Fits tube diameters from 2.4'' to 3''
• Manufactured from high-quality steel for enhanced durability
• Available in standard (110 lbs SWL) and heavy-duty (331 lbs SWL) versions
• Stamped with Safe Working Load (SWL) for safety assurance
• Offered in bright zinc plated or black powder coated finishes

Specifications:

• SWLs & Weights: T21805/T2180501: 110 lbs & 0.8 lbs
• SWLs & Weights: T21810/T2181001: 331 lbs & 2.4 lbs
• Tube Diameter Compatibility: 2.4'' - 3''
• Fixing Hole: 0.5'' for both versions
• Material: Steel

References:

• Doughty Hook Clamp Collection
• Spec Sheet - Standard Hook Clamp
• Spec Sheet - Heavy-Duty Hook Clamp

Doughty Engineering, a UK-based manufacturer since 1985, is trusted globally for rigging, suspension, and lifting equipment. All products undergo rigorous testing and many are TÜV certified, ensuring the highest standards in safety and quality. A proud member of PLASA, Doughty maintains strict compliance with professional trade standards.
