Doughty Articulated Big Ben Clamp

Doughty Articulated Big Ben Clamp

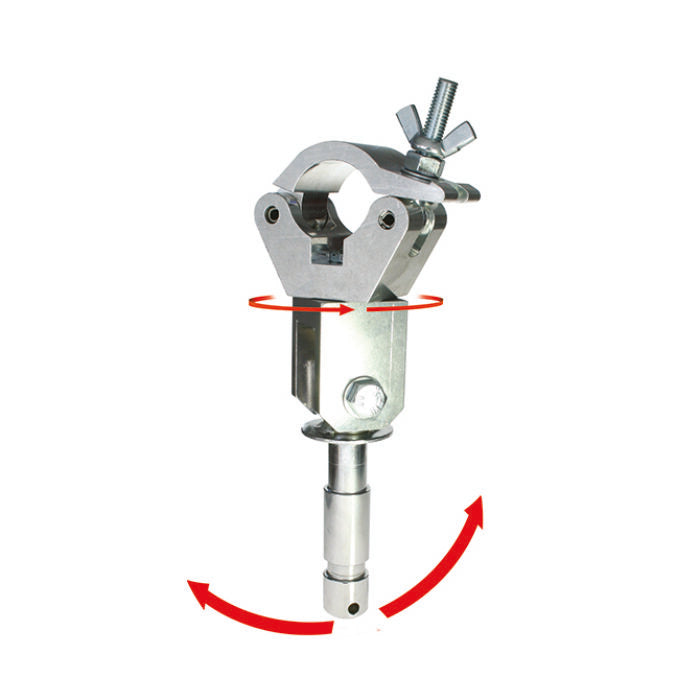

The Doughty Articulating Swivel Big Ben Clamp is supplied with a 1.1'' Spigot. This Clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands.

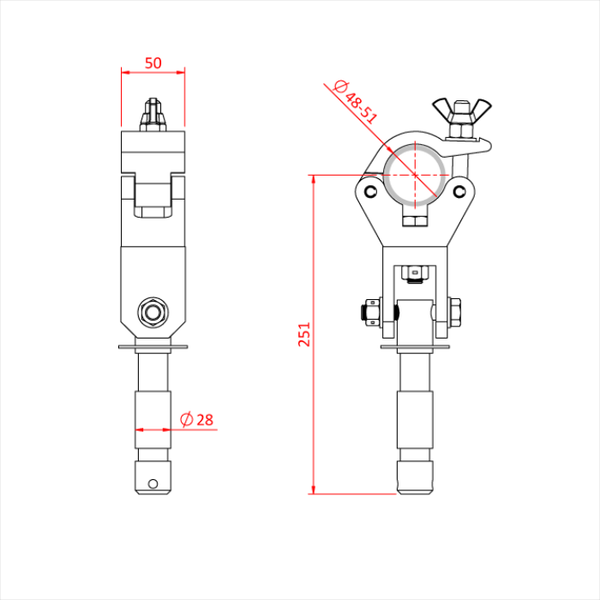

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide, factory fitted with a 28mm (1.10″) diameter TV spigot. This clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands. Available in polished silver.

Downloads:

Data Sheet

Key Features:

• High tensile extruded aluminium construction
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Factory fitted with a 28mm (1.10″) diameter TV spigot
• 360-degree rotation and swivel function for single-person rigging
• Available in polished silver finish

Specifications:

• WLL: 200Kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• TV Spigot Diameter: 28mm (1.10″)

References:

• Doughty Engineering
• Model: Articulated Big Ben Clamp
• Part Number: T57227
