Doughty Atom Hook Clamp
Product No. T58997
Regular price
$33.28
$33.28
Pay in full or split into interest-free installments with Shop Pay.
Shipping calculator
Please enter correct zip code
Payment methods
Product details

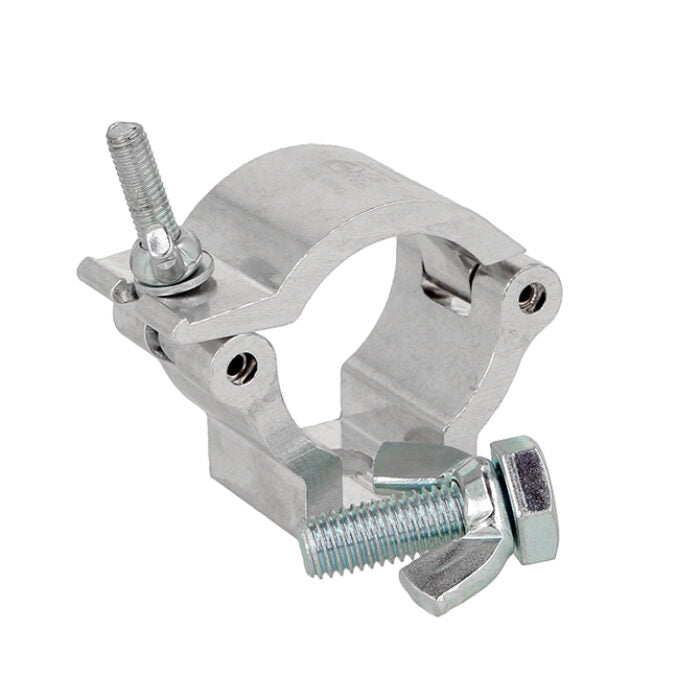

Doughty Atom Hook Clamp
A high tensile extruded aluminium clamp that is suitable for 38mm (1.5″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M10 nut or bolt head and supplied with an M10 X 30 bolt and wing nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- Constructed from high tensile extruded aluminium
- Compatible with 38mm (1.5″) diameter tubes
- Slotted to retain M10 nut or bolt head
- Supplied with M10 X 30 bolt and wing nut

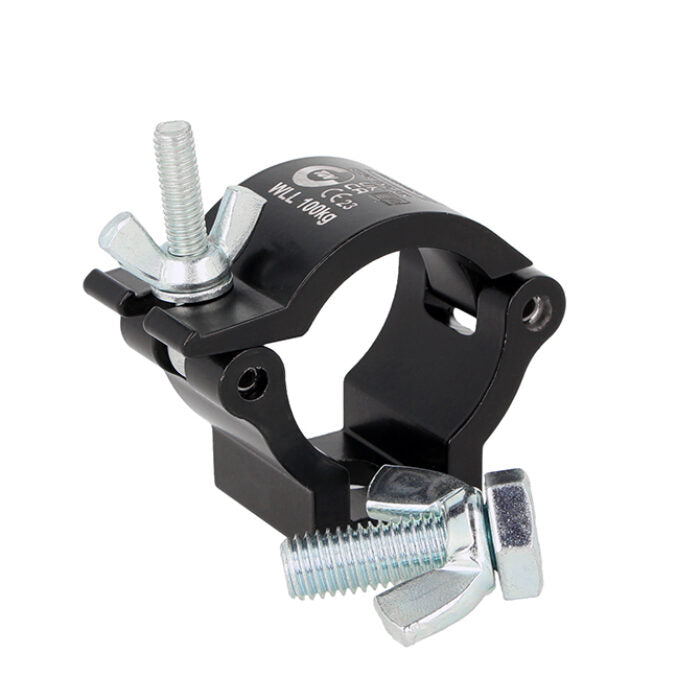

- Available in polished silver or powder coated black

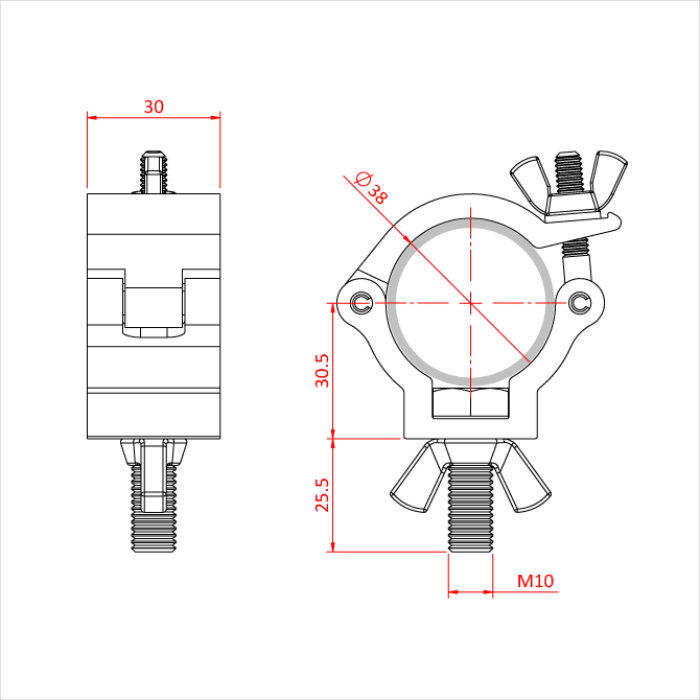

Specifications:
- WLL: 100Kg
- Tube Diameter: 1½"-38mm
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Finish: Polished silver or powder coated black
References:
- Doughty Engineering
- Product Code: T58997 / T5899701
- Official Product Data Sheet
