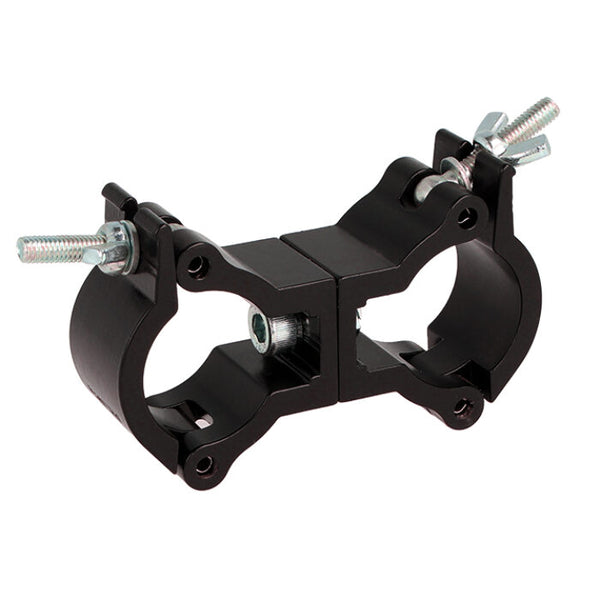

Doughty Parallel Coupler (35mm Atom Clamp), (Cheeseboro)

Doughty Parallel Coupler (35mm Atom Clamp), (Cheeseboro)

The Doughty Parallel Coupler (35mm Atom Clamp), also known as a Cheeseboro, offers a robust and reliable solution for connecting two parallel bars. Specifically engineered to fit 35mm diameter tubes, this coupler is ideal for use in demanding environments where secure and fast fixing is essential.

Consists of a pair of high tensile extruded aluminium clamps back to back, locked parallel that are suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction for strength and durability
• Designed for 35mm (1.38″) diameter tubes
• Parallel locking configuration with back-to-back clamps
• Clamp width of 30mm (1.18″) ensures secure fit without damaging cords

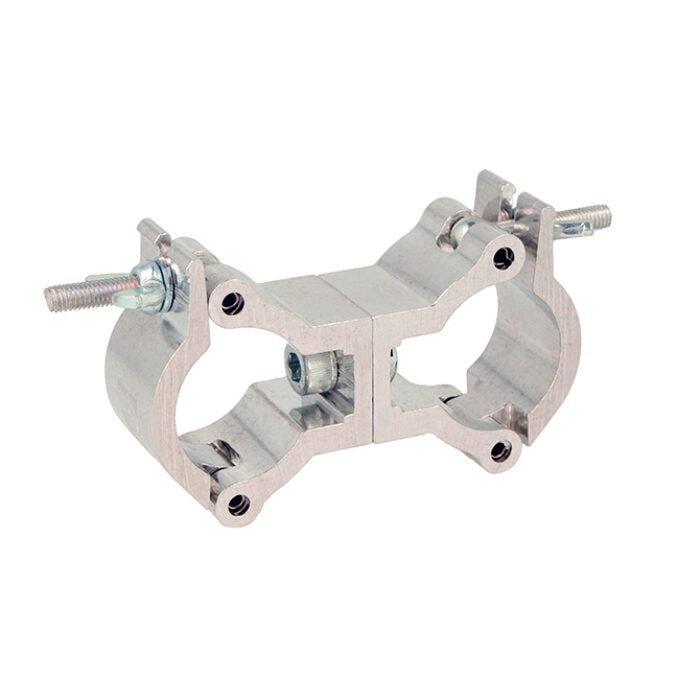

• Available in polished silver or powder coated black finish

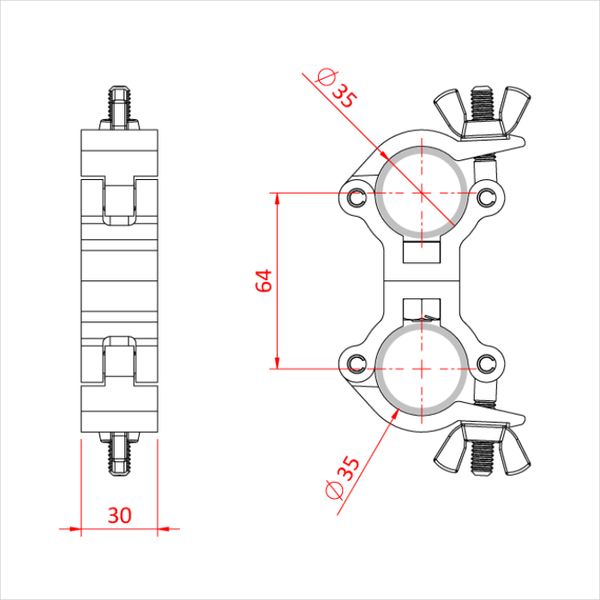

Specifications:

• WLL: 100Kg
• Tube Diameter: 35mm (1.38")
• Clamp Width: 30mm (1.18")
• Tube Centres: 64mm (2.52")
• Material: High tensile extruded aluminium

References:

• Doughty T58910-T5891001 Product Range
• Ideal for decorative and non-load bearing trussing
• Trusted by professionals in theatre, events, and exhibitions
