Doughty 35mm Atom Hook Clamp
The Atom Hook Clamp Coupler is manufactured from high tensile Aluminium Extrusion and supplied with a Wing Nut and Bolt Fixing. Easy grip handle for user-friendly operation. Suited to individual requirements. Also, it can be attached to round tubes or truss chords and suspend equipment and luminaries. Widely applicable in the theatre, film, TV and photographic industries.

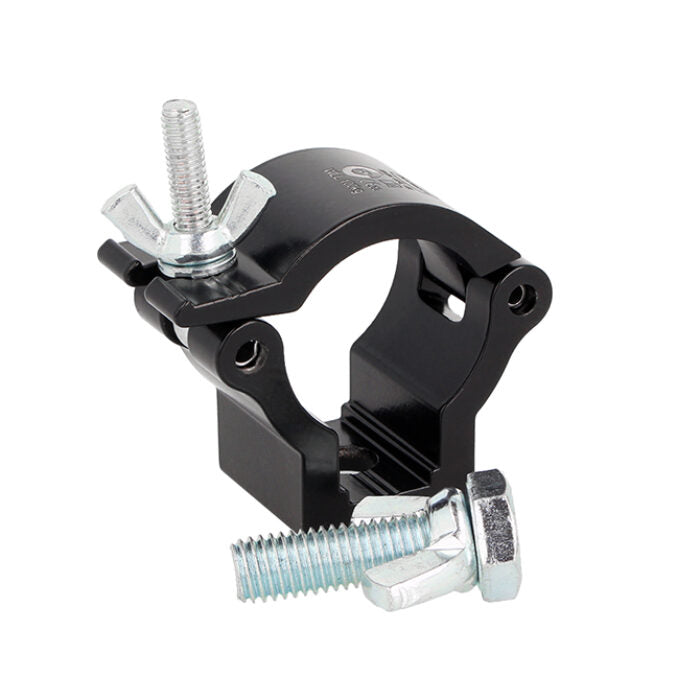

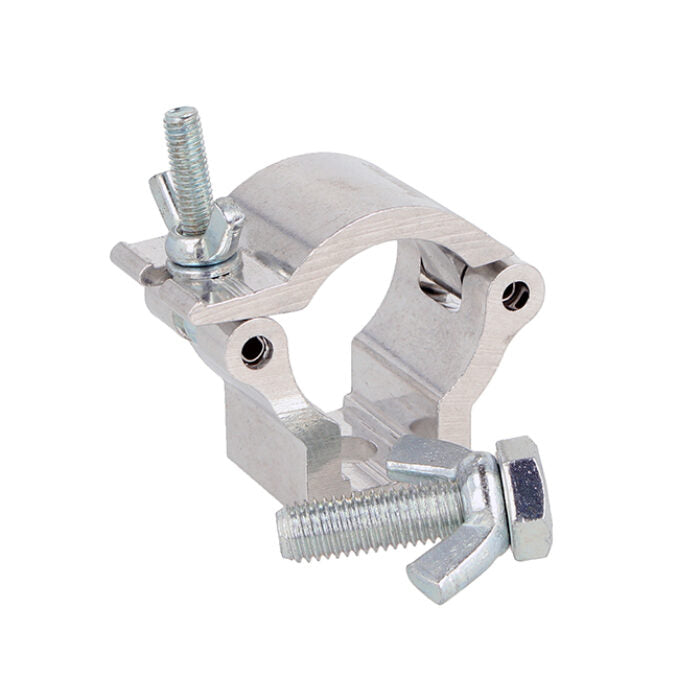

A high tensile extruded aluminium clamp that is suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M8 or M10 nut or bolt head and supplied with an M10 X 30 bolt and wing nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- Constructed from high tensile extruded aluminium
- Compatible with 35mm (1.38″) diameter tubes
- Slotted to hold captive an M8 or M10 nut or bolt head
- Supplied with an M10 X 30 bolt and wing nut
- Available in polished silver or powder coated black finish

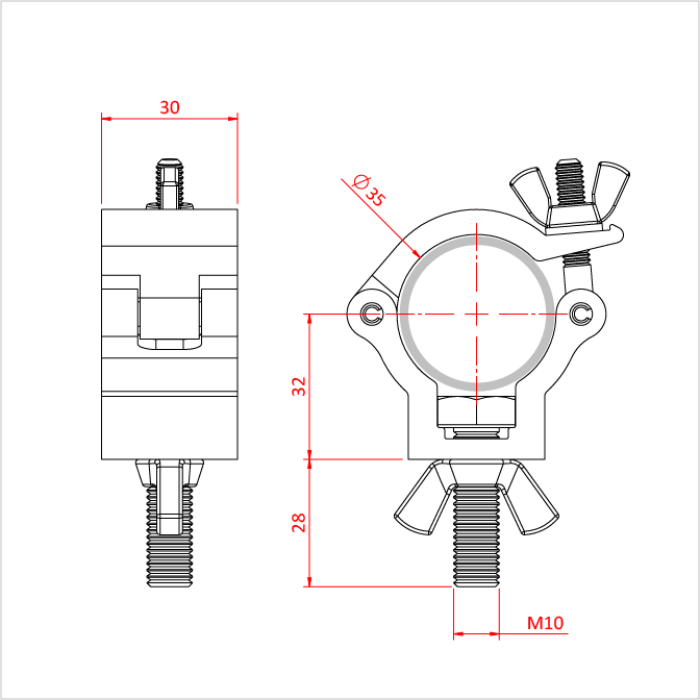

Specifications:
- WLL: 100Kg
- Tube Diameter: 35mm (1.38")
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Finish Options: Polished silver or powder coated black
References:
- Doughty Engineering
- Part Number: T58927 / T5892701
