Doughty Atom Hook Clamp
A high tensile extruded aluminium clamp that is suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M6 nut or bolt head and supplied with an M6 X 30 bolt and wing nut.
Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- Constructed from high tensile extruded aluminium
- Compatible with 32mm (1.25″) diameter tubes
- Slotted to hold captive an M6 nut or bolt head
- Supplied with M6 X 30 bolt and wing nut

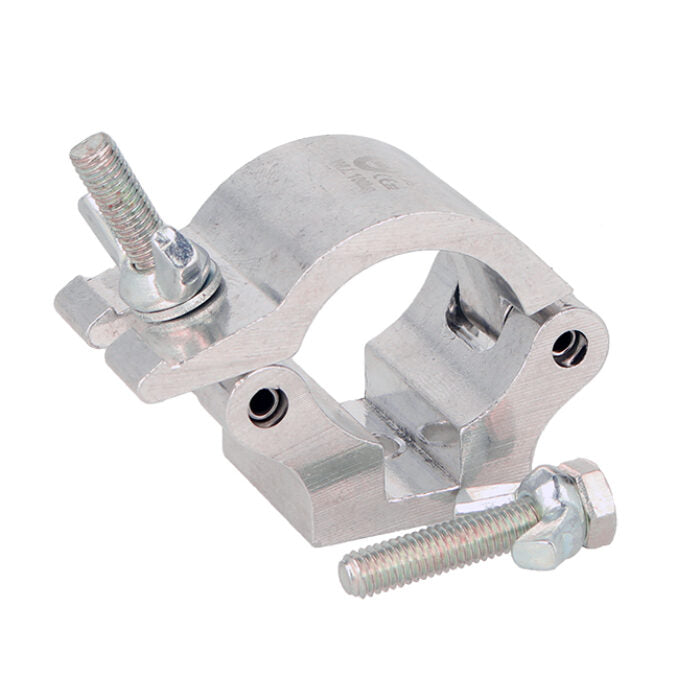

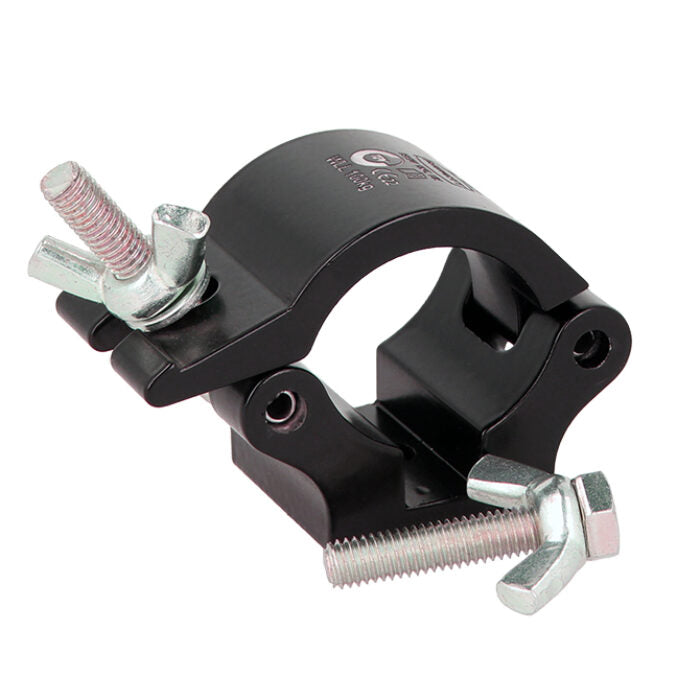

- Available in polished silver or powder coated black finish

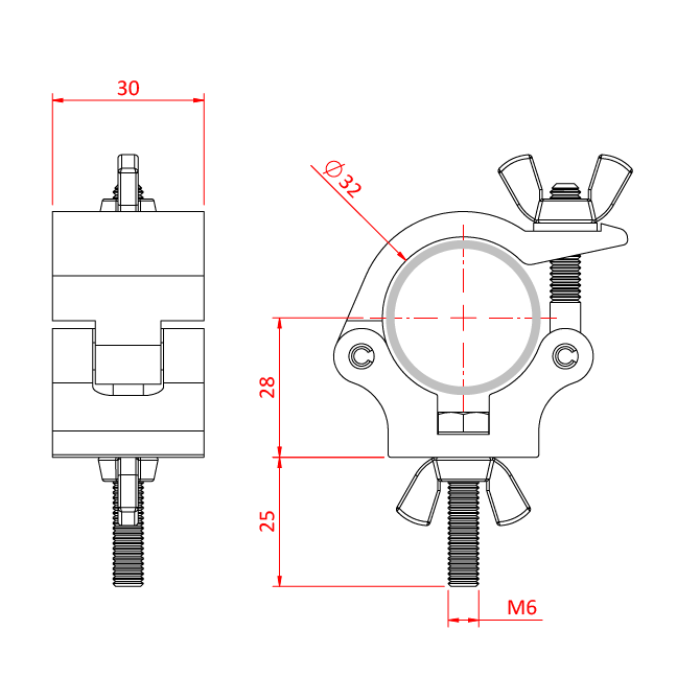

Specifications:
- WLL: 100Kg
- Tube Diameter: 1¼"-32mm
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Fasteners: M6 X 30 bolt and wing nut included
References:
- Doughty Engineering
- Product Code: T58830 / T5883001
- Data Sheet
