Doughty 32mm Atom Half Coupler

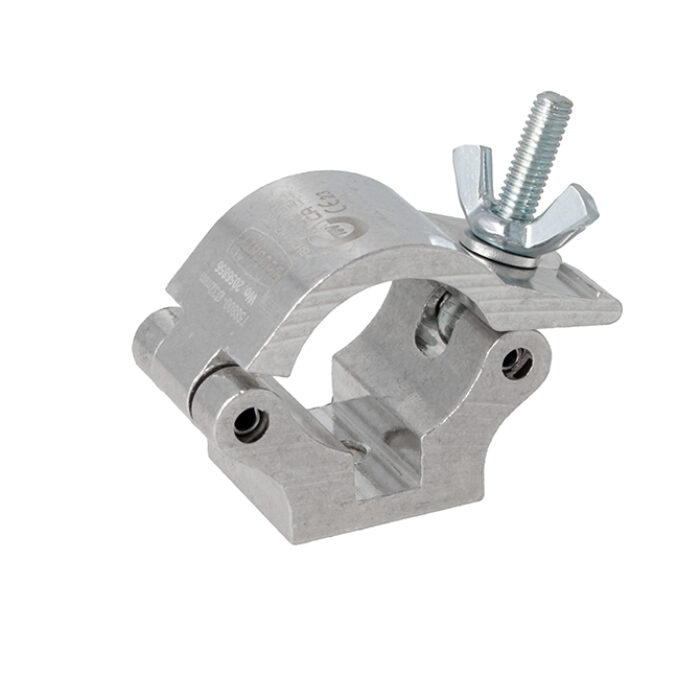

A high tensile extruded aluminium clamp that is suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M6 nut or bolt head. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

Data Sheet



Key Features:

  • High tensile extruded aluminium construction
  • Designed for 32mm (1.25″) diameter tubes
  • Working Load Limit (WLL) of 100Kg
  • Slotted for captive M6 nut or bolt head

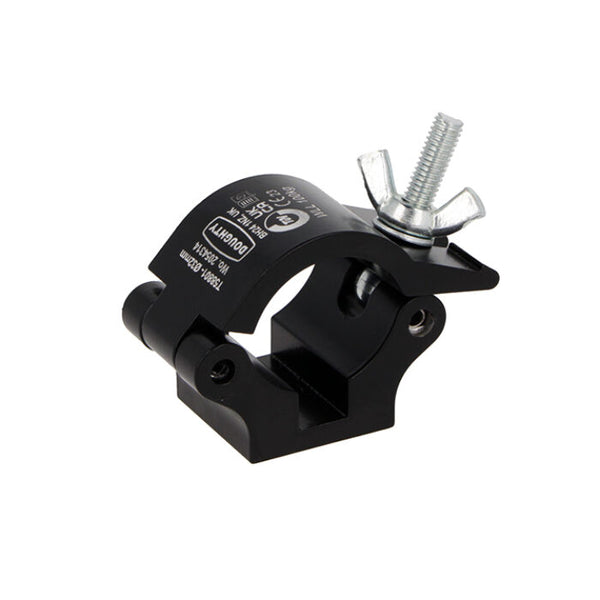

  • Available in polished silver or powder coated black

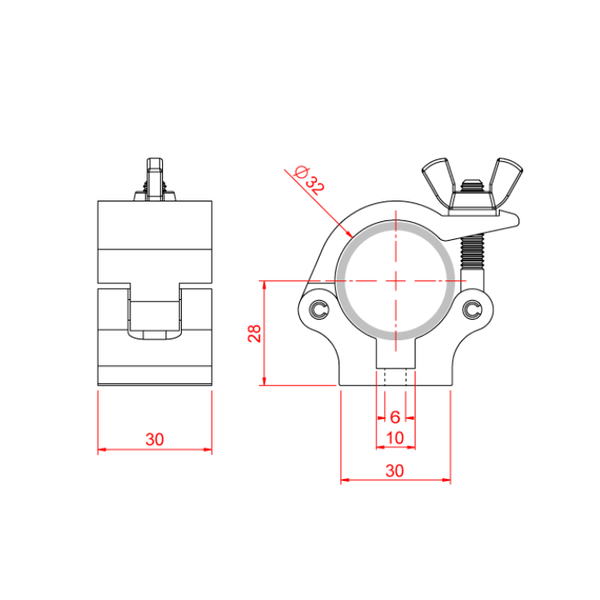

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1¼"-32mm
  • Clamp Width: 30mm (1.18")
  • Material: High tensile extruded aluminium
  • Finish Options: Polished silver or powder coated black



References:

  • Doughty Engineering
  • 32mm Atom Half Coupler Range
  • T58800-T58801 Data Sheet
